Product Data Sheet · Laboratory Equipment

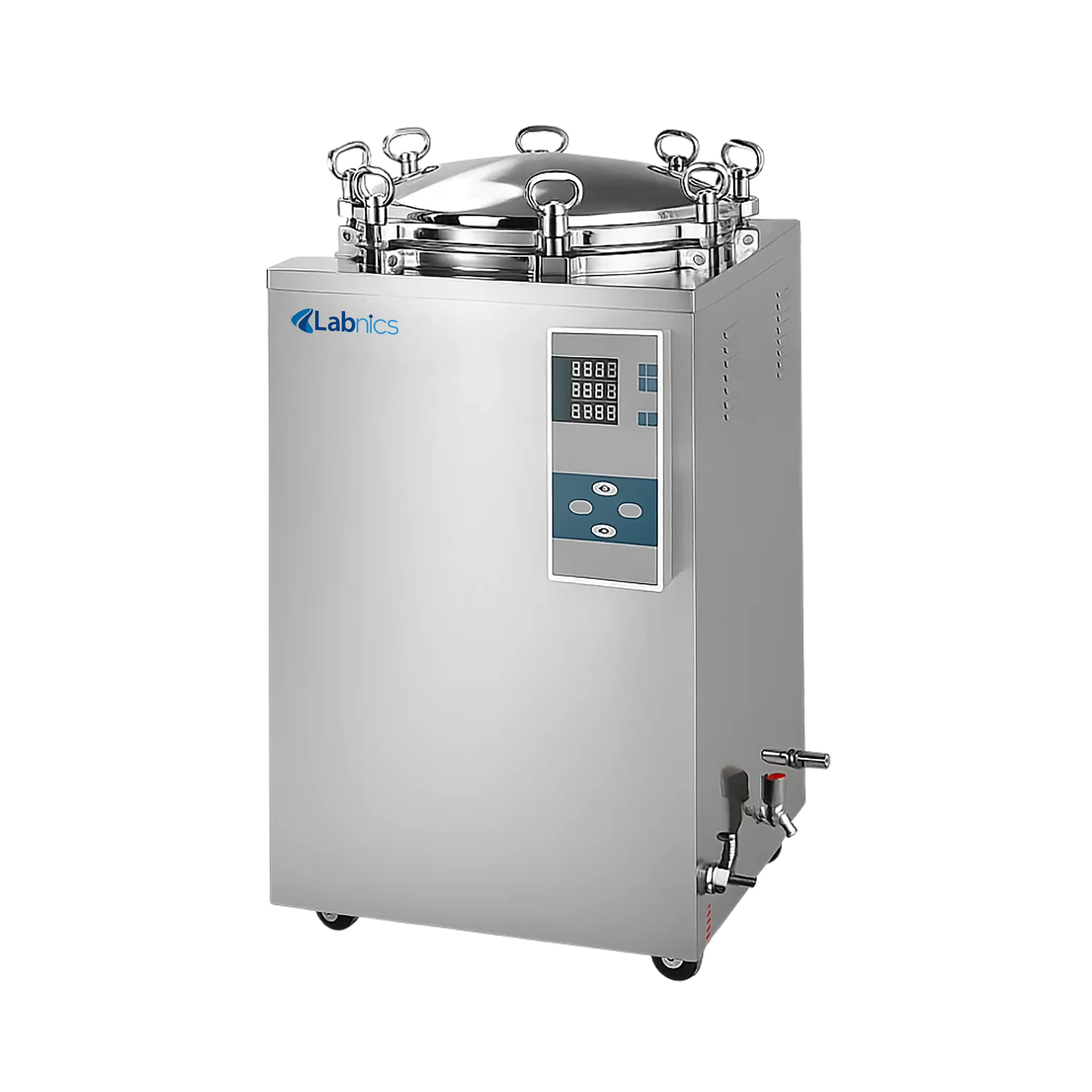

Labnics Vertical Autoclave NVA-102 provides 75 L steam sterilization with 105–134°C adjustable temperature and 0.22 MPa working pressure for controlled thermal processing. The vertical pressure steam sterilizer uses saturated steam under pressure for effective microbial inactivation of laboratory loads. Designed for controlled sterilization cycles, the vertical autoclave machine supports processing of instruments, culture media, labware, and biological waste.
| Capacity | 75 L |
|---|---|
| Body | 304 Stainless Steel |
| Door | Wheel-type, Quick-open door |
| Chamber Volume | ∮ 400 × 600mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Maximum Working Pressure | 0.23MPa |
| Heat Fluctuation | ≤ ± 1°C |
| Timer Range | 0-99 min / 0-99 hour 59 min |
| Temperature adjust range | 105°C - 134°C |
| Power | 4.5 kW/ AC220V, 50Hz |
| Display | LED display |
| Overall Dimension | 560 × 560 × 980 mm |
| Packing Dimension | 650 × 630 × 1150 mm |
| Net Weight | 70 kg |
| Gross Weight | 90 kg |
| Accessories No | Name |
| 1 | Pressure gauge |
| 2 | Water level controller |
| 3 | Heating element |
| 4 | Wire baskets |
| 5 | Silicon gasket for the lid |
| 6 | Soft tube |
| 7 | Spanner |
| 8 | Power cord |
