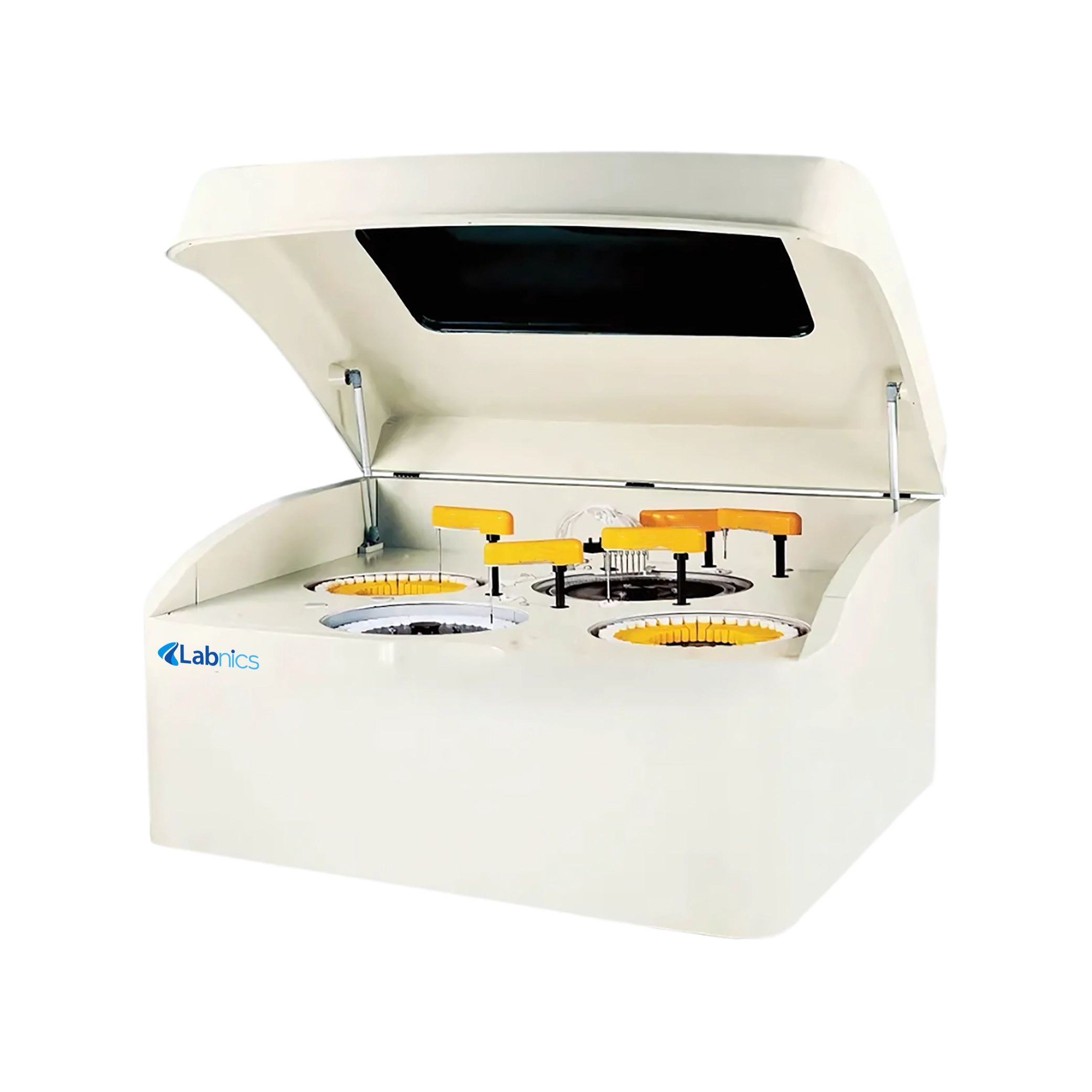

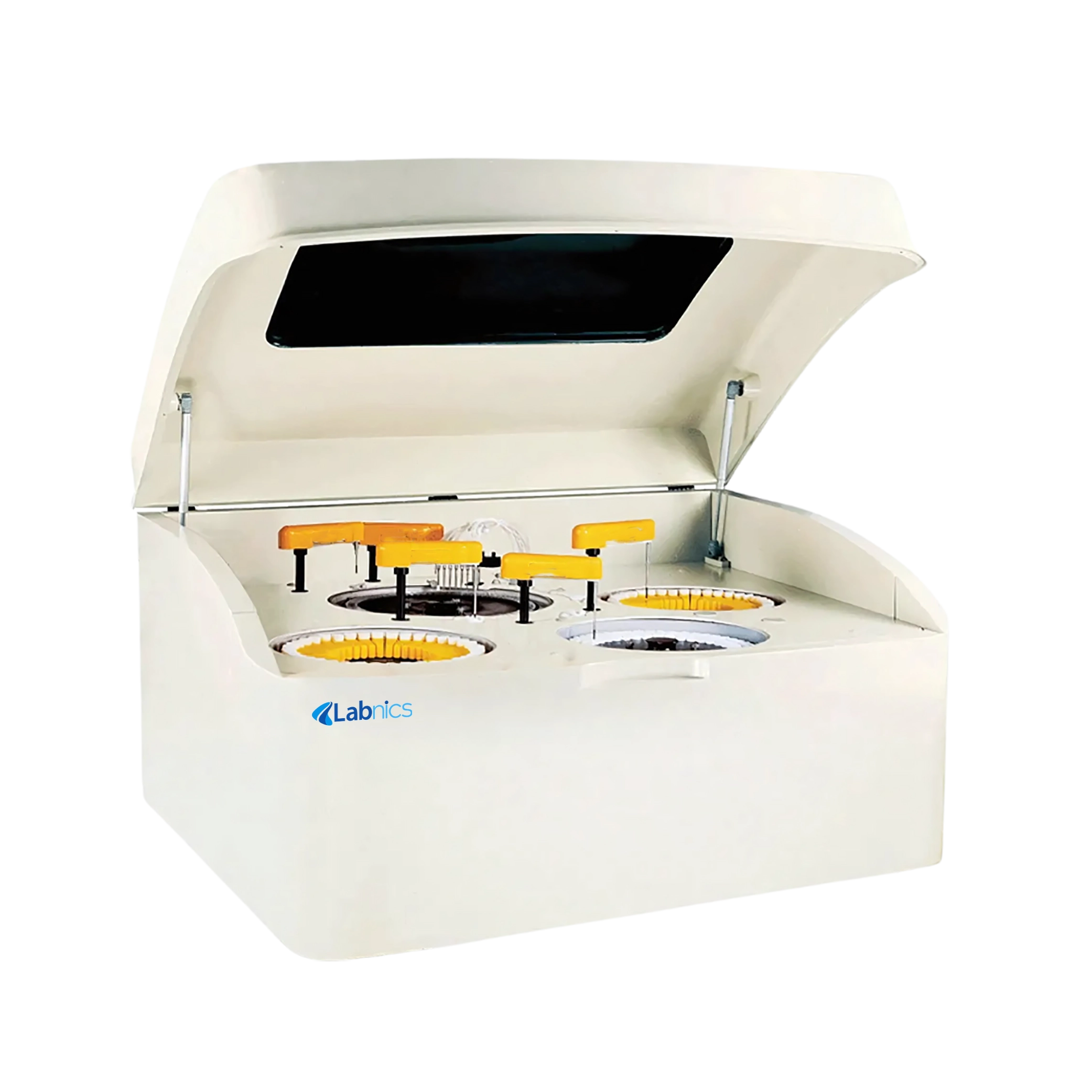

Fully Automatic Chemistry Analyzer NFAC-200

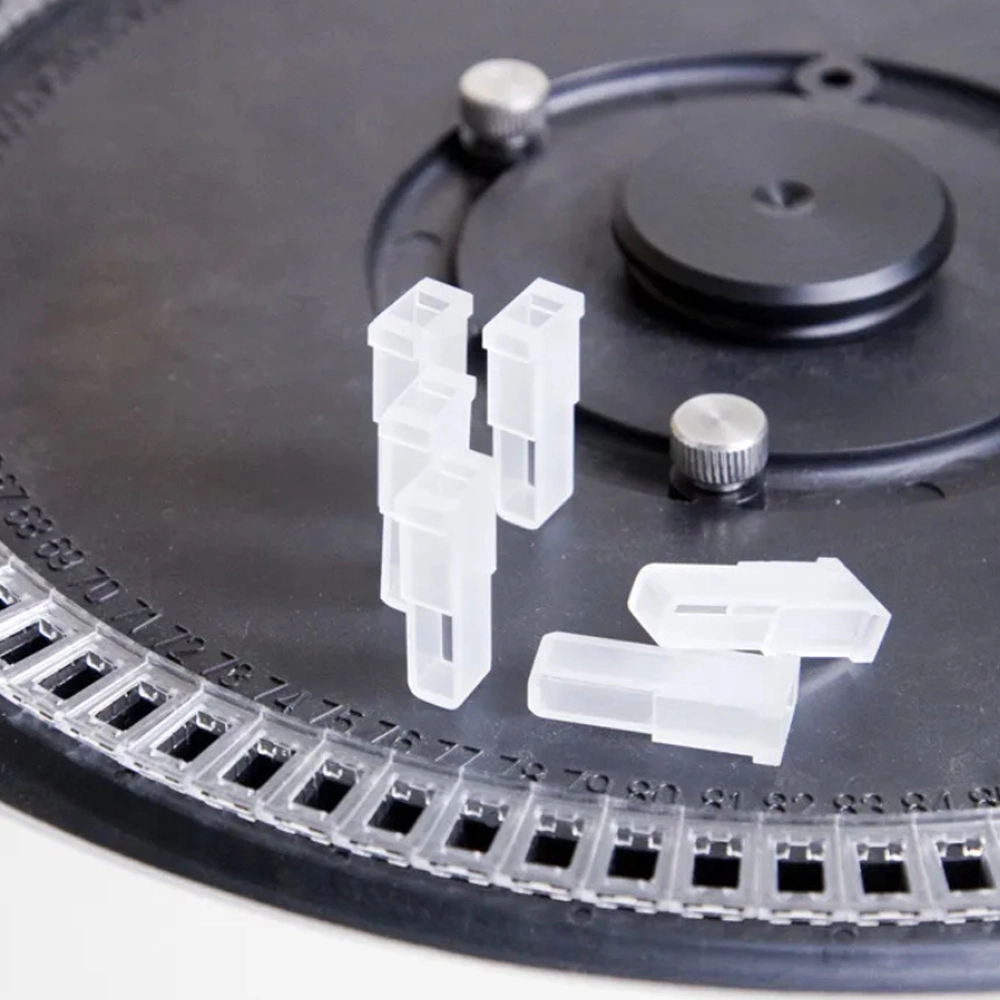

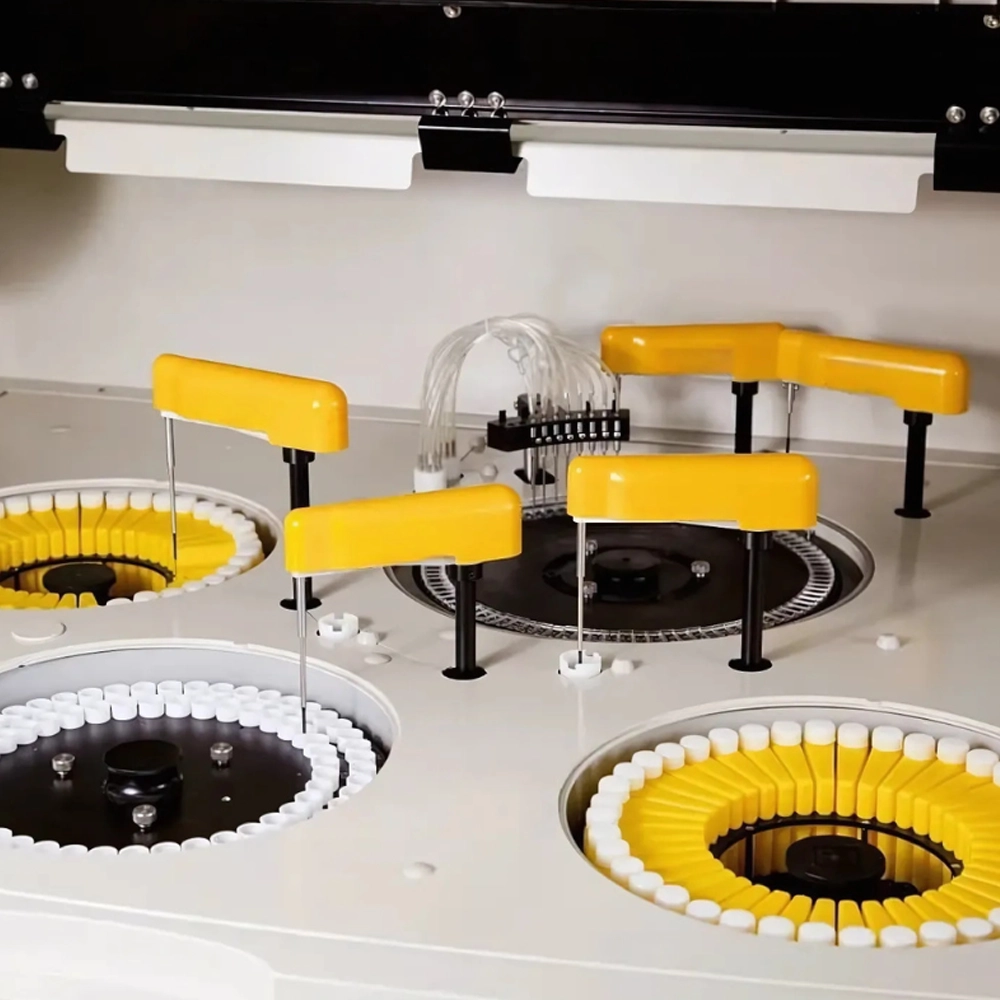

Fully Automatic Chemistry Analyzer NFAC-200 is styled with a liquid level sensor and collision sensor. Includes a direct reading system assay model with random access. The number of assay items varies between 36-80. Integrated with superior quality UV- transmitting plastic cuvette, automatic alarm system and 8-channel automatic washing system for reaction cuvettes. It consists of halogen lamp as a light source. These analyzers are commonly used in conducting assays for various biological fluids.
| Assay | 80 assay |
| Throughput 1 Reagent | 400 tests / h |
| Throughput 2 Reagent | 400 tests / h |
| Throughput with ISE | + 120 tests/h |
| Sample position | 80 |
| Sample Volume | 1 ̴ 100 µL , 0.1 µL / step |
| Reagent position | 2 x 40 |
| Reagent volume |
R1 : 1 ̴ 400 µL , 1 µL / step R2: 1 ̴ 400 µL, 1 µL / step |
| Reaction time | 0 ̴ 999 seconds |
| Cuvette washing | 8 channels automatic washing system for reaction cuvettes |
| Wavelength | 340 ̴ 810 nm |
| Absorbance resolution | 0.0001 A |
| Absorbance accuracy | ± 0.0003A (0 ̴ 2.5 A) |
| Repeatability | ≤ 2 % |
| System | Windows XP or Vista; Windows 7 |
| Power supply | 220 V / 50 Hz or 110 V / 60 Hz (optional) |
| Dimension | 1000 x 850 x 700 mm |
| Weight | 137 kgs |
Used for the analysis of various biological components and reagents in fields such as pathology, medical microbiology, and research purposes.
| Measuring volumes | 450 µL to 800 µL |
| Incubator | 20 incubating positions |
| Wavelength | 340 nm /405 nm /492 nm /510 nm /546 nm /578 nm /620 nm, 2 more filters available on request |
| Wavelength accuracy | ± 2 nm |
| Measuring volumes | 451 µL to 800 µL |
| Incubator | None |
| Wavelength | 340 nm /405 nm /492 nm /510 nm /546 nm /578 nm /620 nm, 2 more filters available on request |
| Wavelength accuracy | ± 2 nm |
| Measuring System | Measuring Range: 0 to 3.500 OD Method: End Point, Fixed Time, Rate etc. Photometric linearity: ±2% (0 to 2.500 OD) Photometric accuracy: ±2% (0 to 2.500 OD) Drift <0.005 OD |
| Photometric System | Light source: 6 V, 10 W long life halogen lamp Filters: 304 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 2 open filter positions Wavelength Accuracy: ±2 nm |
| Thermostatic Control | Temperature: RT, 25˚C, 30˚C, 37˚C Precision: ±0.1˚C |
| Reading Cuvette | Quartz Cuvette; Both Cell and Direct reading cuvette |
