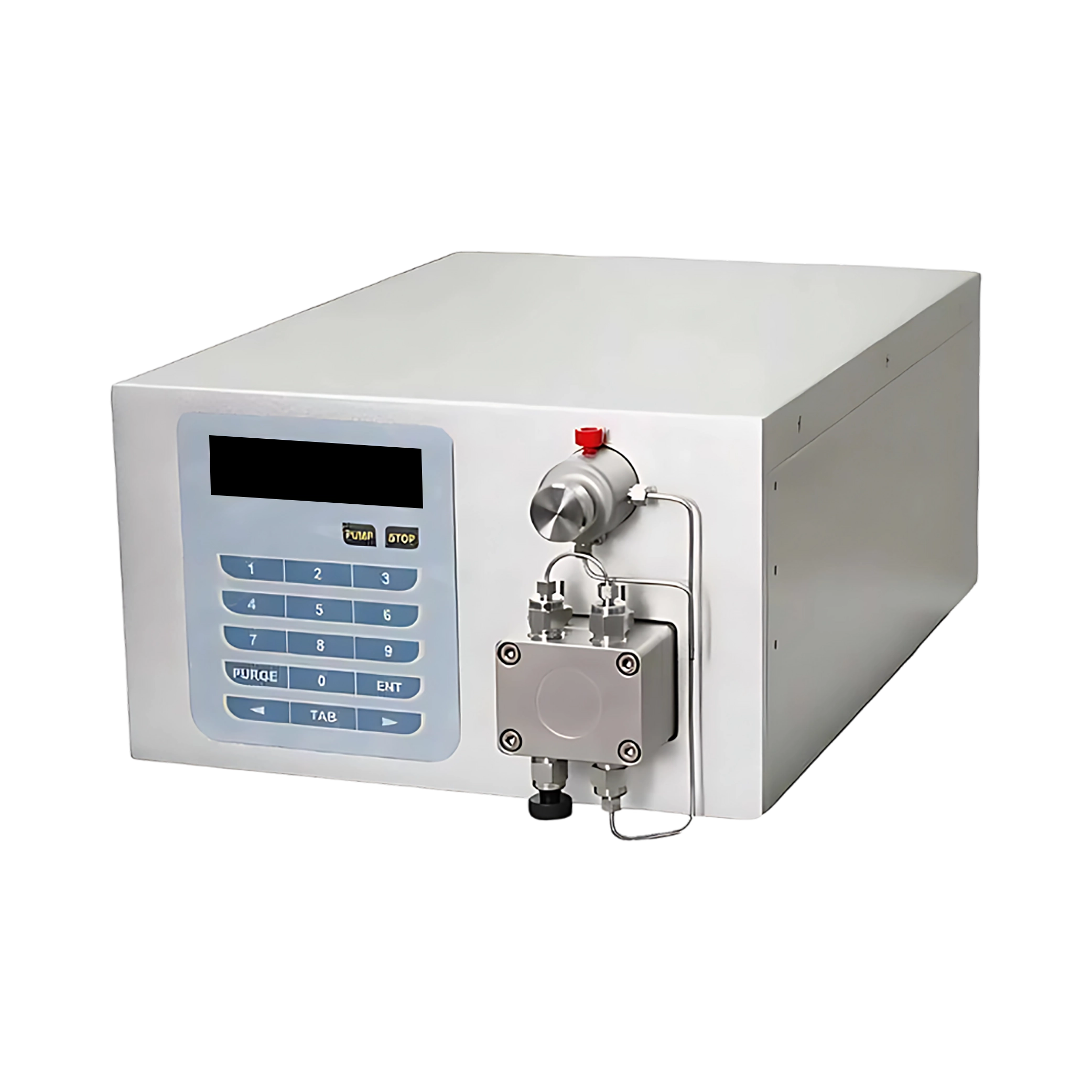

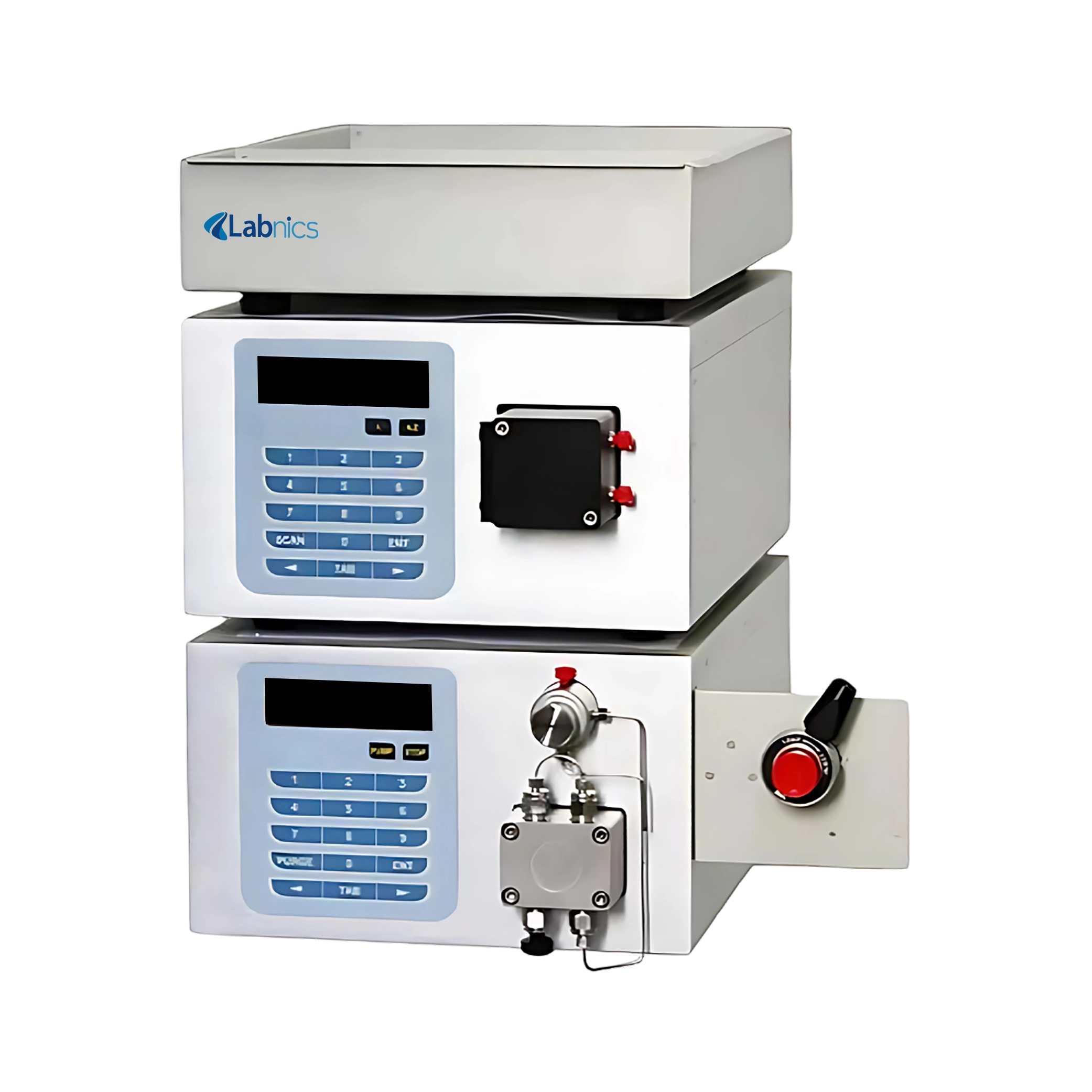

High-performance Liquid chromatography NHLC-100 is a gradient pump liquid chromatography system. It involves a superior high-pressure pump that aids in the accurate solvent delivery with high-precision and low-fluctuation. The UV detector assembly enhances stronger detection capabilities of the system. This leads to efficient separation of the desired pharmaceutical compound and obtains high operation reliability for extended time intervals.
Specifications
| High pressure pump | 2 |
| Column | C18 |
| Column dimension | 250cm×4.6cm |
| Injection valve | 6-way ,7725i |
| Flow rate range | 0.001-9.999mL/min |
| Flow rate accuracy | ≤±0.5% (1mL/min, water, room temperature) |
| Flow rate precision | RSD≤0.08% (1mL/min, water, room temperature) |
| Pressure range | ≤42MPa |

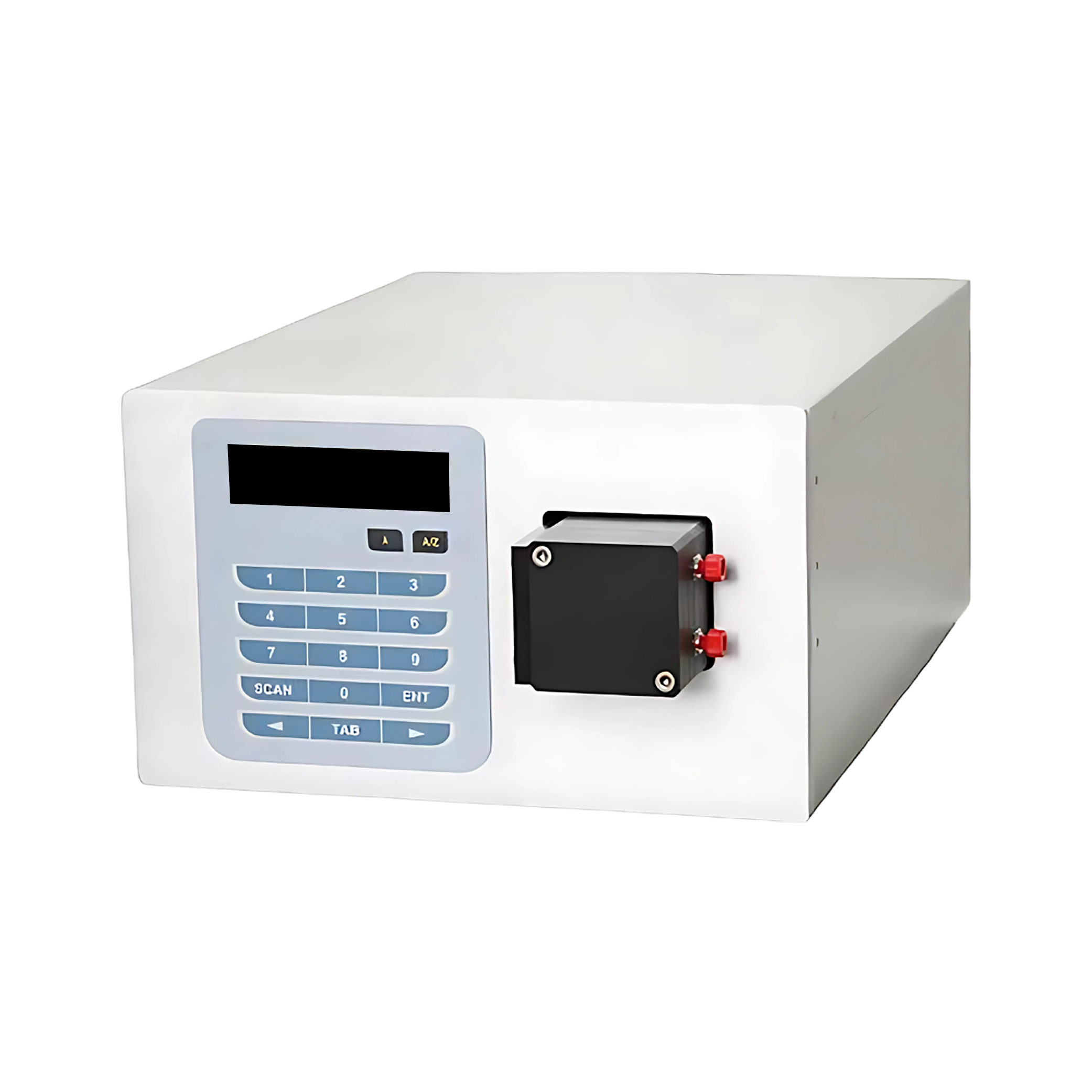

| Detector | UV |
| Lamp | Deuterium lamp |
| Wavelength range | 190-700nm |
| Baseline noise | ≤8×10-6AU |
| Baseline drift | ≤1×10-4AU/h |
| Detection Limit | 4×10-9 g/ml (Naphthalene/methyl alcohol solvent) |
| Wavelength accuracy | ±1nm |
| Software | EasyChrom Chromstation |
Features
Applications
Optional Accessories
| Accessories No | Name |
| 1 | Autosampler |
| 2 | Column Oven |
Ask Expert
Labnics Isocratic HPLC systems ensure precise solvent delivery with minimal fluctuation. They are equipped with advanced UV detectors for enhanced detection and efficient compound separation. These systems provide reliable operation over extended periods, ideal for continuous use. They feature easily accessible maintenance parts for quick replacements without dismantling. Our units also include a pressure monitoring system that halts the pump if pressure limits are exceeded.
| High pressure pump | 1 |
| Column | C18 |
| Column dimension | 250cm×4.6cm |
Labnics Quaternary HPLCs feature advanced design modules for precise separation and flexible system configurations. They include integrated four-channel vacuum degassers to enhance performance. The units are equipped with monitoring systems that automatically terminate the pumps if the pressure exceeds the pre-set limit. They enable efficient data analysis and management through chromatographic data-processing workstations.
| Quaternary Pump Specifications:- Flow rate Range | 0.001-10.000mL/min, 0.001mL increments |
| Flow accuracy | ≤±0.2% (1.00ml/min, H2O, R.T., 8.5MPa) |
| Flow precision | RSD≤ 0.06% (1.00ml/min, H2O, R.T., 8.5MPa) |
| Quaternary Pump Specifications:- Flow rate Range | 0.001-10.000mL/min, 0.001mL increments |
| Flow accuracy | ≤±0.2% (1.00ml/min, H2O, R.T., 8.5MPa) |
| Flow precision | RSD≤ 0.06% (1.00ml/min, H2O, R.T., 8.5MPa) |
| Quaternary Pump Specifications:- Flow rate Range | 0.001-10.000mL/min, 0.001mL increments |
| Flow accuracy | ≤±0.2% (1.00ml/min, H2O, R.T., 8.5MPa) |
| Flow precision | RSD≤ 0.06% (1.00ml/min, H2O, R.T., 8.5MPa) |
Labnics Analytical High-Performance Liquid Chromatography systems are designed for precise and reliable chemical analysis. They ensure accurate results with advanced detection and efficient operational control. Our HPLC units are equipped with UV-Vis and Diode Array Detectors for versatile detection capabilities. They include high-pressure and low-pressure quaternary constant flow pumps for precise flow control. These units feature a real-time pressure display with high and low-pressure warnings to ensure safe and secure operation.
| High-Pressure Constant Flow Pump |
|
||||||||||||||||||
| Low-Pressure Quaternary Constant Flow Pump |
|
||||||||||||||||||
| UV-Vis Detector |
|
