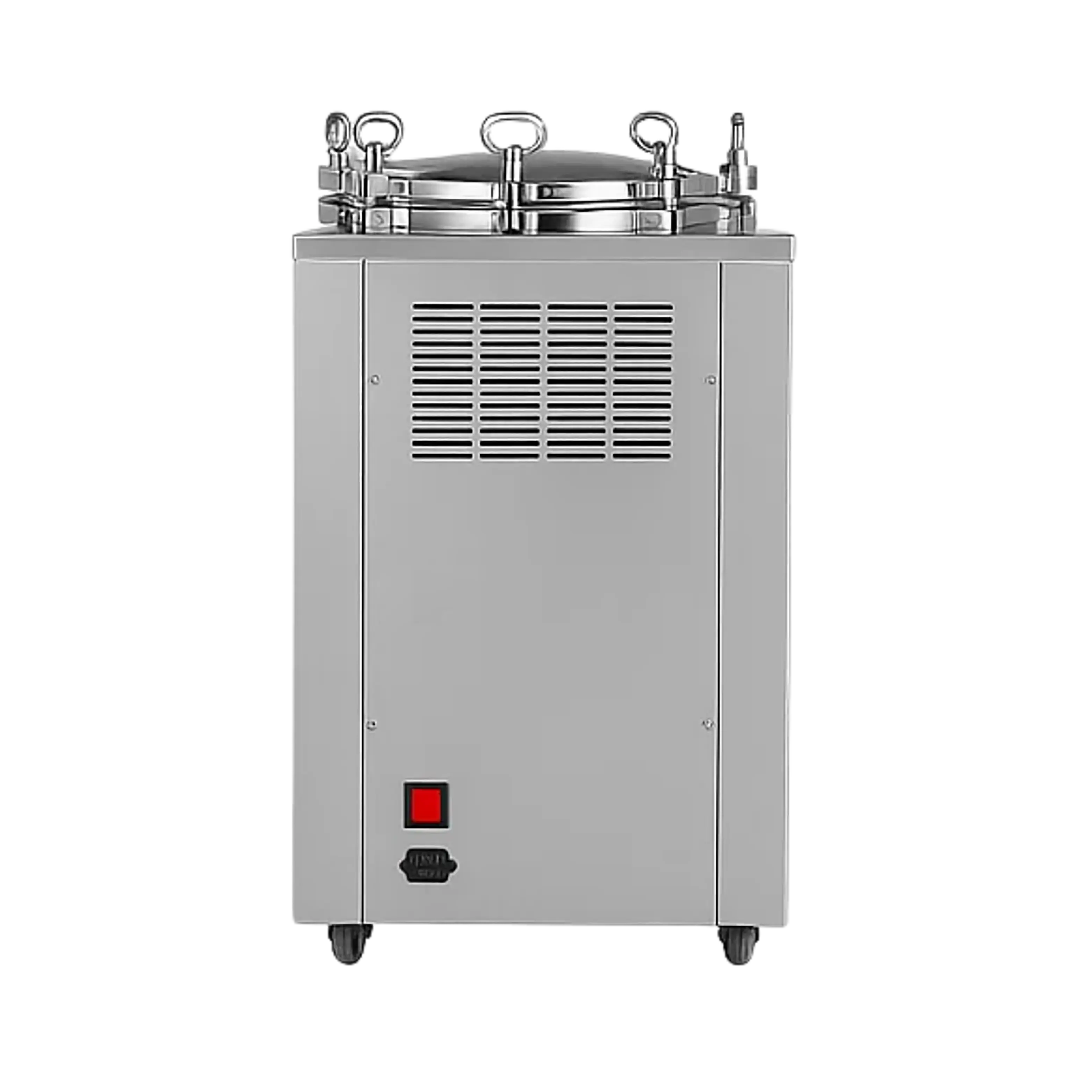

Vertical Autoclave NVA-102
Vertical Autoclave NVA-102 is a vertical pressure steam sterilizer with an automatic pressure-temperature controller. It functions with a combination of high temperatures and pressure to decontaminate and sterilize biological waste, culture media, instruments and lab ware. The whole body is a highly durable stainless steel with an installed electric heater to bring about effective sterilization. It is user-friendly and works with low-energy consumption.
| Capacity | 75 L |
| Body | 304 Stainless Steel |
| Door | Wheel-type, Quick-open door |
| Chamber Volume | ∮ 400 × 600mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Maximum Working Pressure | 0.23MPa |
| Heat Fluctuation | ≤ ± 1°C |
| Timer Range | 0-99 min / 0-99 hour 59 min |
| Temperature adjust range | 105°C - 134°C |
| Power | 4.5 kW/ AC220V, 50Hz |
| Display | LED display |
| Overall Dimension | 560 × 560 × 980 mm |
| Packing Dimension | 650 × 630 × 1150 mm |
| Net Weight | 70 kg |
| Gross Weight | 90 kg |
Employed for sterilization in microbiological, pharmaceutical, clinical and hospital labs.
| Accessories No | Name |
| 1 | Pressure gauge |
| 2 | Water level controller |
| 3 | Heating element |
| 4 | Wire baskets |
| 5 | Silicon gasket for the lid |
| 6 | Soft tube |
| 6 | Spanner |
| 6 | Power cord |
| Capacity | 150 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 440 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 200 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 515 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 280 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 600 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 400 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1100 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 500 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1300 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 150 L |
| Body | Stainless Steel |
| Type | Pressure Steam Sterilization |
| Chamber Volume | Φ 440 × 1000 mm |
| Capacity | 20 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 420 mm |
| Capacity | 24 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 520 mm |
| Capacity | 35 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 300 × 500 mm |
| Capacity | 50 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 340 × 550 mm |
| Capacity | 45L |
| Working Temperature | 134℃ |
| Working Pressure | 0.22 Mpa |
| Maximum Temperature | 139℃ |
| Capacity | 8L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 12L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 18L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 23L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 18 L |
| Chamber Volume | ∮ 280 × 260 mm |
| Working Pressure | 0.14 - 0.16 Mpa |
| Working Temperature | 126 °C |
| Capacity | 24 L |
| Chamber Volume | ∮ 280 × 390 mm |
| Working Pressure | 0.14 - 0.16 Mpa |
| Working Temperature | 126 °C |
| Chamber volume | 6 L |
| Sterilization temperature | 115 ℃ to 135 ℃ (Selectable) |
| Ambient temperature | 5 to 40 ℃ |
| Working pressure | 42 kPa to 212 kPa |
| Capacity | 250 L |
| Working Pressure | 0.00 to 3.50 bar |
| Working Temperature | 100℃ to 135℃ |
| Holding Time | 05 min to 30 min |
