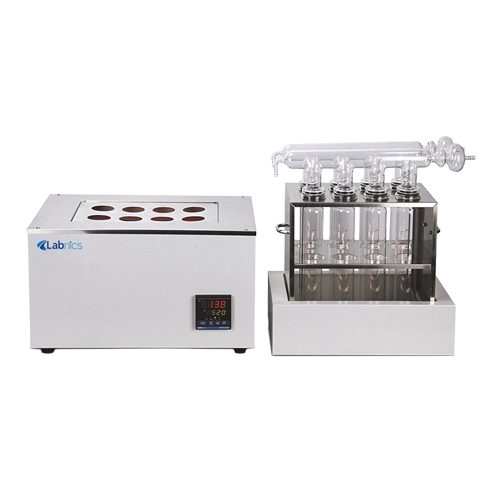

Infrared Digestion Furnace NIDF-100

Infrared Digestion Furnace NIDF-100 offers a sample capacity of 4. Featuring a Type C quartz infrared heating system that utilizes primary radiation and secondary conduction to achieve rapid and efficient digestion. It includes a branched digital display with precise temperature control for stable operation. Moreover, the plastic-sprayed steel body and stainless-steel working area provide excellent durability and corrosion resistance. Our Infrared Digestion Furnace efficiently processes over 90% of protein-containing and 60% of nitrogen-containing samples, ensuring reliable performance for laboratory applications.

---

$1,775.00

Buy Now Catalog

Specifications

Sample capacity	4
Heating module	Infrared
Control mode	Digital
Temperature range	Room temperature - 600 °C
Temperature accuracy	± 1 °C
Measurement rang	0.1mgN to 200mgN
Digestion time	60 min to 90 min per batch
Digestion tube volume	300 ml
Power consumption	2.5 kW
Power supply	AC 110/220 V, 50/60 Hz
Dimension	600 × 310 × 300 mm
Packaging Dimension	700 × 410 × 370 mm
Net weight	10Kg
Gross weight	12.7 Kg

Features

• Rapid heating & cooling
• Graphite conduction for uniform digestion
• Multi-stage temperature control
• Durable construction
• Plastic-sprayed steel body
• Stainless steel workspace
• Double-layer insulation
• Air & Aluminium silicate
• Multiple protections
• Various sample capacities available

Applications

• Infrared Digestion Furnace NIDF-100 is suitable for the digestion of protein- and nitrogen-containing samples in Kjeldahl and related laboratory analyses.

Optional Accessories

Tube
