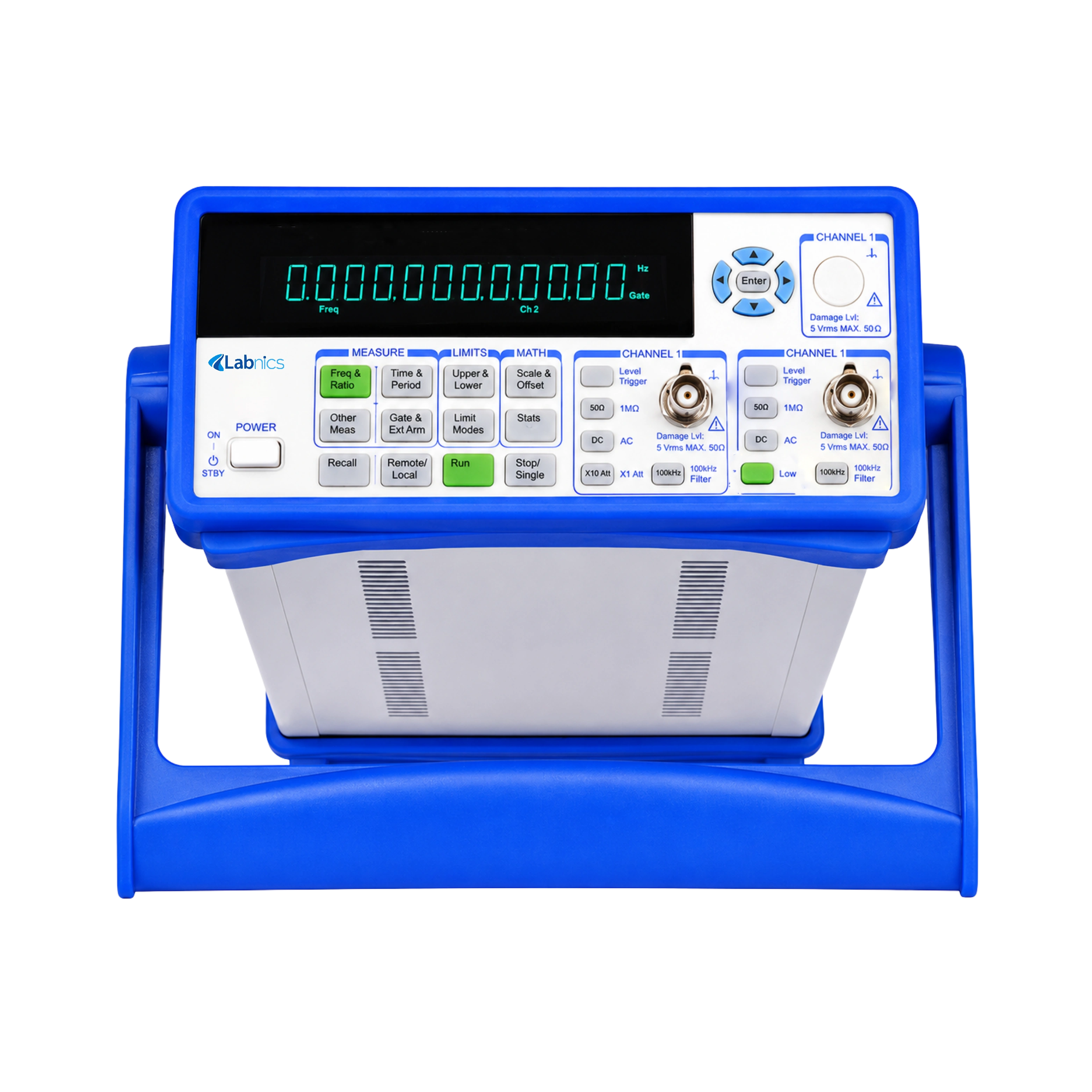

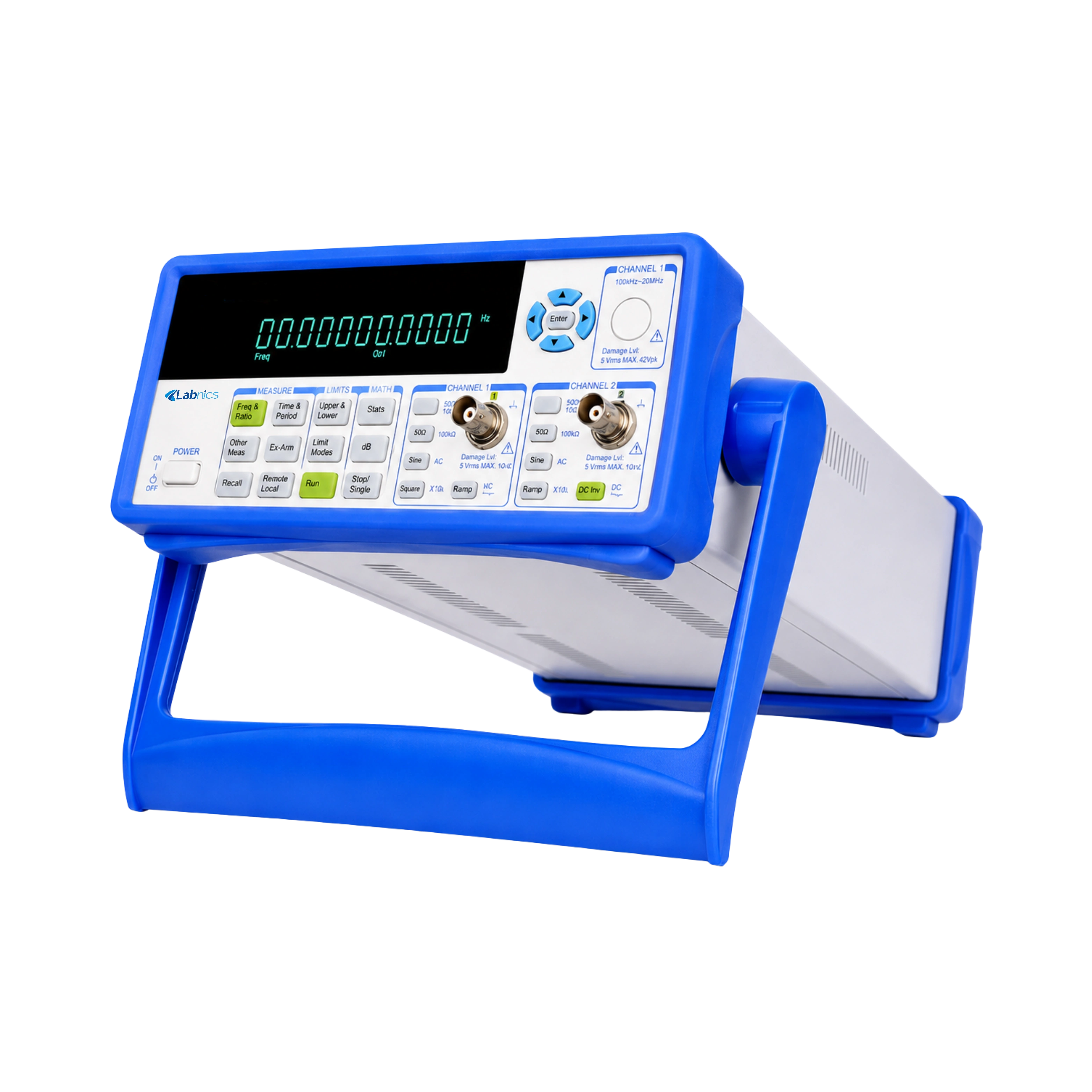

Timer Calibrator NTC-100 features multiple channels, allowing it to cover a broad frequency range from low to high frequencies. It measures periods ranging from 5 ns to 1000 s and time intervals from 10 ns to 10,000 s. It includes standard deviation and Allan variance analysis for accurate frequency measurement. Our unit features a display resolution of 8 digits per second for clear and precise readings.
$2,275.00
Specifications
| Frequency Range | CH1: 0.001Hz to 200MHz CH2: 0.001Hz to 200MHz CH3:3GH2/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz/40GHz (option) |
| Measuring parameters | Frequency, Period, Duty Cycle, Frequency Ratio, Totalize, Phase Difference, Pulse Width, Time Interval and DCV |
| Display Resolution | 8 digits/s |
| Period | 5ns to 1000s |
| Time Interval Range | 10ns to 10000s |
| Pulse Width | 30ns to 5000s |
| Duty Cycle | 1% to 99% |
| Totalize | 0 to 1×10¹³ |
| Phase Difference | 1⁰ to 359⁰ |
| Input Dynamic Range | 50mVrms to 1.0Vrms (Sine) 150mVPP to 4.5VPP(Pulse) |
| Input Impedance | 1MΩ//35pF or 50Ω |
| Input Attenuation | ×1 or ×10 |
| Trigger Level | -5.000V to +5.000V |
| Statistics Calculation | Multi-average, Max., Min., PPM, SD, Allan Variance |
| Standard Time Base Accuracy | 5 × 10ˉ⁸ |
| Daily Aging | 1 × 10ˉ⁸ /day |
| Yearly Aging | 5 × 10⁷/year |
| Power | AC220V (10%) or AC110V (10%), 50Hz (5%) or 60Hz (5%) |
| Dimension | 256 × 106 × 386 mm |
| Weight | 3.7 kg |
Features
Applications
Standard Accessories
Power Cord × 1 pcOptional Accessories
High-stability crystal oscillatorChannel Options
| Channel Options | Frequency Range | Dynamic Range |
| 3.0GHz | 100MHz to 3GHz | -27dBm to +19dBm (100MHz to 2.6GHz)
-15dBm to +19dBm (2.6GHz to 3.0GHz) |
| 3.0GHz | 100MHz to 3GHz | -27dBm to +19dBm |
| 6.5GHz | 200MHz to 6.5GHz | -15dBm to +13dBm |
| 12.4GHz | 6.5GHz to 12.4GHz | -15dBm to +10dBm |
| 16.0GHz | 6.5GHz to 16GHz | -15dBm to +10dBm |
| 20.0GHz | 200MHz to 20GHz | -10dBm to +10dBm (200MHz to 350MHz) |
| 20.0GHz | 200MHz to 20GHz | -15dBm to +10dBm (350MHz to 18GHz) |
| 20.0GHz | 200MHz to 20GHz | -10dBm to +10dBm (18GHz to 20GHz) |
| 26.5GHz | 10GHz to 26.5GHz | -20dBm to +10dBm (10GHz to 20GHz) |
| 26.5GHz | 10GHz to 26.5GHz | -15dBm to +10dBm (20GHz to 24GHz) |
| 26.5GHz | 10GHz to 26.5GHz | -10dBm to +10dBm (24GHz to 26.5GHz) |
| 40GHz | 18GHz to 40GHz | -29dBm to +15dBm (18GHz to 20GHz) |
| 40GHz | 18GHz to 40GHz | -20dBm to +15dBm (20GHz to 28GHz) |
| 40GHz | 18GHz to 40GHz | -29dBm to +10dBm (28GHz to 37GHz) |
| 40GHz | 18GHz to 40GHz | -20dBm to +13dBm (37GHz to 40GHz) |
Ask Expert
Labnics Timer Calibrator provides multiple channels to cover a broad frequency range effectively. They feature a clear display for accurate and precise measurements, ensuring easy readability. These calibrators offer advanced statistical calculations for reliable and accurate analysis. Our units are capable of storing multiple status groups for quick and easy access. They offer reliable connectivity for easy data transfer and integration with external devices.
