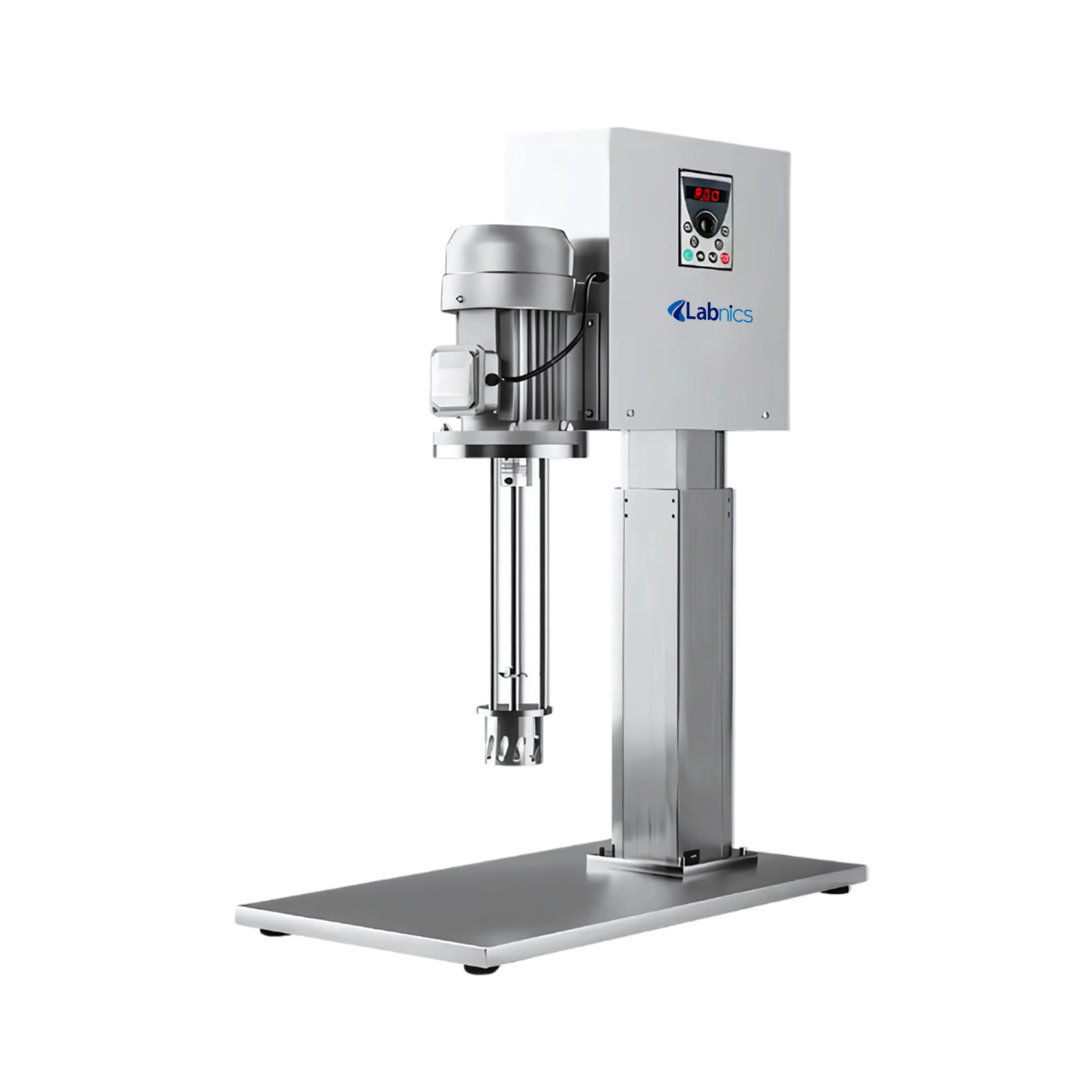

Homogenizer Mixer NLM-100 offers a maximum working capacity of approximately 10 liters. It features a homogenizer head with a diameter of Φ64mm for efficient and thorough mixing. This unit ensures a narrow particle size distribution and high uniformity, delivering consistent results. It supports 0 to 10000 rpm digital speed control for precise and adjustable operation. Our mixer includes a display for accurate monitoring and easy control of the process.
$3,613.00
Specifications
| Max working capacity | ~10L |
| Control method | Manual/Electrical lifting, Manual button, VFD control |
| Type | High shear homogenizing |
| Homogenizer head | Φ64mm Rotor & stator clearance: 0.5mm Bushing: Teflon |
| Homogenizer length | 300mm |
| Homogenizer height | 30 to 330mm |
| Lifting stroke | 300mm |
| Material contact with product | Metal: SS316L |
| Other materials | SUS304, Aluminum 7075 |
| Stand | Aluminum 7075 |
| Motor | 0.75kW |
| Vfd/inverter | 0 to 10000 rpm digital control, FD display, 90 × 180 × 150mm, SUS304 cover, Rubber foot |
| Height | 700mm |
| Power supply | AC220V, 50Hz |
| Product dimension | 420 × 320 × 650mm |
| Packing dimension | 450 × 330 × 700mm |
| Net weight | 30 kg |
| Gross weight | 40 kg |
Features
Applications
Standard Accessories
Main body
Homogenizing head
Wiring plug
Optional Accessories
Additional head
Ask Expert
Labnics Homogenizer Mixer efficiently processes and evenly distributes particles in liquids. Our units operate with low noise, ensuring a quiet working environment. They feature working heads designed for durability and long-lasting performance. Our mixers feature a control knob for adjusting stirring operations for precise control. They are equipped with high-resolution displays for easy monitoring of settings and performance.
