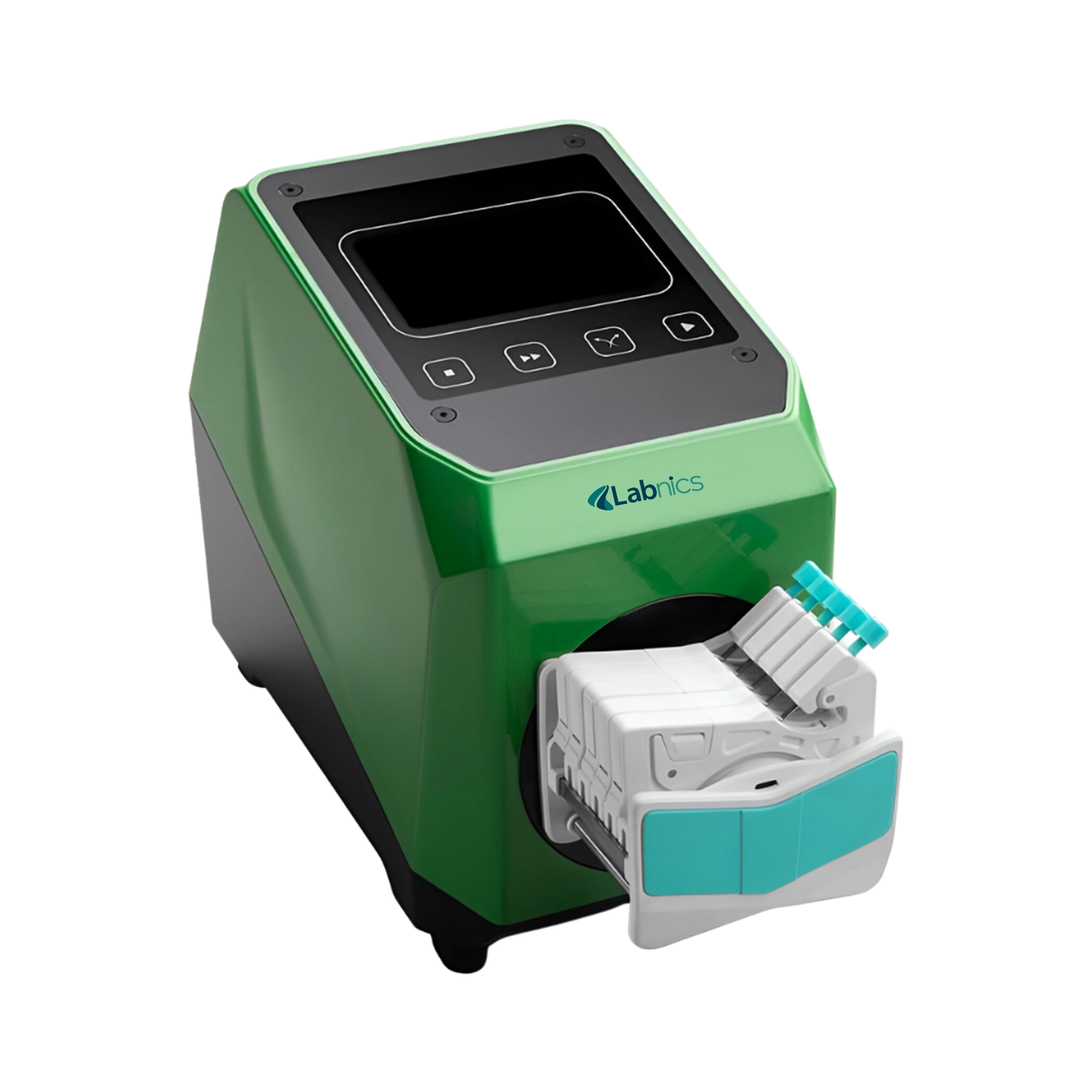

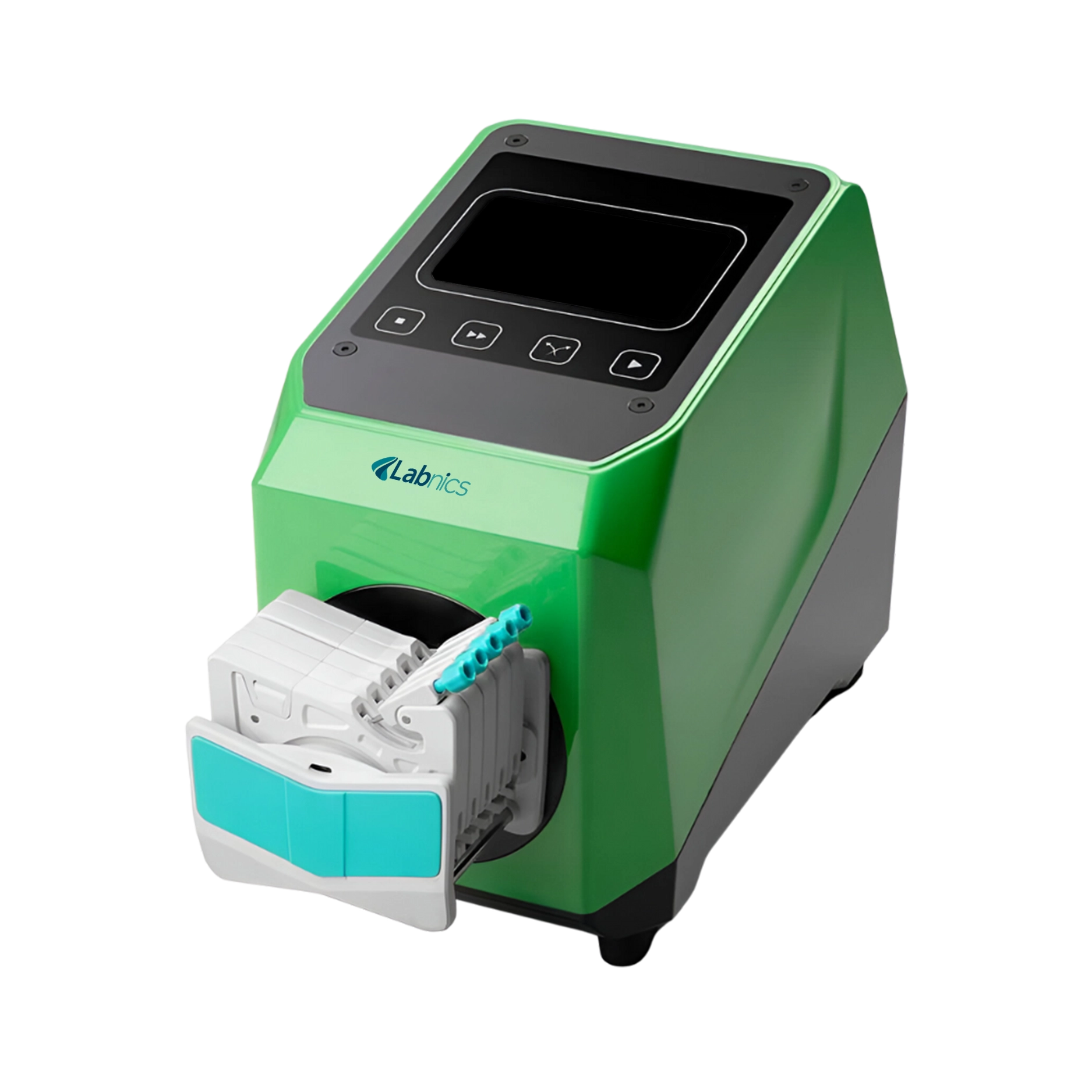

Intelligent Flow Peristaltic Pump NIFPP-500

---

$5,013.00

Buy Now Catalog

Specifications

Flow Range	0.0002 to 65 mL/min
Speed Range	0.1 to 150 RPM
Speed Resolution	0.01 RPM
Dispensing Volume	0.1 to 9999 mL
Dispensing Time	0.1 to 9999s
Pause Time	0.5 to 9999s
Repeat Number	1 to 9999 times
Motor type	stepper motor
Display	4.3-inch industrial grade
Temperature Range	0 to 40°C
Relative Humidity	<100%
Working Mode	Transferring mode and dispensing mode
Transferring Mode	Continuous operation at set flow rate and speed
Dispensing Mode	Dispensing: set volume, time, repeat numbers, pause time Dispensing: set volume, flow rate, repeat numbers, pause time Speed dispensing: set speed (RPM), time, repeat numbers, pause time
Control Method	Touch screen, Mechanical keypad, External control signal control, Communication control
Back Suction Angle	0 to 360°
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS485 support MODBUS protocol (RTU mode)
EMC Standard	TEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3
IP Rate	IP66
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
External Control Signal Input	5V to 24V active control, Passive switch control (start/stop)
Signal Output	Open collector output operation status; 4 to 20mA output
Power Consumption	110 W
Power Supply	AC 110 to 220V±10%, 50Hz/60Hz
Dimension	274 × 160 × 221 mm
Weight	6.2 Kg

Features

• Dual circuit isolation
• Three-level permission management
• Compact design
• Multiple external control methods
• Electromagnetic compatibility protection

Applications

• Intelligent Flow Peristaltic Pump NIFPP-500 is used in pharmaceutical, chemical, and food industries for precise, hygienic fluid transfer, ensuring safe and stable operation in critical processes.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc
