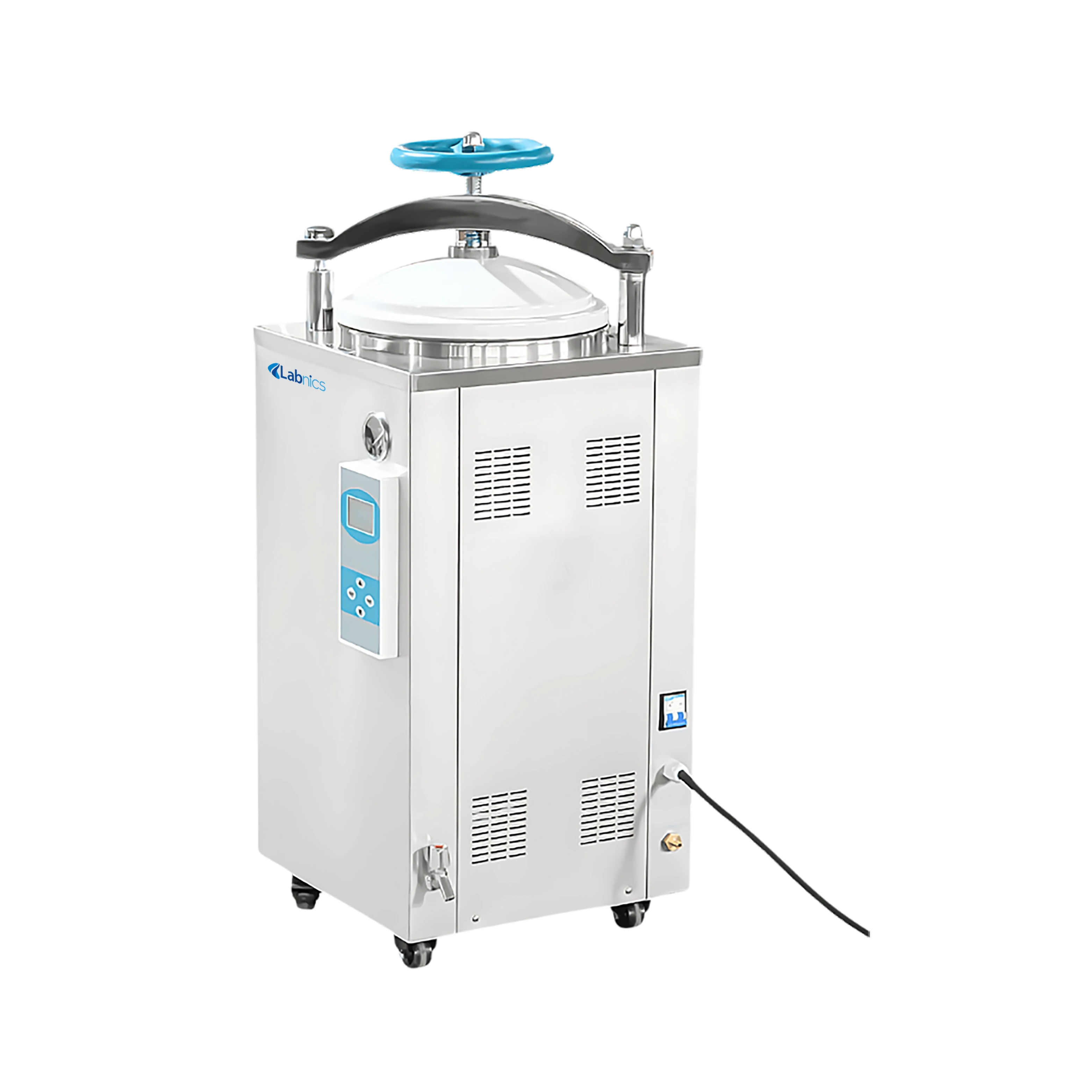

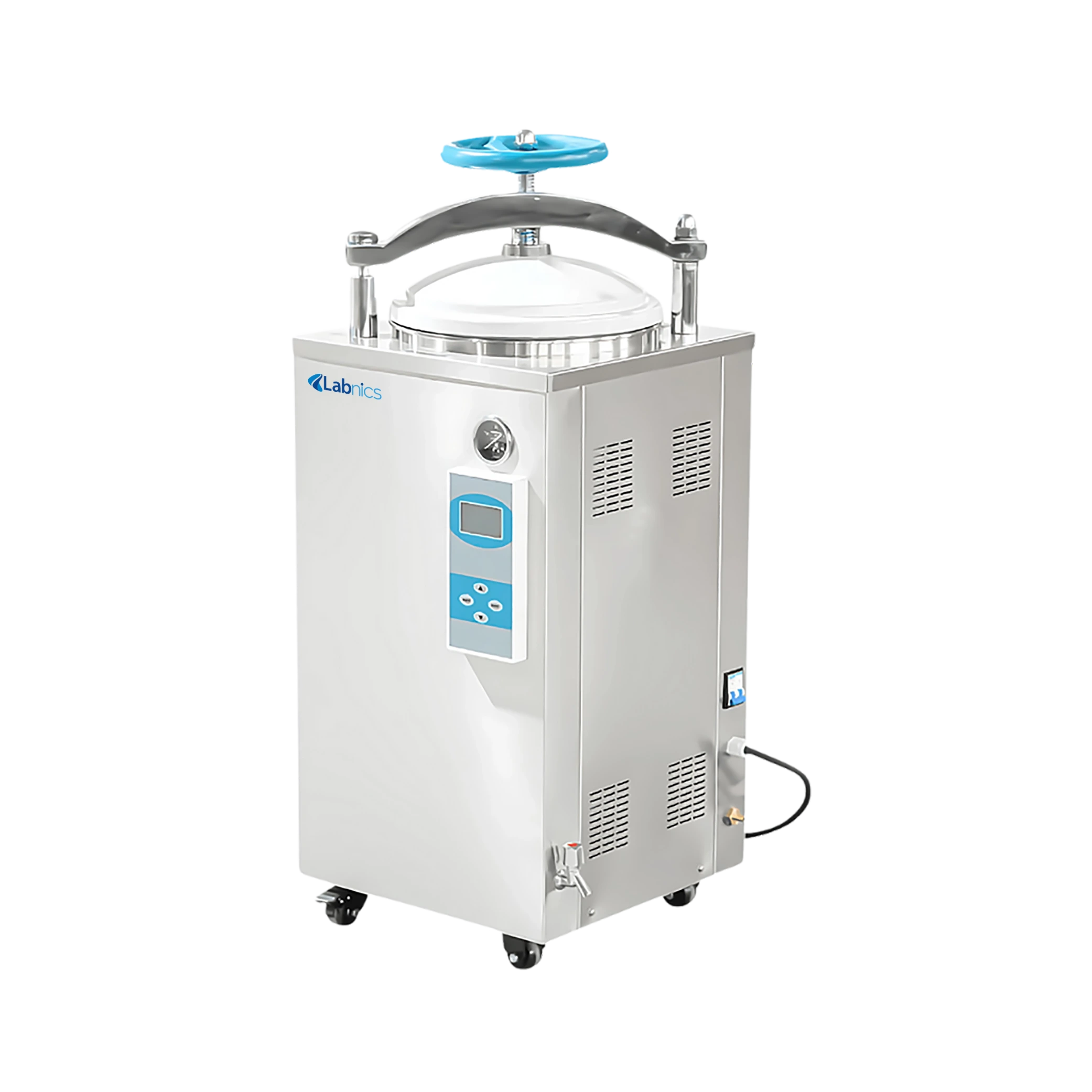

Vertical Autoclave NVA-203

Name: Vertical Autoclave NVA-203
Brand: Labnics.com
SKU: NVA-203
Rating: 4.9 (779 reviews)

Vertical Autoclave NVA-203 features a 100L capacity, making it suitable for large sterilization loads. It operates at a working temperature of 134°C and a pressure of 0.22 MPa. This unit is equipped with two stainless steel sterilizing baskets, allowing for the efficient handling of multiple items. It uses a self-inflating type seal to guarantee a secure door closure and prevent steam leakage. Our vertical autoclave automatically discharges cool air and steam once the cycle is complete, promoting smooth operation.

Catalog

Specifications

Capacity	100L
Chamber volume	440×650mm
Working temperature	134°C
Working pressure	0.22Mpa
Temperature range	105°C to 134°C
Maximum working pressure	0.23Mpa
Heat average	≤±1°C
Timer range	0 to 99min or 0 to 99hour 59min
Display	LCD
Body	Stainless steel
Door	Wheel-type, quick-open door
No. of sterilizing baskets	2 pcs
Sterilizing baskets dimensions	410×250mm/pc
Total CBM	0.56CBM
Power consumption	3×1.5kW
Power supply	AC220V, 50Hz
Overall dimension	580×560×1290mm
Packaging dimension	640×640×1360mm
Gross weight	131kg
Net weight	105kg

Features

LCD digital display
Touch key controls
Water-lacking protection
Quick-open door
Stainless steel body
Adjustable timer range
Built-in safety features

Applications

Vertical Autoclave NVA-203 is used for sterilizing medical, laboratory, and industrial equipment to ensure proper sanitation and safety. It is commonly found in hospitals, research labs, and pharmaceutical industries.

Ask Expert

FAQ for Vertical Autoclave NVA-203

1: Does the Vertical Autoclave have an automatic air and steam discharge system?

Yes, the Vertical Autoclave automatically releases cool air and steam after each cycle. This feature promotes smooth and safe operation, saving time and effort.

2: Is the construction of the Vertical Autoclave NVA-203 durable?

The Vertical Autoclave is built with a full stainless steel body and chamber, offering long-term durability and easy maintenance. This makes it highly resistant to corrosion and ideal for frequent use.

3: What safety features does this Vertical Autoclave NVA-203 offer?

Our Vertical Autoclave comes with built-in safety features like water-lacking protection and a secure self-inflating door seal. The quick-open wheel-type door ensures reliable closure and prevents steam leakage during operation.

4: How easy is it to use and monitor the Vertical Autoclave NVA-203?

The Vertical Autoclave is designed with a user-friendly LCD digital display and touch key controls, allowing clear visibility of the status and simple adjustment of settings. You can easily monitor time, temperature, and cycle progress in real time.

5: Is the door mechanism safe and easy to operate?

The Vertical Autoclave features a wheel-type quick-open door that ensures secure closure during operation and allows fast, convenient access once sterilization is complete.
