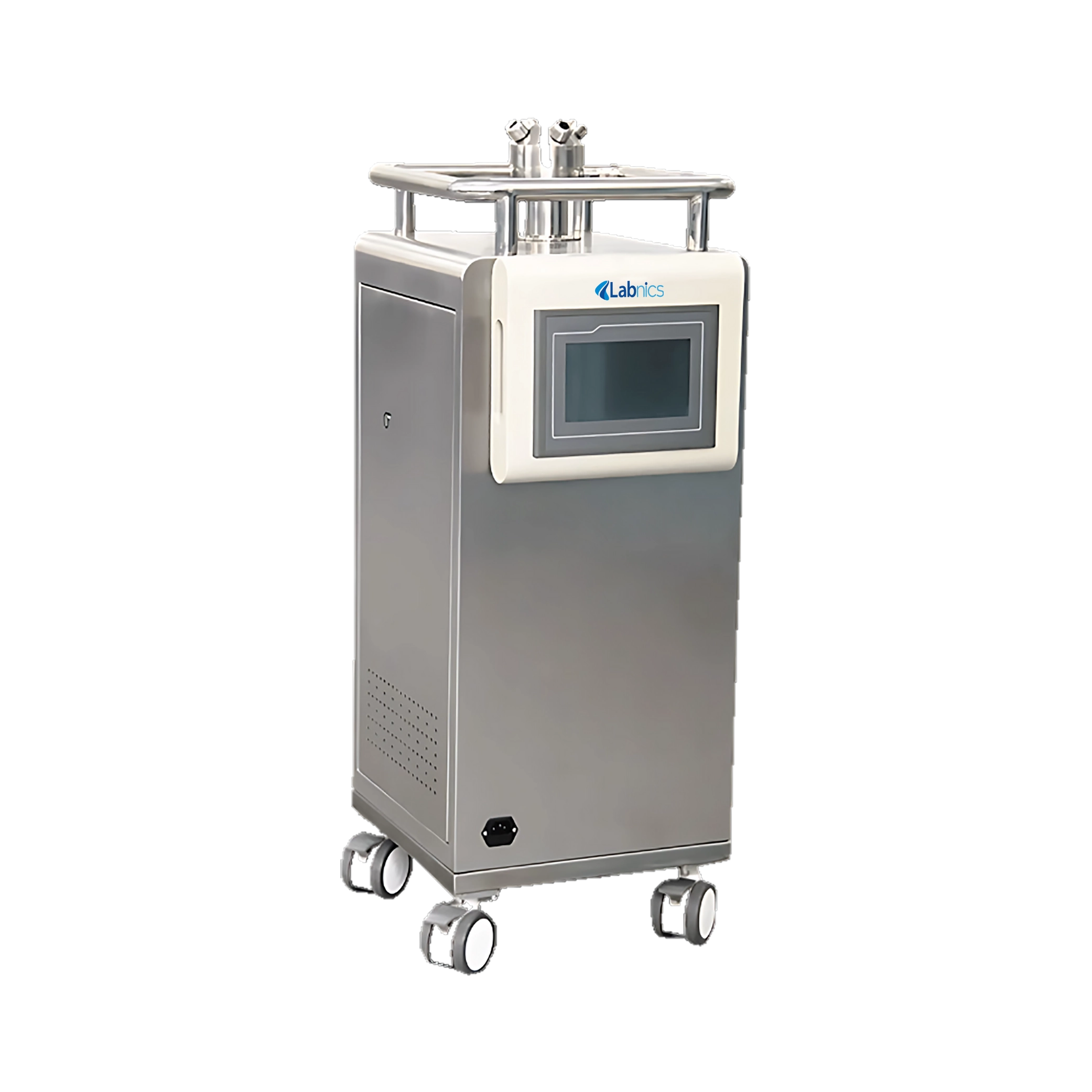

Vapour Hydrogen Peroxide Generator NVHG-101
Vapour Hydrogen Peroxide Generator NVHG-101
Vapour Hydrogen Peroxide Generator NVHG-101 can accommodate a bottle volume of 1000 mL. A corrosion-resistant solenoid valve is incorporated to regulate dosing that offers an injection rate of 1 to 7 g/min. It enables low-temperature sterilization and sterilizes closed spaces effectively. It utilizes high-speed airflow and flash evaporation technology to convert 35% food-grade H₂O₂ liquid into a gaseous state. Our generator is capable of connecting to isolators and BSCs via pipes for sterilization purposes.
Specifications
| Capacity | 1000 mL |
| Vaporization Temperature | ≤ 100℃ |
| Injection Rate | 1 to 7 g/min |
| Airflow for Sterilization | ≥ 20 m³/h |
| Humidity for Dehumidification | 40 to 55% RH |
| Sterilization Space | ≤ 150 m³ |
| Sterilizing Agent | 35% of food-grade hydrogen peroxide solution |
| Dehumidizer | 4A Molecular sieve |
| Sterilizing Ratio | 6-Log reduction rate |
| Control Mode | Split touch screen |
| Humidity | ≤ 65% RH |
| Noise | ≤ 75 dB(A) |
| Power Consumption | Max. 2kW |
| Power Supply | AC 220 V ± 22 V, frequency 50 Hz ± 1 Hz |
| Dimension (W × D × H) | 360 × 360 × 970 mm |
| Weight | 45 kg |
Features
- ✔ Stainless steel casing for effortless cleaning
- ✔ Compact design for easy transportation
- ✔ Features a split touch screen for control
- ✔ Achieves a 6-log reduction rate
- ✔ Certified with CE marking
- ✔ Optional VHPS concentration real-time monitoring
- ✔ Demonstrates good chemical compatibility
Applications
Vapour Hydrogen Peroxide Generator converts liquids into gas for sterilization of closed rooms. It is employed in biological safety labs, hospital wards and ICUs, hospital bacteria control, and clean rooms.
Optional Accessories
Validation protocols (IQ, OQ, Cycle Development)
Portable Sensor
