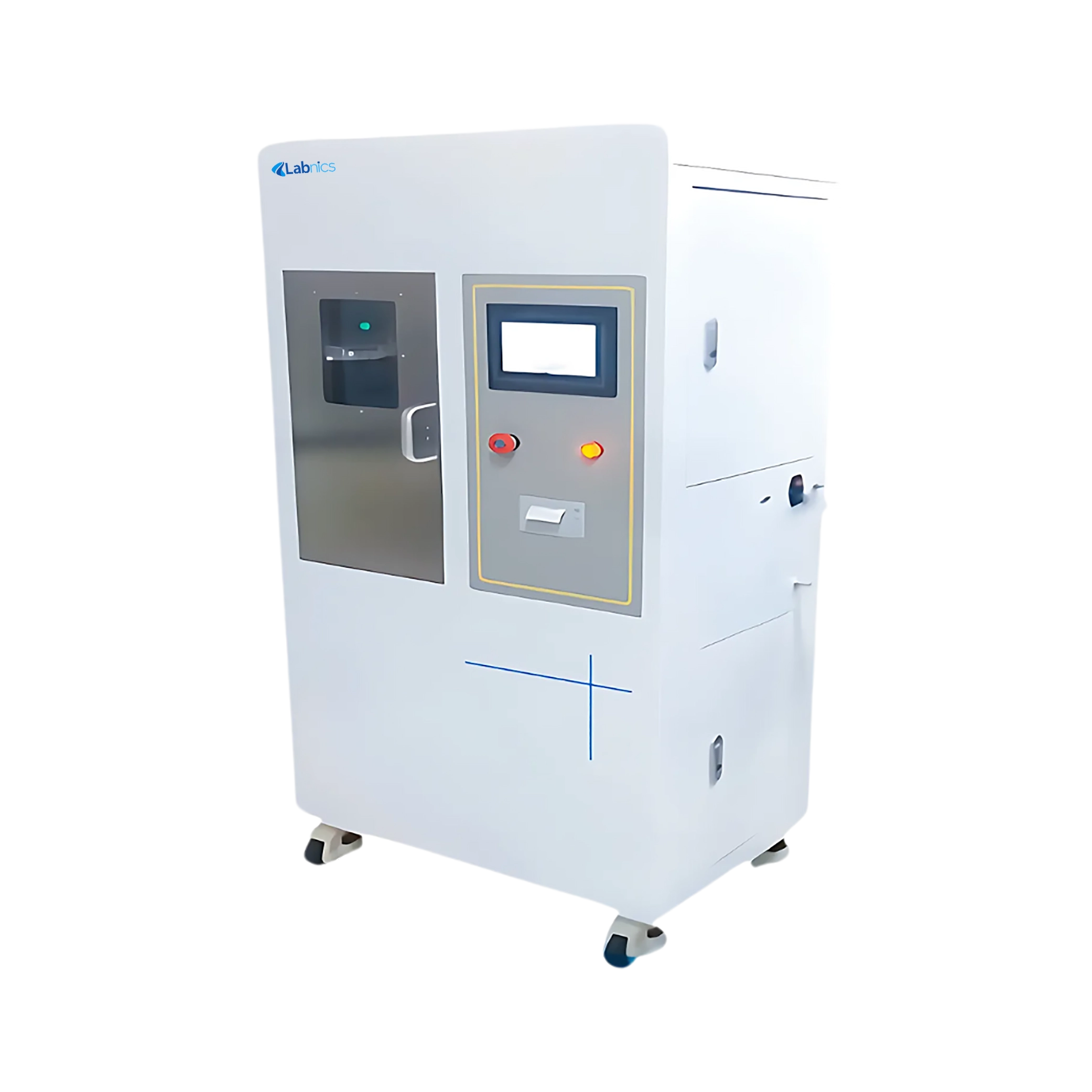

Bottle Burst Tester NBBT-100
Bottle Burst Tester NBBT-100 sensor can accurately measure pressures from 0 to 6 MPa. It operates effectively within a temperature range of 5 to 50°C. It is equipped with a high-quality touch screen with one-button operation for improved functionality. This tester includes glass sheets and water collection boxes for enhanced flexibility. This unit is highly automated, ensuring efficient and operation for enhanced performance.
| Measuring sensor range |
0 to 6Mpa Safe overload 7.2Mpa |
| Comprehensive error | <0.5%FS |
| Display accuracy | 0.0001Mpa |
| Measurable bottlenecks | ∅ 26mm(Support customized fixtures according to bottles) |
| Operating temperature | 5 to 50℃ |
| Linear rate boost | 0.4-0.58±0.1Mpa/s (5.8±1bar/s), adjustable |
| Pressure medium | Water |
| Power consumption | 0.8KW（Built-in leakage protector) |
| Power supply | 220V/50HZ /Single phase |
| Dimensions | 600 × 400 × 1240 mm |
| Weight | 136kg |
Bottle Burst Tester NBBT-100 is used to assess the pressure resistance of bottles by testing their bursting point. It is commonly used in the packaging, beverage, and pharmaceutical industries.
Fixture -φ26mm for the bottle
Labnics Torsion Testing Machine offers a versatile range of torsion load frames to accommodate various testing requirements. They offer a variety of control modes to accommodate different testing requirements and ensure flexibility in analysis. These units offer multiple control modes to accommodate various testing parameters. Our testing machines accommodate specimens of different lengths, ensuring enhanced precision in testing. They feature safety indicators that provide error alerts during testing to ensure safe operation.
| Measuring Range (Nm) | 1000 |
| Clearance between Grips (mm) | 500 |
| Torque Resolution | 0.3 µm |
| Relative Error of Torque | ±1%/±0.5% |
Labnics Gasoline Oxidation Stability Tester features an integrated control system for smooth and efficient operation. They are equipped with touch-screen operation for simplified and intuitive user control. These units include automatic turning point detection to improve operational efficiency. Our testers offer self-inspection and alarm functions for prompt maintenance and issue detection. They provide pressure curve displays for comprehensive analysis.
| Temperature Range | RT to 120℃ |
| Control Point | 100℃ |
| Temperature Accuracy | ± 0.1℃ |
| Pressure Range | 0 to 1.6 Mpa |
Labnics Brightness Testers are designed to measure the brightness of samples, offering precise lightness evaluation for accurate results. They are equipped with an LCD screen for clear and easy visualization of results. These units ensure calibration reliability, maintaining accurate data for consistent performance. They are capable of performing multiple measurements and providing reliable data analysis. Our units are equipped with a thermal printer for fast and efficient result printing.
| Sample Size | Test plate diameter ≥ 30mm<br/> Sample thickness ≤ 40mm |
| Working Temperature | 10 to 35 ℃ |
| Humidity | ≤ 85% |
| Test Parameters | Measure the color of the object, report the diffuse reflection factor, stimulus value, chromaticity coordinates, brightness, chromaticity, chroma, hue angle, dominant wavelength, excitation purity, color difference, brightness difference, chroma difference, hue difference, Hunter System |
