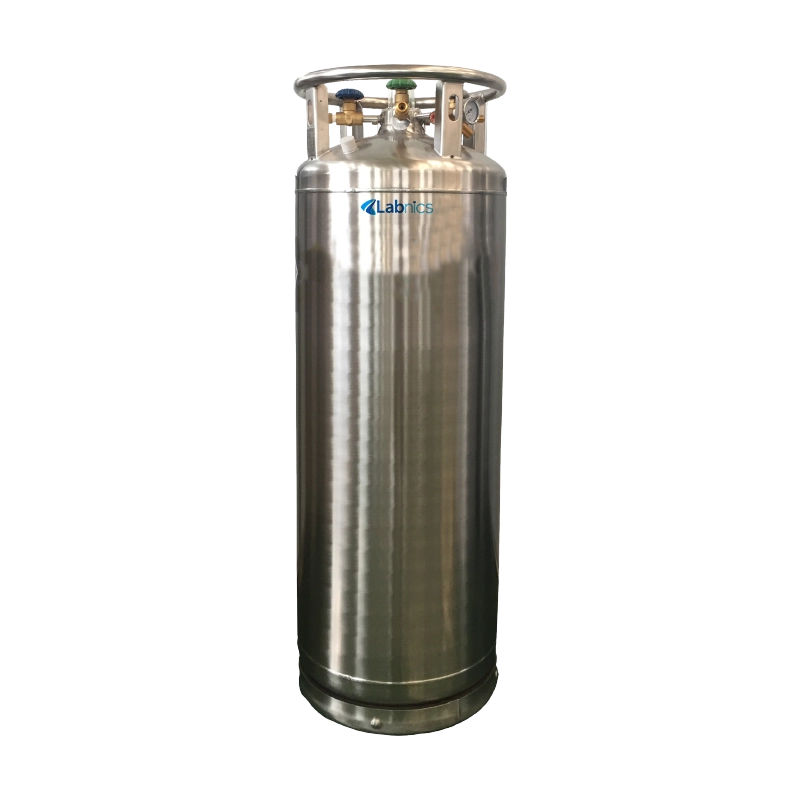

Liquid Nitrogen Dewar NLND-203
Liquid Nitrogen Dewar NLND-203 is durable, vaccum-insulated stainless steel cryogenic container with multi-layer thermal insulation that helps store and transport cryogenic liquid oxygen, nitrogen or argon. It features lockable lid that provides protection and sample isolation. These systems are are capable of providing continuous flow rates of up to 9.2 cu.m/h. These containers are ideal for transporting biological samples at cryogenic temperature while preserving sample integrity.
| Working Pressure | 1.4 Mpa |
| Pressure Relief Valve | 1.59 Mpa |
| Inner Container Bursting Disc | 2.60 Mpa |
| Maximum Liquid Capacity | 410 L |
| Usable Liquid Capacity | 389 L |
| O2 Filling Capacity | 443 kg |
| N2 Filling Capacity | 315 kg |
| Argon Filling Capacity | 548 kg |
| Natural Gas Filling Capacity | 161 kg |
| CO2 Filling Capacity | 325 kg |
| N2O Filling Capacity | 448 kg |
| Dimensions (D×H) | 750 × 850 × 1707 mm |
| Tare Weight | 282 kg |
Employed in farming, medical treatment, scientific research such as in biological engineering and medical sanitation for storing the active biological materials such as the breeding livestock's semen and embryos, vaccines, genes and dry cell.
