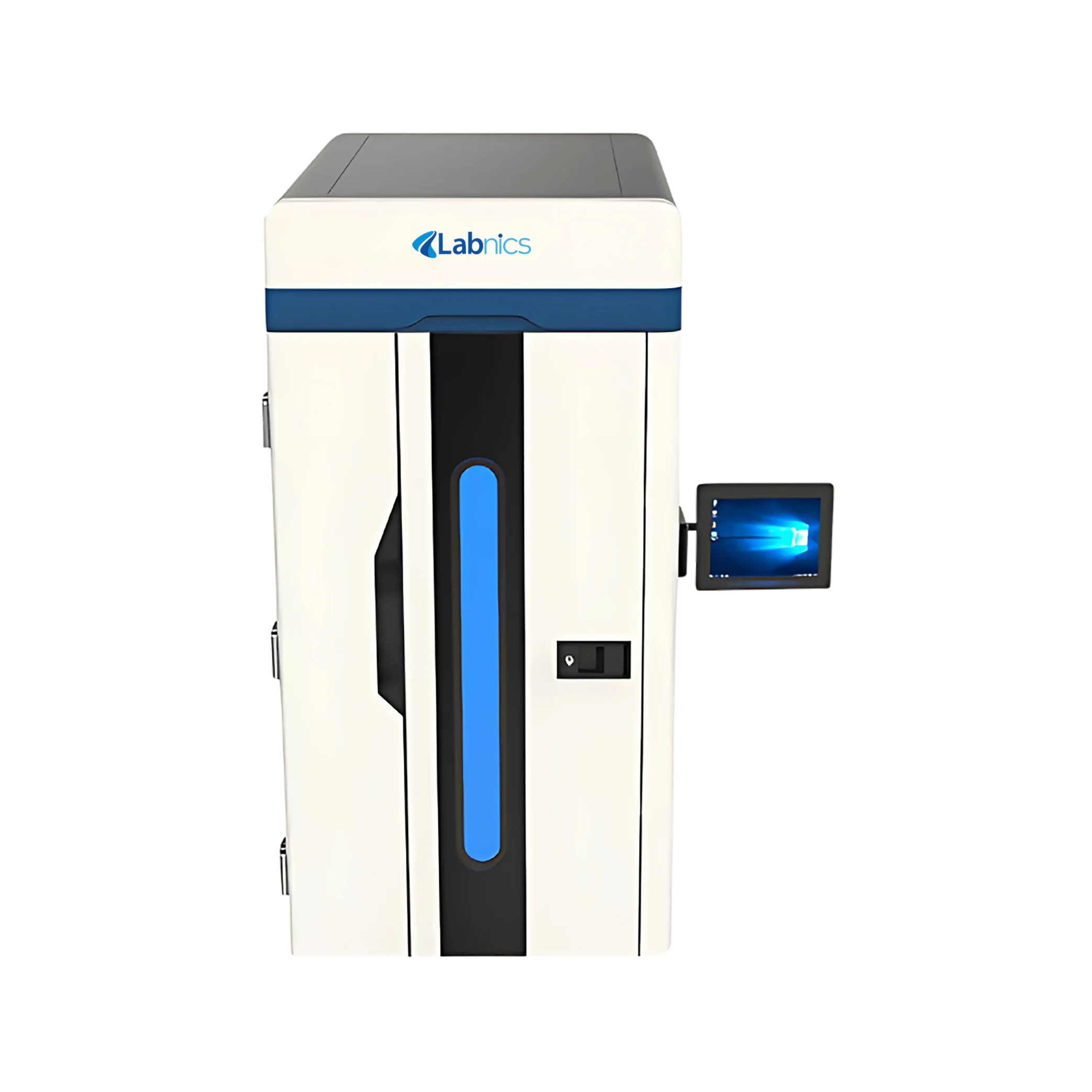

Modified Atmosphere Refrigerator NMAR-101

Modified Atmosphere Refrigerator NMAR-101

Modified Atmosphere Refrigerator NMAR-101 features three independent test chambers for precise and separate testing environments. It delivers adjustable gas flow rates up to 500 mL/min for oxygen, carbon dioxide, and ethylene. This unit provides reliable temperature control ranging from -5℃ to 45℃. It includes a built-in microcomputer system for automatic operation and data handling. Our refrigerator incorporates transparent viewing windows for clear internal visibility.


$105,000.00

Catalog

Specifications

No. of test chambers 3
Measuring ranges O₂: 0% to 25%
CO₂: 0% to 20%
C₂H₄: 0 to 220 ppm
other gas is N₂
Test accuracy O₂: 0.01%
CO₂: 0.01%
C₂H₄: 0.1 ppm
Gas flow control O₂: 0 to 500 mL/min
CO₂: 0 to 500 mL/min
C₂H₄: 0 to 500 mL/min
Purity requirements O₂, CO₂, C₂H₄, and N₂ purity is required to be greater than or equal to 99.9%
Temperature control range -5℃ to 45℃
Chamber temperature control accuracy ±0.5℃
Chamber humidity range Normal to 95%RH
Humidity fluctuation range ±3%RH
Refrigeration capacity 1 HP
Material Color steel plate
Chamber humidifier power consumption 50W
Chamber lighting system power consumption 10W
Overall power consumption 3kW
Power supply AC220V
Product dimension 889×1285×1750 mm

Features

  • Ethylene removal device
  • Ozone sterilization system
  • High-precision sensors
  • Real-time data display
  • Touchscreen control panel
  • Dual-layer glass door
  • Stainless steel interior
  • High-frequency humidification

Applications

  • Modified Atmosphere Refrigerator NMAR-101 is used for controlled storage and preservation testing under adjustable temperature, humidity, and gas conditions. It is suitable for fruits, vegetables, meat, seafood, baked goods, flowers, and seedlings.

Optional Accessories

Nitrogen generator

Measurement certificate (oxygen, carbon dioxide, and ethylene)

Ask Expert

FAQ for Modified Atmosphere Refrigerator NMAR-101

1: Is the Modified Atmosphere Refrigerator NMAR-101 easy to operate and monitor?

Our Modified Atmosphere Refrigerator features a 24-inch real-color touchscreen for intuitive control and real-time monitoring. All parameters, including gas concentrations, temperature, and humidity, can be set and viewed easily.

2: How does the Modified Atmosphere Refrigerator NMAR-101 handle ethylene and sterilization?

The Modified Atmosphere Refrigerator comes with a built-in ethylene catalytic removal device and ozone sterilization system. These features help maintain cleanliness and extend the freshness of perishable goods.

3: How is humidity controlled within the chambers?

The Modified Atmosphere Refrigerator uses a high-frequency fog humidification system that operates without heating, maintaining consistent humidity without affecting the internal temperature. Each chamber manages humidity independently to meet specific test requirements.

4: What components should be cleaned regularly?

It is important to regularly clean the inner stainless-steel chambers, drainage system, and transparent glass doors to maintain hygiene. Humidification units and gas inlets should also be checked and cleaned periodically to prevent buildup.

5: What is the best way to store the Modified Atmosphere Refrigerator NMAR-101 when not in use?

Our Modified Atmosphere Refrigerator should be turned off, cleaned thoroughly, and disconnected from the gas supply. Keep the doors slightly open to prevent odor buildup, and store in a dry, dust-free environment to preserve internal components.

6: Is the Modified Atmosphere Refrigerator easy to operate?

Yes, the user-friendly interface and automated features make it simple to set up and monitor. Even with minimal technical expertise, the system can be effectively managed.

7: What materials are used for construction?

The Modified Atmosphere Refrigerator is built with durable steel construction, ensuring long-term performance and stability in demanding lab environments. Its robust design supports frequent use and heavy workloads.

8: Does the Modified Atmosphere Refrigerator support different storage conditions in the same unit?

Yes, thanks to its multi-chamber design, you can store different samples under varied conditions simultaneously. This feature maximizes productivity and experimental flexibility.

9: How often does the Modified Atmosphere Refrigerator require maintenance?

Routine maintenance is recommended every 3 to 6 months to ensure optimal performance. Regular checks help identify and resolve minor issues before they affect system efficiency.


Modified Atmosphere Refrigerator NMAR-101

Modified Atmosphere Refrigerator NMAR-101


Related Models Of Modified Atmosphere Refrigerator

Labnics Modified Atmosphere Refrigerators come with multiple chamber configurations to support simultaneous testing under different conditions. They allow adjustable gas flow for accurate regulation of internal gas composition. These units feature a built-in microcomputer for intelligent control and automatic system adjustments. They use an ozone sterilization system to maintain a clean environment. Our refrigerators provide real-time data display for continuous monitoring of key parameters.
