BOD Incubator NBI-100
BOD Incubator NBI-100

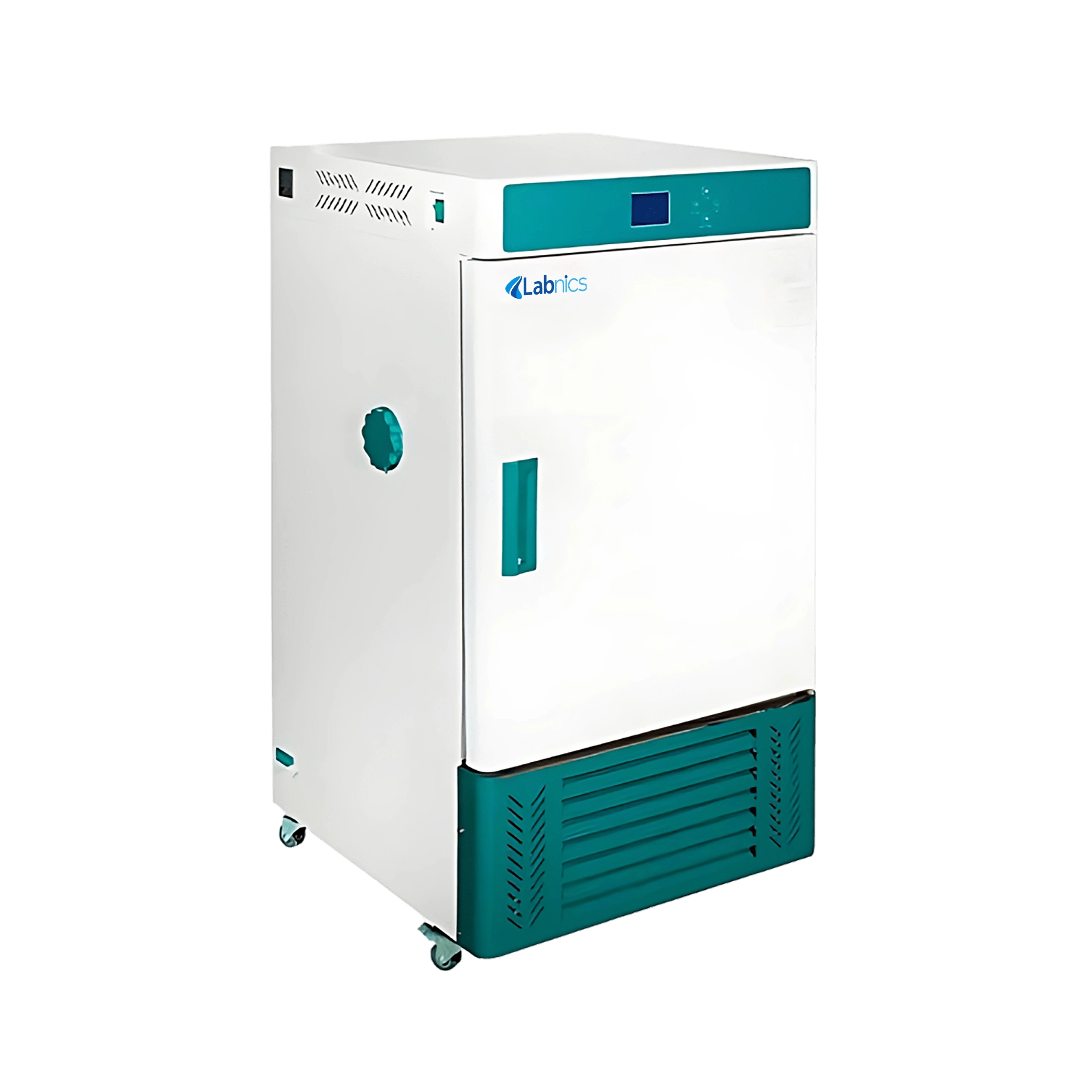

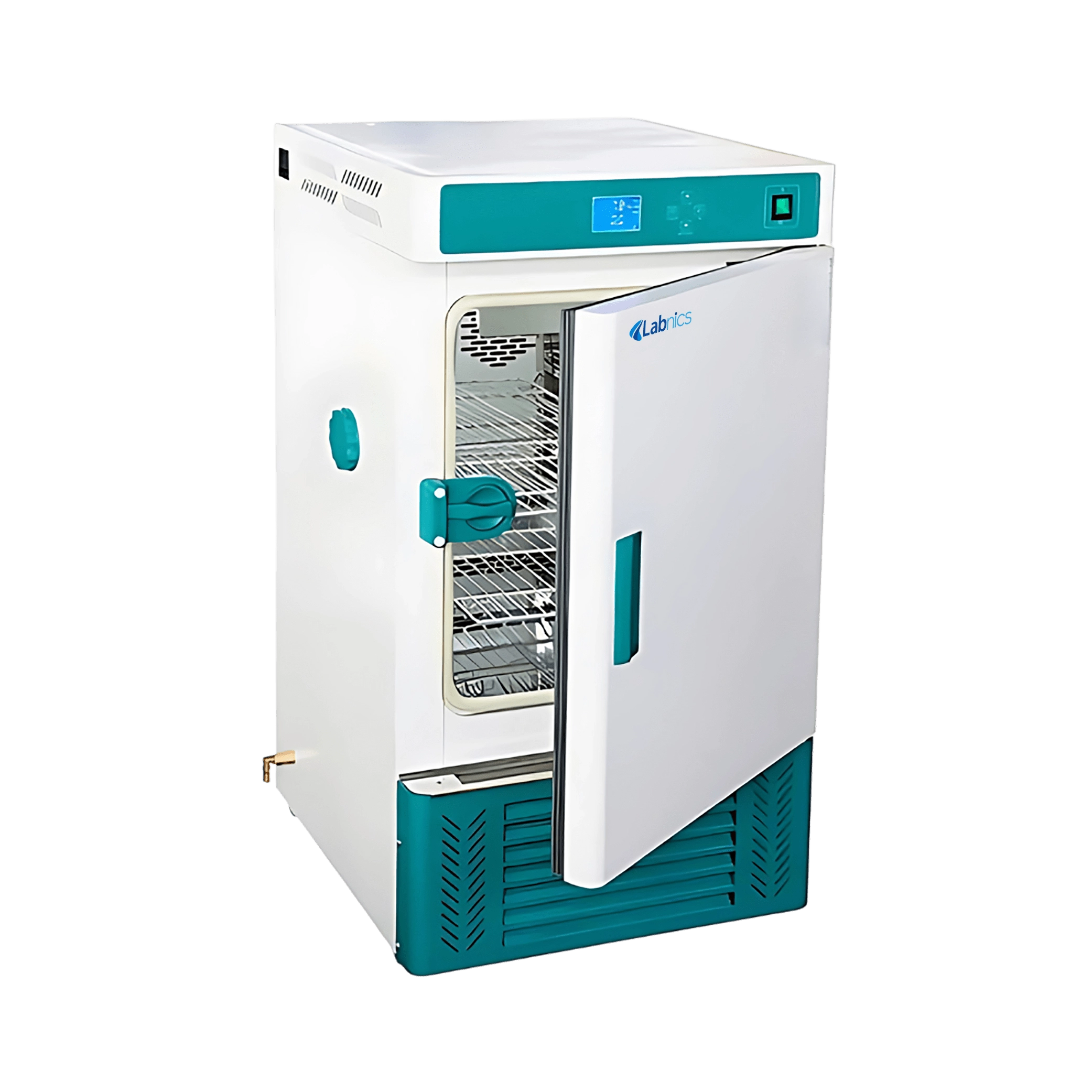

BOD Incubator NBI-100 is designed with a microcomputer-controlled system and offers a 150 L capacity and a 0 to 65 °C temperature range. Equipped with a stainless-steel inner chamber, adjustable shelves, and a glass door for clear visualization. The unit has a double door seal and a light in the inner chamber for convenient observation. Designed with LCD display, an over-temperature alarm function and CFC-free R134a as a cryogen. It has a test hole of 52 mm on the left side of the container.
Specifications
| Temp. range | 0 to 65℃ |
| Temp. Resolution Ratio | 0.1℃ |
| Temp. Uniformity | ±1.5℃ |
| Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Insulation layer | Polyurethane |
| Heater | Stainless steel heater |
| Power rating | 1.0 kW |
| Compressor | Air cooled hermetic compressor |
| Cryogen | R134a |
| Defrost structure | Automatic control intelligent defrosting |
| Test hole | Inner diameter 43mm (one) |
| Controlled external power supply | Outer universal socket (one), inner waterproof socket(one) |
| Temp. setting mode | Touch button setting |
| Temp. display mode | Measuring temperature: LCD upper screen; setting temperature: the lower row |
| Timer | 0 to 99.9h |
| Operation function | Fixed value operation timing function, auto stop. |
| Sensor | PT100 |
| Additional function | LED light, Deviation correction, Menu key lock, Power failure parameter memory |
| Inner Chamber size (W × L × H) | 490 ×400 ×750 mm |
| Exterior size (W × L × H) | 646 × 641 × 1301 mm |
| Packing size (W × L × H) | 761 × 740 × 1461 mm |
| Volume | 150 L |
| Load per rack | 15 Kg |
| Shelf number | 12 |
| Shelf space | 35 mm |
| Power Supply Current rating | AC220V/3.6A |
| Net Weight | 86 Kg |
| Gross Weight | 114 Kg |
Features
- ✔ Microcomputer-controlled system
- ✔ LCD display
- ✔ 30-stage program controller
- ✔ Stainless steel inner chamber with adjustable shelf
- ✔ Glass door for clear visualization
- ✔ High quality air cooled hermetic compressor for cooling system
- ✔ Cfc free refrigerant
- ✔ Light in the inner chamber for convenient observation
- ✔ Over-temperature alarm function
Applications
BOD Incubator is used to maintain temperature for test tissue culture growth, storage of bacterial cultures and incubation where high degree of constant temperature accuracy is required.
Standard Accessories
Shelf: 2
Shelf Frame: 4
Optional Accessories
Shelf
RS485 port
Printer
Recorder
Remote control
U-Disk data storage
