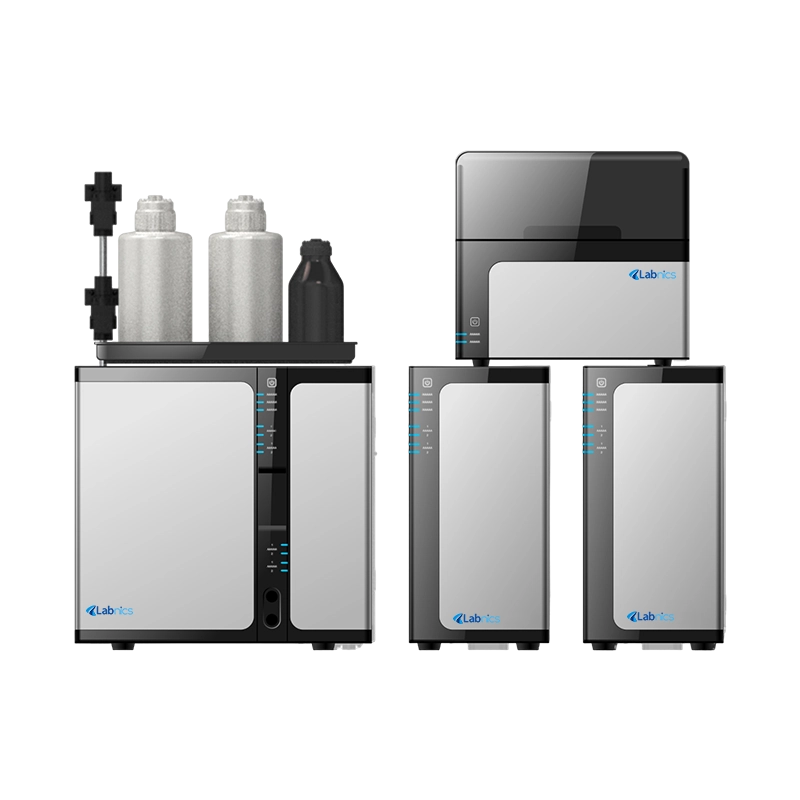

Ion Chromatography NIC-100

Ion Chromatography NIC-100 works on a pump flow rate of 0.001 to 12.000 mL/min. Offers conductivity cell detection range of 0 to 45000μS/cm. Offers options for anionic and cationic electrolytic self-regeneration suppressors. The column oven ensures consistent eluent and column temperatures. Our ion chromatography flow paths feature standard PEEK and PTFE materials. Our system combines a pump, six-way valve, column, suppressor, and detector.

---

$68,200.00

Buy Now Catalog

Specifications

Qualitative Repeatability	≤ 1%
Quantitative Repeatability	≤ 1%
Pump Flow Rate	0.001 to 12.000 mL/min
Pump Head Pressure	0 to 40 MPa
Flow Setting Error	< 0.2%
Flow Stability	< 0.2%
Pressure Accuracy	0.01Mpa
Pressure Pulsation	< 0.25%
Detector Baseline Noise	≤ 0.0005μS/cm
Detector Baseline Drift	≤ 0.005μS/cm per 30min
Detector Resolution	0.00238nS/cm
Minimum Detectable Concentration	(Cl): ≤ 0.0005ug/mL (Li): ≤ 0.0002ug/mL (NO₃⁻): ≤ 0.001μg/mL (Na⁺): ≤ 0.001μg/mL (Ca₂⁺): ≤ 0.005μg/mL
Conductivity Cell Volume	≤ 0.4μL
Conductivity Cell Detection Range	0 to 45000μS/cm
Conductivity Cell Temperature Error	±0.01℃/hr
Conductivity Cell Temperature Resolution	0.01℃
Conductivity Cell Temperature Range	5℃ to 65 ℃
Conductivity Cell Compensation Range	0 to 3.0%
Conductance Cell Stability	0.05℃
Conductivity Cell Voltage	15M
Suppressor Current Source Range	0 to 500mA, increment 0. 1mA
Suppressor Dead Volume	50uL
Suppressor Inhibition Capacity	170ueq/min
Suppressor Withstand Pressure	3MPa
Column Oven Temperature Range	RT +5℃ to 70℃;
Column Oven Temperature Stability	≤ 0. 1℃
Column Oven Temperature Error	0.05℃
Column Oven Compatibility	250mm and 150mm columns
Ambient Temperature	10 to 40℃
Relative Humidity	20 to 85%
Power Supply	220V, 50HZ
Mainframe Dimension	1390 × 590 × 432 mm
Pump Dimension	212 × 570 × 430 mm
ECG Dimension	212 × 570 × 430 mm
Detector Dimension	442 × 425 × 590 mm
Net Weight	115 Kg
Gross Weight	195Kg

Features

• Utilizes a high-performance double plunger pump
• Digital conductivity detector with automatic range adjustment
• Integrated DSP-based conductance detection technology
• Incorporates a built-in four-element proportional valve
• Includes an auto-sampler for automated sample handling

Applications

• Ion Chromatography is used for the detection and analysis of anions (e.g. F⁻, Cl⁻ , Br⁻ , BrO3⁻ , NO3⁻, NO2⁻ , SO42⁻ , PO43⁻ , disinfection by-products, etc.) and cations (e.g. Li⁺ , Na⁺ , NH4⁺ , K⁺ , Mg2⁺ , Ca2⁺ , etc.) in industries like environmental, pharmaceutical, and food samples.

Standard Accessories

Pump Unit × 1 piece

---

Liquid Pump and mixer × 2 pieces

---

Eluent generator × 2 pieces

---

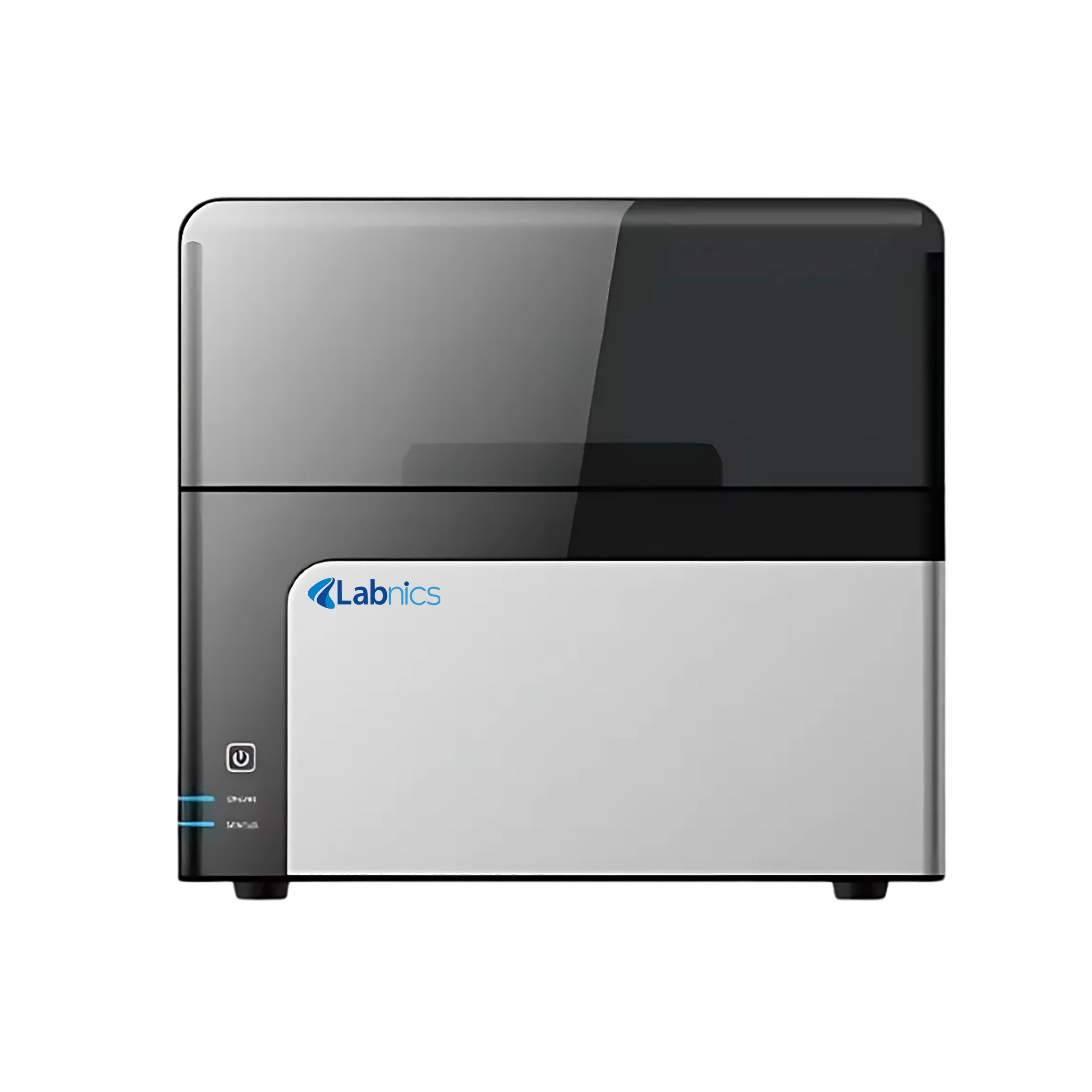

Autosampler (120 vials, sample bottle: 2mL) × 1 piece

---

Detection and chromatographic Mainframe × 1 piece

---

Conductivity detector × 2 pieces

---

Anion Suppressor × 2 pieces

---

Cation Suppressor × 2 pieces

---

guard column × 1 piece

---

Install reagent pack × 1 piece
