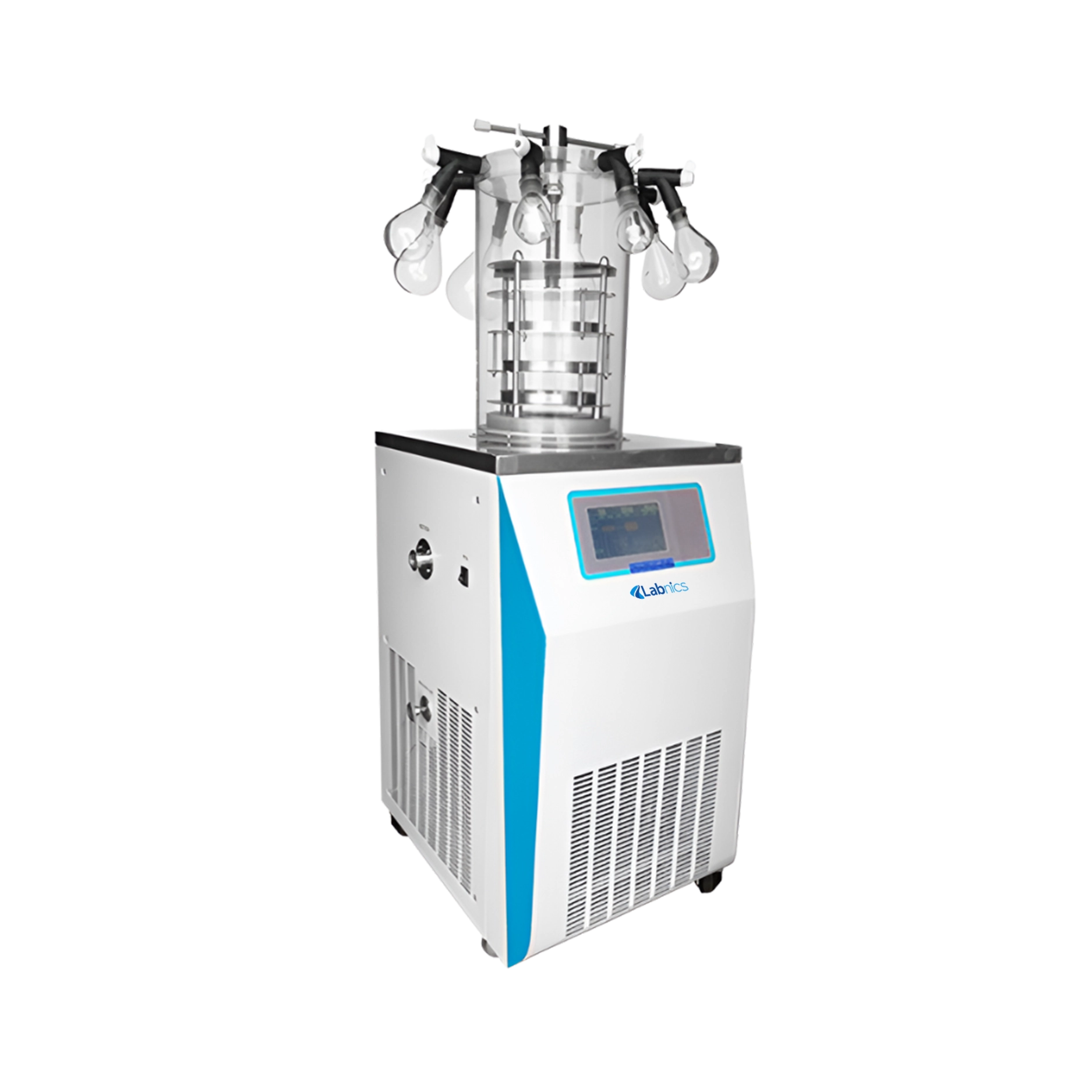

Floor-Type Freeze Dryer NFFD-203

Floor-Type Freeze Dryer NFFD-203

Floor-Type Freeze Dryer NFFD-203 comes with a sample tray measuring Φ180 × 3 and a shelf spacing of 70 mm. It is equipped with a digital display for precise and accurate readings. Our unit features an acrylic drying chamber for easy monitoring. It has a compact and lightweight design for easy handling and portability. This Floor-Type Freeze Dryer includes a vacuum pump with a high pumping speed for efficient results.


$7,525.00

Catalog

Specifications

Drying area 0.08 m²
Condenser temperature -50°C or -80°C
Vacuum degree Less than 10 Pa
Condenser capacity 3 to 4 kg/24h
Sample tray Φ180 × 3
Shelf spacing 70 mm
Shelf temperature range Ambient temperature to +80°C
Bulk liquid capacity 0.8 L
Vial capacity Φ12mm: 492 pcs
Φ16mm: 279 pcs
Φ22mm: 147 pcs
Manifold 8 ports
Flask 1000ml, 500ml, 250ml, 100ml, 50ml
Vacuum Pump Flow Rate 2 L/S, 7.2 m³/h
Power Consumption 1400W
Power Supply 220V/50 Hz, 110V/120V/60Hz
Dimension 580 × 500 × 1260 mm
Weight 115 kg

Features

  • Electricity heating shelf
  • Low noise operation
  • USB data port
  • Stainless steel chamber
  • Powerful sensor calibration

Applications

  • Floor-Type Freeze Dryer NFFD-203 is used to preserve sensitive pharmaceutical products like vaccines, antibodies, and probiotics by gently removing moisture while maintaining their biological activity and shelf life.

Ask Expert

FAQ for Floor-Type Freeze Dryer NFFD-203

1: Can the Floor-Type Freeze Dryer be integrated with a PC for remote operation?

Yes, with RS232 and dedicated software, users can control the freeze dryer and monitor data directly through a computer.

2: How does the Floor-Type Freeze Dryer ensure measurement accuracy over time?

It comes with powerful sensor calibration functions to maintain long-term accuracy and consistency in critical process measurements.

3: Can the Floor-Type Freeze Dryer handle customized drying programs?

Yes, it supports programmable functions with the ability to store hundreds of recipes, each with up to 36 segments, allowing flexible control over temperature and process steps.

4: Is this Floor-Type Freeze Dryer environmentally friendly?

The Floor-Type Freeze Dryer uses a CFC-free refrigerant and a high-efficiency, low-noise compressor, supporting both performance and sustainability.

5: Can I connect round bottom or wide-neck flasks to this Floor-Type Freeze Dryer?

Yes, external manifold ports are available to connect various types of flasks for flexible freeze-drying setups.


Floor-Type Freeze Dryer NFFD-203

Floor-Type Freeze Dryer NFFD-203

Related Models Of Floor-Type Freeze Dryer

Labnics Floor-Type Freeze Dryers feature an efficient vacuum pump to ensure rapid pressure reduction and consistent freeze-drying. They are equipped with a touchscreen control interface for intuitive operation and precise adjustments. These units include a large drying chamber for efficient processing. They are designed with corrosion-resistant materials for long-term reliability. Our Floor-Type Freeze Dryers offer automatic or manual defrost options for easy maintenance and user convenience.
