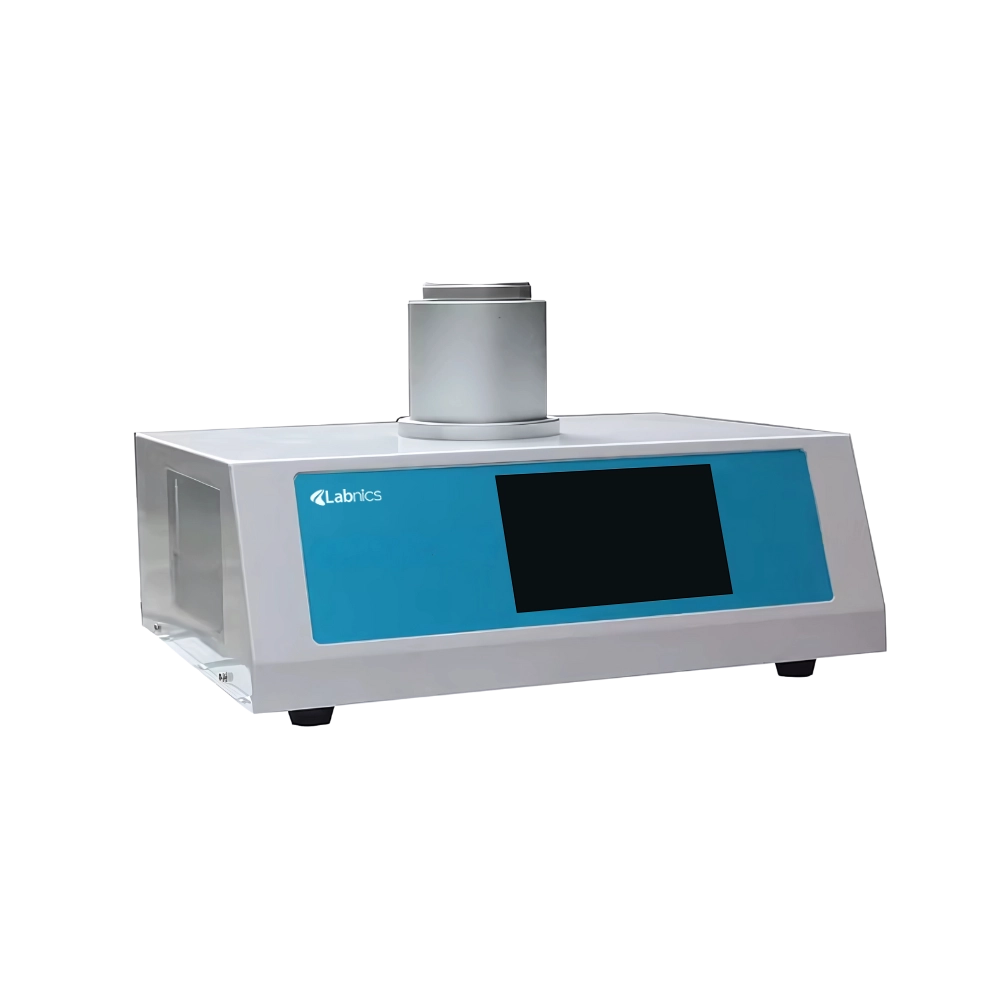

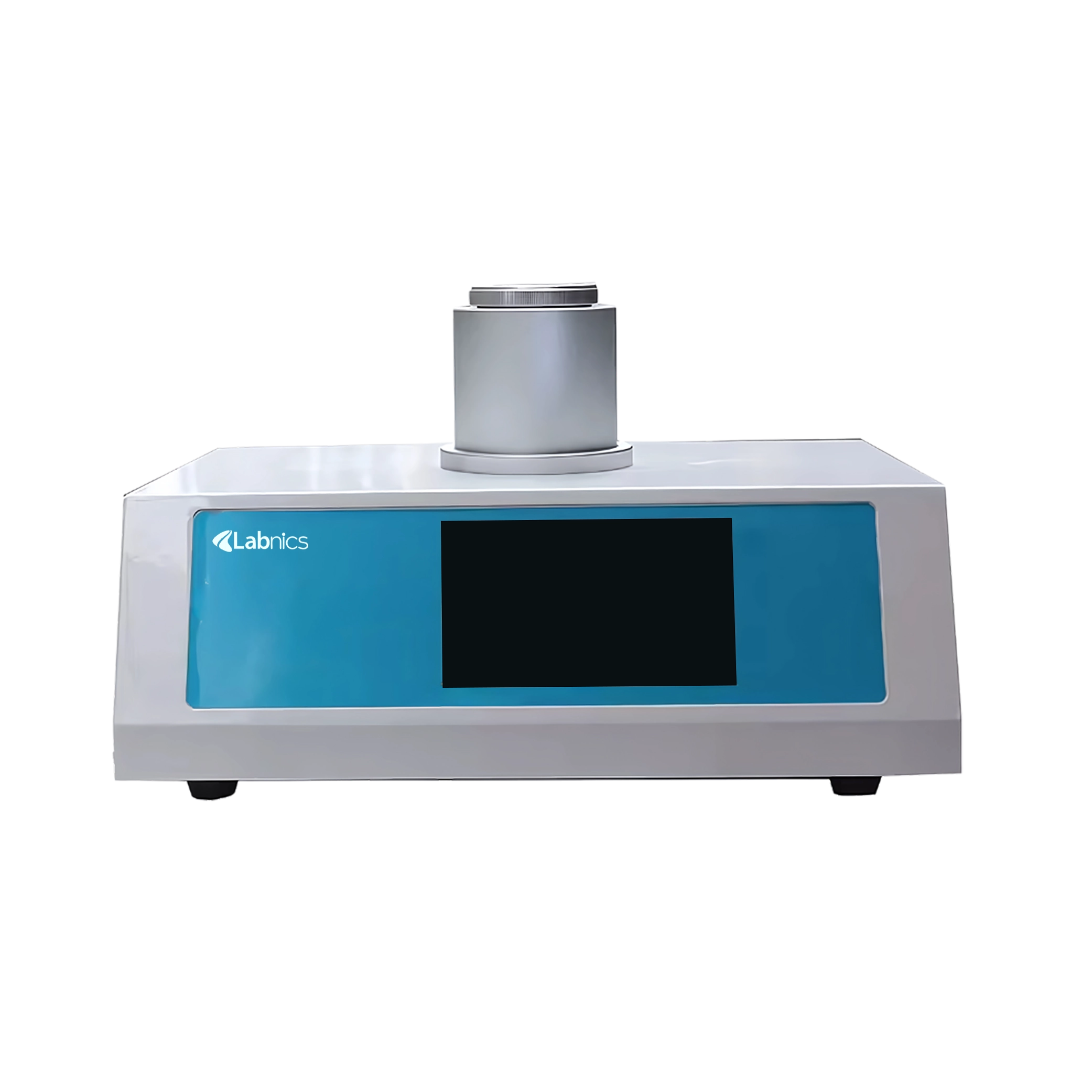

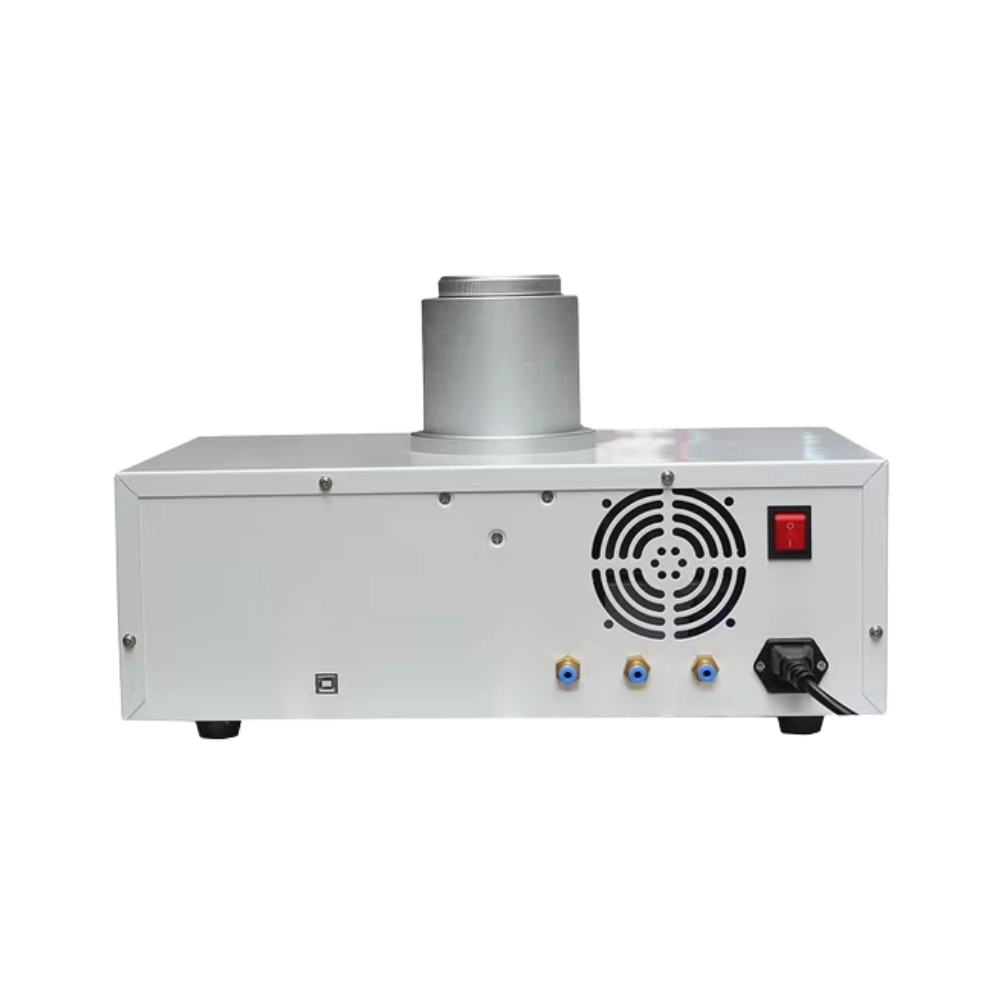

Differential Scanning Calorimeter NDSC-100

Differential Scanning Calorimeter NDSC-100 has a temperature resolution of 0.01 °C and can identify the inner heat transition related to temperature and heat flow. Designed with touch screen display for setting the several parameters like temperature, sample temperature, oxygen and nitrogen flow rate and thermal signals. It has double temperature probe to ensure repeatability of the sample temperature measurements. Equipped with USB communication interface for reliable transfer of the data.

---

Get Quote Catalog

Specifications

Temperature range	Room temperature to 500 ℃ （Room temperature to 800 ℃ Optional)
Temperature resolution	0.01℃
Heating rate	0.1 ~ 80 ℃ / min arbitrary set
Constant temperature advise	Advise < 24 hours
Temperature control mode	Heating, constant temperature, programmable, temperature continuous
DSC range	0 to ± 500 mW
DSC resolution	0.001 mW
DSC accuracy	0.001 mW
Atmosphere control of gas	Nitrogen, oxygen (automatic switching)
Gas flow	0-200 ml/min
Gas pressure	0.2 M Pa
Crucible	Aluminum crucible, Φ 6.6 × 3 mm
Standard substances	(indium, tin, zinc), the user can correct temperature and heat enthalpy
Data interface	Standard USB interface
Display mode	24 bit color, 7 inch touch screen display
Output way	Computer and printer
Power supply	AC110V/220V, 50/60Hz, Single Phrase
Power	300W

Features

• Large touchscreen to display temperature and flow rate of gases
• USB Communication interface for transfer of data and is able to restore the connection
• Compact furnace structure and arbitrary adjustable heating rate
• Streamlined installation procedure for better user experience
• Temperature sensor installed on the furnace wall
• PID Control for controlling the furnace temperature
• Double temperature probe to ensure reproducible results of the sample temperature measurements
• Fast and steady atmospheric flow with auto switch
• Temperature and heat content can be adjusted according to the requirements of the user
• Provides heating and constant temperature scanning
• Fully enclosed bracket structure design prevents articles falling into the furnace body, polluting the furnace body and reducing maintenance rate

Applications

• Differential Scanning Calorimeter is extensively used for polymer development, performance testing & quality control in the pharmaceutical industries, research labs and academic institutions.
