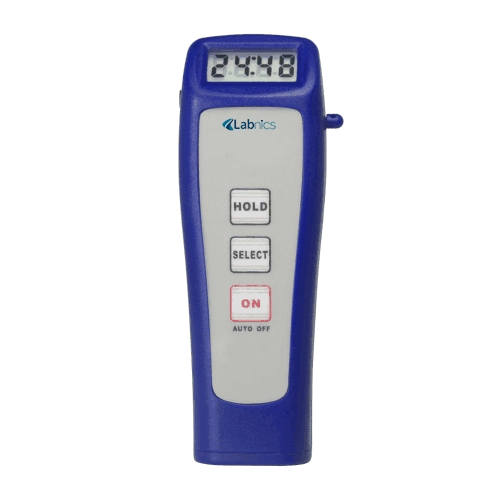

Engine Tachometer NTCH-201

Engine Tachometer NTCH-201 is a non-contacting type tachometer. Which is easy to measure the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines. It consists of two type parts, partitioned by a colon left part is for 2 circles engines and the right part is for 4 circle engines as follows. The engine type selected will be displayed on the display and memory storage is inputted in this device.

Get Quote Download Catalog

Specifications

Application 2-circle	1,2,3,4- cylinder
Application 4-circle	1,2,3,4,5,6,8-cylinder
Range Engine	100 to 99,999 r/min
Range Laser	NIL
Detection Method Engine	Electromagnetic Introduction
Detection Method Laser	NIL
Detection Distance Engine	NIL
Detection Distance Laser	NIL
Resolution	0.1/1
Accuracy	± ( 0.5%n + 1d )
Memory	Nil
Temperature range	0 to 50°C
Humidity	˂85 % RH
Dimension	97 × 35 × 25 mm
Power Supply	2 × 1.5 V, AAA (UM-4)
Weight	65 g (without Batteries)

Features

✔ Non-contacting detection enables an easy and safe measurement
✔ It assures an accurate measurement
✔ Wide measuring range & high resolution
✔ Indicator shows how the signal is captured
✔ Accurate rotational speed can be obtained in 0.1 or 1 r / min unit
✔ When the battery runs out or the voltage drops, the battery signal at the lower left corner of the display panel lights up
✔ The four-digit LCD is suitable for out-door measurement
✔ Compact, lightweight and easy-to-carry, enabling one-hand measurement
✔ ABS-plastic housing assures maintenance free performance for many years
