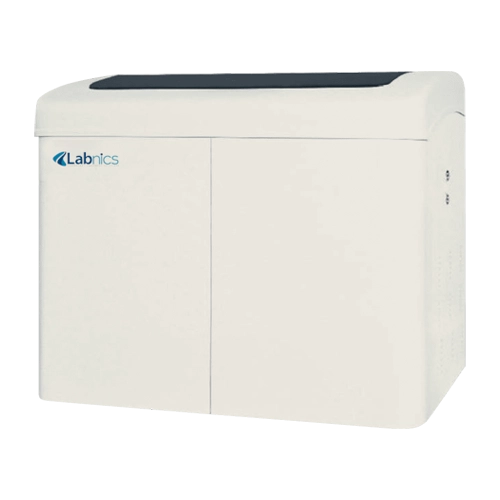

Automatic Biochemistry Analyzer NABA-100

Automatic biochemistry analyzer NABA-100 is a clinical testing equipment designed to screen the blood, serum, and other vital body fluids for evaluation of the essential elements. It is equipped with highly synchronized operation of diluter, reaction cell and washing station to provide completely automated system. The Nano-surface coated sample and reagent probes prevents interference of preceding sample residues generating reproducible and precise output.

---

Get Quote Catalog

Specifications

Throughput-includes ISE	960 test/ hr.
Throughput-includes biochemical test only	800 test/ hr.
Sample capacity	2 x 100 primary tube or micro serum cup
Sample volume	1.0 µL to 100 µL in .01 µL/ step
Reagent volume	1 µL to 500 µL in 0.1/ step
Reagent tray	2 reagent strays, barcode scanner available (on request)
Reagent refrigerator	2 °C to 8 °C, 24 hrs. available
Reading cuvette	160 cuvettes
Reaction volume	Minimum 120 µL
Reaction disc temperature	37 °C ± 0.1 °C
Carry- over	Less than 0.0005 %
Wavelength range	340 nm to 810 nm
Power supply	AC 110 V / 60 Hz 220 V / 50 Hz
Dimensions	1200 x 900 x 1100 mm

Features

• Concave grating system for selection of optimized light wavelength
• Stereoscopic collision protection of sample and reagent probe
• Equipped with Single or multipoint calibration system
• Washing station unit to avoid sample contamination
• Two separate reagent chambers with independent refrigerators
• Multiple biochemical assays are performed
• Automatic alarm for monitoring process
• Feasible software for data processing and reviewing

Applications

• It is widely used for the analysis of various biological components for diagnosing impaired organ functioning or disorders in fields such as pathology, medical microbiology, and research purposes.
