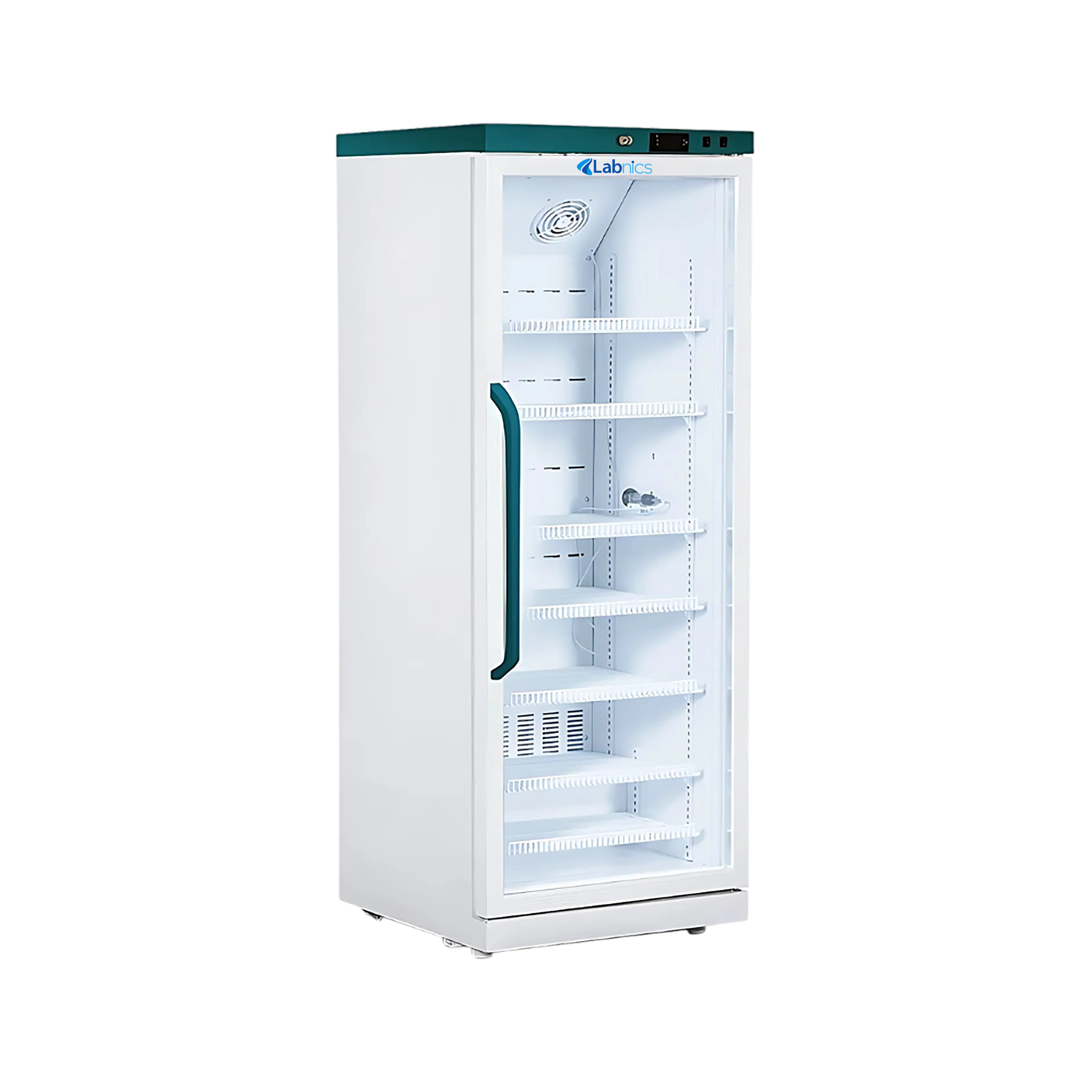

Pharmaceutical Refrigerator NPR-201 offers a storage capacity of 328 liters, making it suitable for various applications. It comes with dual sensors to monitor both product and air temperature for accurate control. This unit has seven height-adjustable shelves to accommodate various storage needs. It features high-density forming insulation to maintain stable internal temperatures. Our refrigerator includes a digital LED display that shows real-time readings with precision.
| Cabinet type |
Free standing |
| Capacity |
328L |
| Dual sensors |
Product/air |
| Temperature range |
2 to 8°C |
| Working temperature range |
+10 to +32°C |
| Uniformity |
1.5℃ |
| Accuracy |
0.1℃ |
| Fluctuation |
1.5℃ |
| Cooling type |
Forced air cooling |
| Defrost mode |
No frost |
| Refrigerant |
CFC-free, hydrocarbon gas, R600A |
| No. of shelves |
7 |
| Foot locks |
2 |
| Casters |
4 |
| Door material |
Glass/solid (s) (foamed power-coated steel door) |
| Internal material |
Powder-coated aluminum |
| External material |
Powder-coated cold-rolled steel |
| Shelf material |
Dirt-pickup resistant plastic-coated iron wire, height adjustable |
| Temperature controller |
Microprocessor thermostat controller |
| Display |
Digital LED display with accuracy of 0.1℃ |
| High/low temperature alarm |
Yes |
| Power failure alarm |
Yes |
| Remote alarm |
Yes |
| Sensor error alarm |
Yes |
| Low battery alarm |
Yes |
| Door ajar alarm |
Yes |
| Door lock |
Yes |
| Inner light |
LED |
| Noise Level |
≤45 dB(A) |
| Power consumption |
1.5 kWh/24h |
| Overall power consumption |
210W |
| Current |
1.60A |
| Power supply |
220 to 230V,50Hz (110 to 115V, 60Hz) |
| Internal dimension |
Top: 505×442×1180mm
Bottom:505×310×165 mm |
| External dimension |
595×611×1560 mm |
| Packaging dimension |
660×705×1630 mm |
| Net weight |
85 kg |
| Gross weight |
95 kg |
FAQ for Pharmaceutical Refrigerator NPR-201
1: Is the Pharmaceutical Refrigerator NPR-201 easy to move or install?
The Pharmaceutical Refrigerator is equipped with four caster wheels and two foot locks, making it easy to position and secure. Its compact external dimensions allow for easy placement in various clinical or laboratory settings.
2: What materials are used for construction?
The cabinet is built with a powder-coated cold-rolled steel exterior and a powder-coated aluminum interior for durability and easy maintenance. The door is available in either solid or glass design based on preference.
3: How is the internal temperature maintained during operation?
The Pharmaceutical Refrigerator uses high-density forming insulation and a forced air cooling system to maintain a consistent internal temperature. The waterproof brushless fans ensure even airflow throughout the cabinet.
4: How often does the Pharmaceutical Refrigerator NPR-201 need maintenance?
Regular maintenance is minimal but important to ensure optimal performance. Basic cleaning and inspection should be done monthly, while more detailed checks on alarms and temperature sensors can be done quarterly.
5: Do the fans or filters require cleaning?
Yes, the waterproof brushless fans and air circulation paths should be inspected periodically to remove dust or debris. Keeping them clean ensures efficient airflow and consistent internal temperature.
