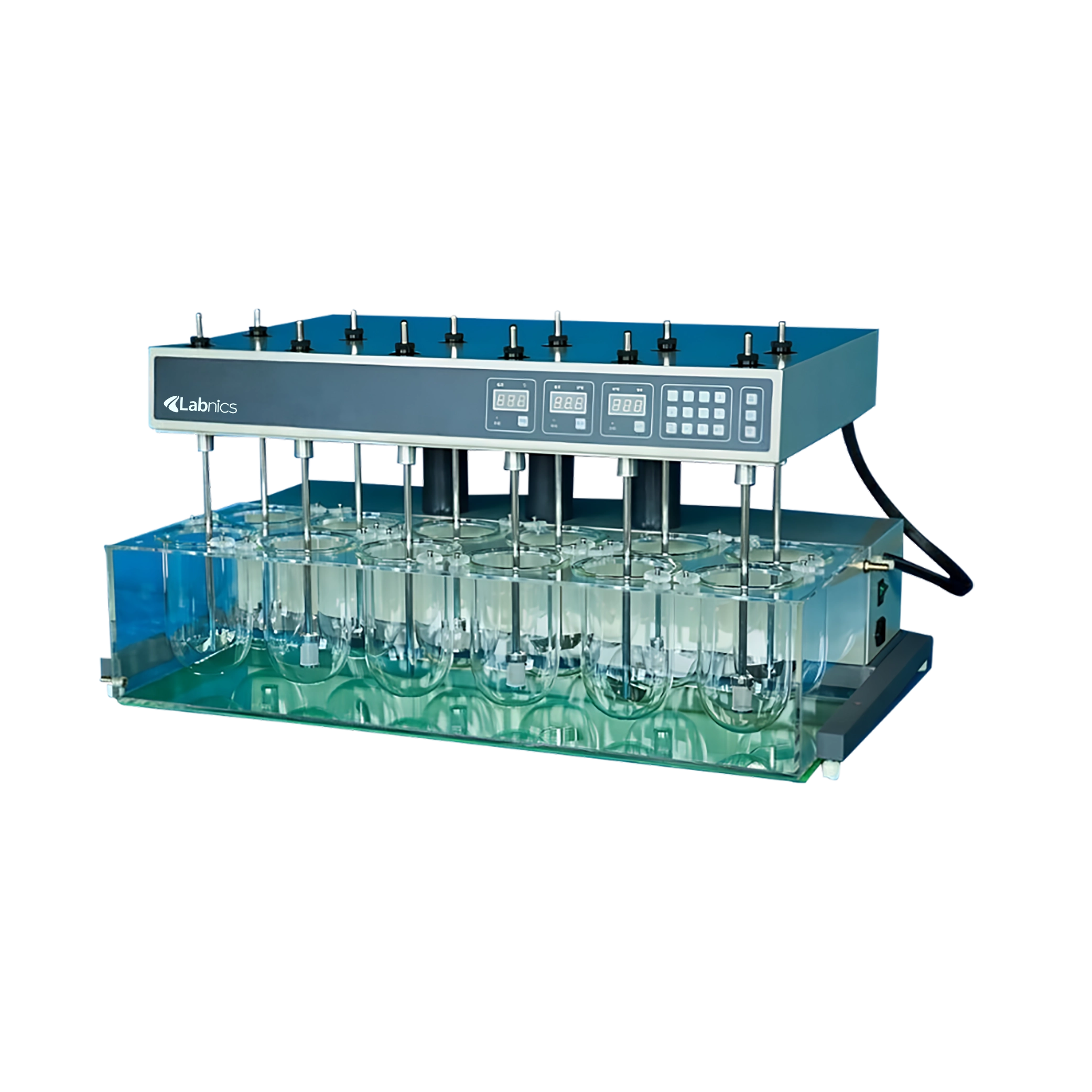

Dissolution Tester NDST-100 is a U-shaped vessel composed apparatus engineered to determine the velocity of dissolution of pharmaceutical tablets or capsules. The basket units and paddle units are made up of stainless steel with resistance to exposure to high temperature. The magnetism pumped circulating water systems enables to maintain the uniform temperature of the liquid in the vessels. The microprocessor-controlled automation system accurately displays quantified data for temperature, rotational speed and time.
Specifications
| No of vessels | 12 |
| Speed range | 20~200 rpm |
| Speed accuracy | ±2 rpm |
| Temperature range | Ambient to 45℃ |
| Temperature Stability | ± 0.3℃ |
| Preset timing nine points | 1~999 min |
| Time accuracy | ± 0.3% |
| Paddle radial run-out | ± 0.5mm |
| Basket radial run-out | ± 1.0mm |
| Power | 220V / 50Hz / 1200 W |
| Overall dimensions | 960 × 540 × 480 mm |
Features
Ask Expert
| No of vessels | 6 |
| Speed range | 20~200 rpm |
| Speed accuracy | ±2 rpm |
| No of vessels | 8 |
| Speed range | 20~200 rpm |
| Speed accuracy | ±2 rpm |
| No of vessels | 3 |
| Speed range | 20~200 rpm |
| Speed accuracy | ±2 rpm |
| Configuration | Eight vessels and eight poles |
| Head Movement | Auto |
| Speed Range | 20 to 200rpm |
| Number of Vessels | 14 vessels |
| Stirring speed range | 10.0 to 300.0 rpm |
| Speed Resolution | 0.1 rpm |
