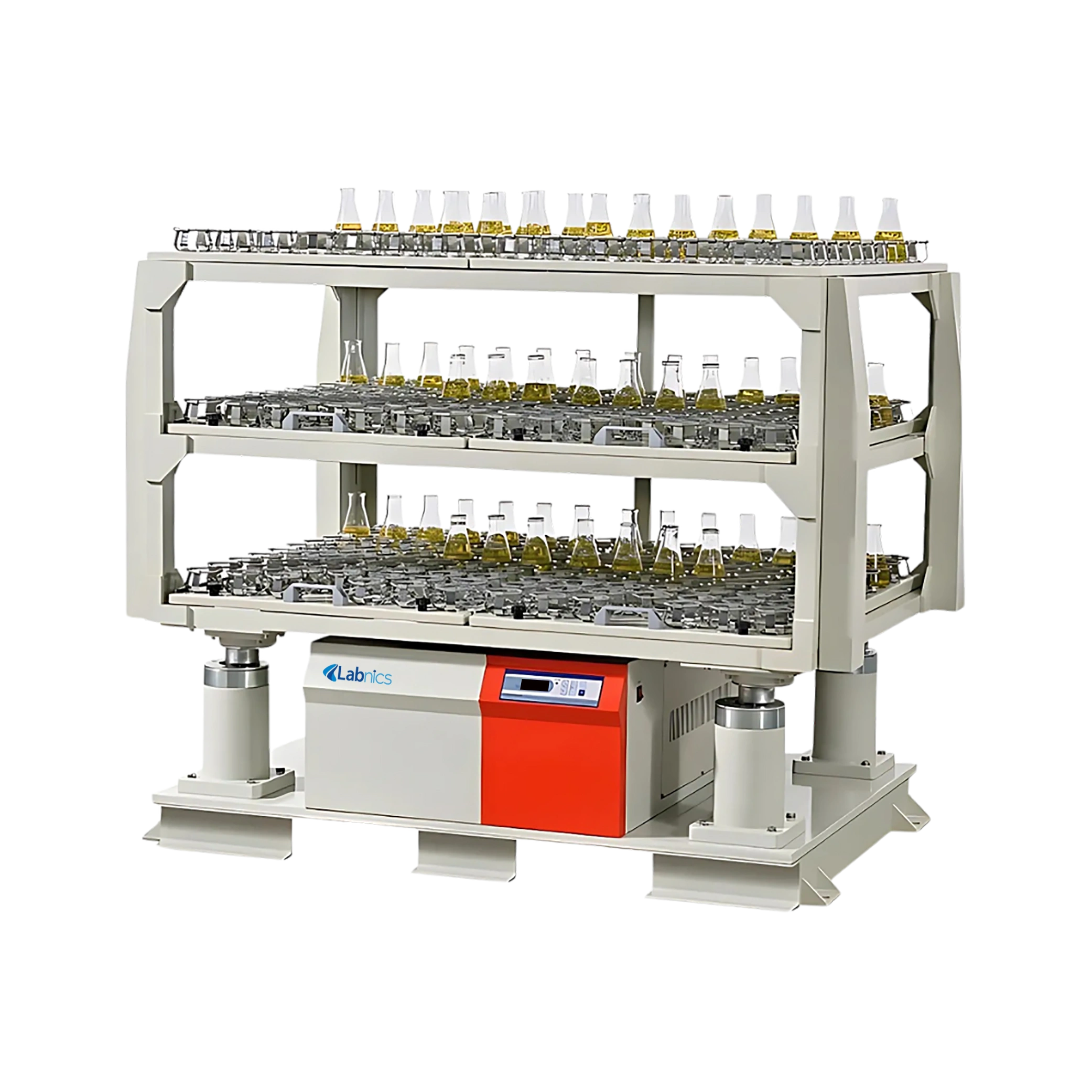

Large Capacity Orbital Shaker NLOS-300 features six trays for efficient large-scale sample processing. It provides a maximum loading capacity of 1000 ml×112, 500 ml×216, and 250 ml×300. This unit employs natural convection circulation to ensure stable thermal and airflow conditions. It protects samples with a highly sensitive speed monitoring system. Our shaker comes with a 7-inch color touch screen display for intuitive operation and multi-parameter monitoring.
$10,875.00
Specifications
| Maximum loading capacity | 1000ml×112 500ml×216 250ml×300 |
| Tray quantity | 6 |
| Rotation way | Rotary |
| Rotation speed | 30 to 300rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 50mm |
| Curve editing | 8-segment rotational speed programming setting |
| Timing range | 0 to 9999H/0 to 9999min |
| Display | 7-inch TFT touch screen HD |
| Control | P.I.D microcomputer |
| Circulation mode | Natural convection |
| Drive mode | Single-axis balanced drive |
| Safety function | Emergency stop, hardware interlock, software interlock, overspeed and stall audible and visual alarms, short circuit, electric leakage, and overload protection devices. |
| Bearings | NSK original imported double row bearings |
| Power consumption | 1100W |
| Power supply | 220V±10%, 50/60Hz |
| Tray size | 1080×680mm |
| External dimension | 1590×1120×970mm |
| Net weight | 800 kg |
Features
Applications
Ask Expert
FAQ for Large Capacity Orbital Shaker NLOS-300
1: How does the Large Capacity Orbital Shaker NLOS-300 protect samples during operation?
Our Large Capacity Orbital Shaker includes a highly sensitive speed monitoring system that detects any uncontrolled rotation. If an issue arises, it triggers audible and visual alarms and automatically stops operation to prevent sample damage.
2: Is the Large Capacity Orbital Shaker NLOS-300 safe to use?
Our Large Capacity Orbital Shaker provides multiple safety functions including emergency stop, hardware and software interlocks, overspeed and stall alarms, and protection against short circuits, leakage, and overload. These features ensure both operator and sample safety during continuous operation.
3: How does the Large Capacity Orbital Shaker NLOS-300 maintain consistent experimental conditions?
Our Large Capacity Orbital Shaker uses natural convection circulation to ensure stable thermal and airflow conditions. This guarantees reproducible results and reliable performance even during long-duration experiments.
4: Can I export data from this Large Capacity Orbital Shaker NLOS-300?
Yes, our Large Capacity Orbital Shaker offers optional USB data export to help maintain records and streamline workflow documentation. This feature is especially useful for labs requiring traceability and compliance with quality standards.
5: What routine checks are recommended for long-term reliability?
It is recommended to verify rotation speed accuracy, inspect electrical connections, and check for any wear on trays or mechanical parts. Regular preventive maintenance helps avoid unexpected downtime and maintains consistent performance.
6: Is the Large Capacity Orbital Shaker safe to operate?
Our Large Capacity Orbital Shakers include secure tray clamps and safety features to prevent spillage or sample accidents. They can be operated confidently, even with large or heavy sample loads. This enhances both safety and reliability in busy lab settings.
7: How easy is the Large Capacity Orbital Shaker to clean and maintain?
The Large Capacity Orbital Shakers are designed with smooth surfaces and removable trays, making cleaning fast and straightforward. Hygiene standards can be maintained without complicated procedures. Regular maintenance is simple, ensuring long-term reliable operation.
8: How precise is the shaking motion?
The Large Capacity Orbital Shakers provide smooth and uniform orbital motion, ensuring thorough mixing without disturbing the samples. Results remain consistent and reliable. This precision is especially important for sensitive experiments.
9: Is the Large Capacity Orbital Shaker suitable for sensitive biological samples?
Our Large Capacity Orbital Shakers provide gentle, controlled shaking options suitable for delicate cell cultures and biological samples. Sensitive materials can be handled without risk of damage. This makes them ideal for both research and clinical labs.
Labnics Large Capacity Orbital Shakers support multiple flasks and bottles simultaneously, allowing efficient handling of large sample volumes. They provide adjustable speed for gentle to vigorous shaking. These units feature two or more trays to maximize workspace efficiency.
They are made of durable, corrosion-resistant materials for long-lasting performance.
Our shakers include digital controls for easy monitoring of speed and time.
