Forced Air Drying Oven NFDO-102 Catalog

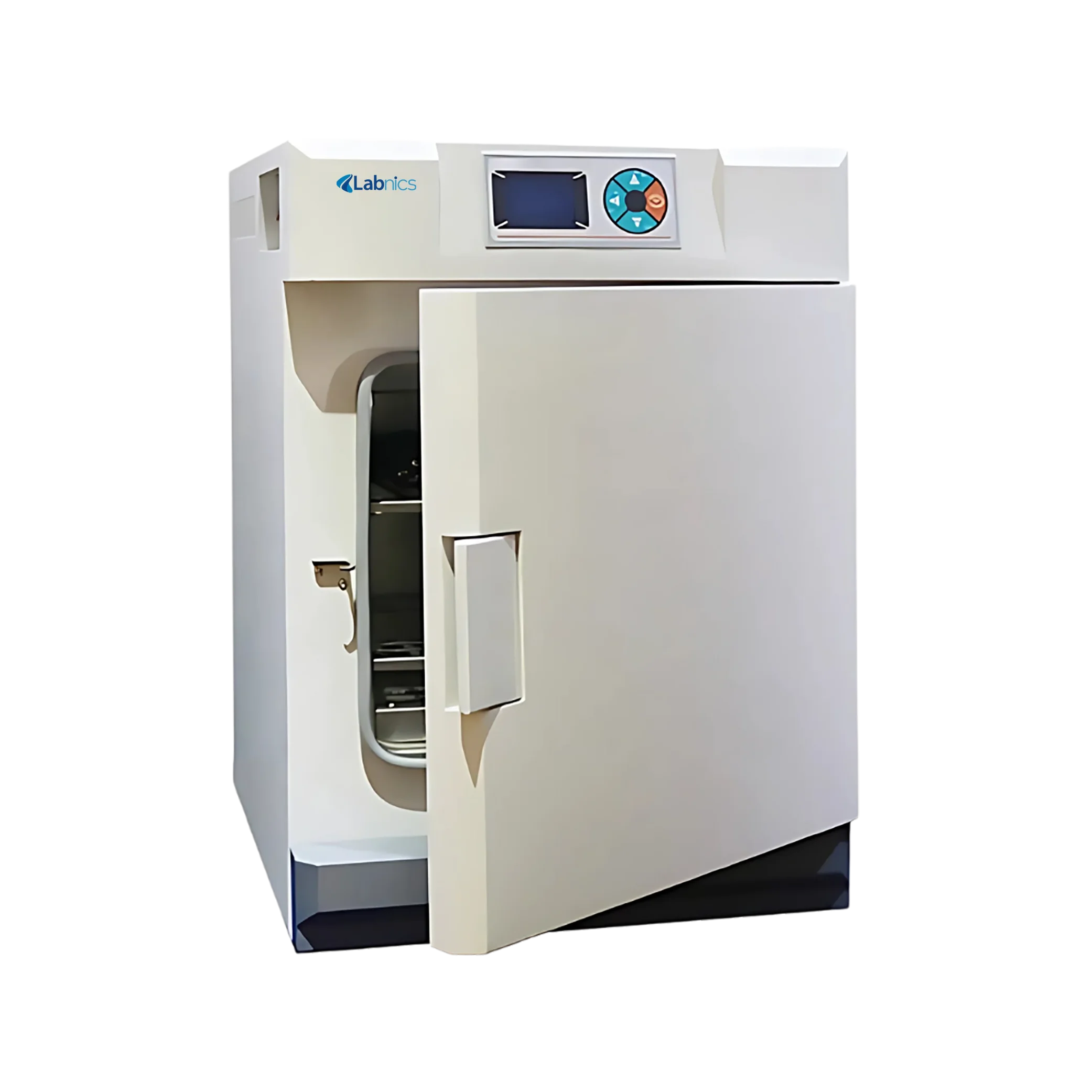

FORCED AIR DRYING OVEN NFDO-102

Forced Air Drying Oven NFDO-102 integrates a PID controller for precise temperature regulation and operates with a spacious capacity of 240 L. It features a high-efficiency compressor for stable temperature control and reduced power consumption. Our drying oven employs back suction and bottom vertical air supply for efficient circulation and uniform heat distribution. It is equipped with a large-screen LCD for real-time display and monitoring of parameters.

FEATURES

⇋ Beep remainder on program completion
⇋ Fixed and timed operation modes
⇋ Adjustable shelves with 30mm minimum spacing
⇋ Synthetic silicone sealing strip for heat insulation
⇋ Observation window for clear chamber visibility
⇋ High-quality fan and large impeller for proper ventilation

SPECIFICATIONS

Capacity	240 L
Circulation Mode	Forced convection
Temperature Range	RT+10 to 250℃
Temperature Fluctuation	± 0.5℃
Temperature Resolution	± 0.1℃
Temperature Uniformity	± 2.5%℃
Temperature Sensor	PT100
Controller	PID
Display	High-definition LCD
Timer	1 to 9999min
Internal Material	High-quality brushed stainless steel
External Material	Electro-galvanized steel with antimicrobial powder coating
Safety Device	Leakage protector, over temperature visible & audible alarm
Power Consumption	2100 W
Power Supply	AC 220/110V, 50/60Hz
Internal Dimensions	500 × 615 × 720 mm
External Dimensions	650 × 800 × 1130 mm
Packaging Dimensions	780 × 920 × 1270 mm
Net Weight	85 kg
Gross Weight	110 kg

APPLICATIONS

Forced Air Drying Oven is used for precise drying of temperature-sensitive materials, ensuring uniformity and quality. It finds applications across industries such as pharmaceuticals, food processing, and materials research.

STANDARD ACCESSORIES

2 Shelves

OPTIONAL ACCESSORIES

Shelves (23)

LCD instrument (display screen + controller)

Test Hole (Φ25,50,80mm)
