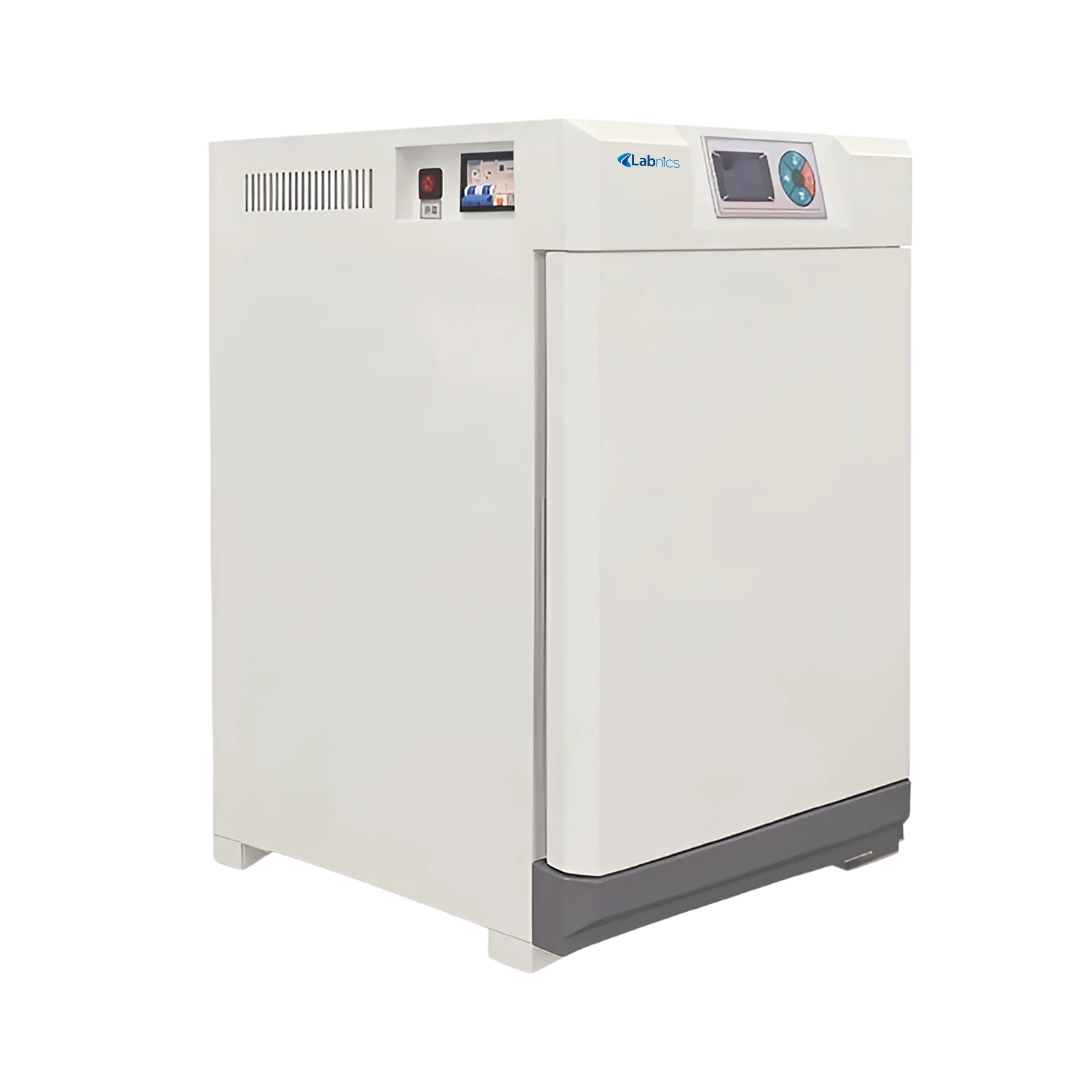

Forced Air Drying Oven NFDO-102

Forced Air Drying Oven NFDO-102

Forced Air Drying Oven NFDO-102

Forced Air Drying Oven NFDO-102 integrates a PID controller for precise temperature regulation and operates with a spacious capacity of 240 L. It features a high-efficiency compressor for stable temperature control and reduced power consumption. Our drying oven employs back suction and bottom vertical air supply for efficient circulation and uniform heat distribution. It is equipped with a large-screen LCD for real-time display and monitoring of parameters.

Specifications
Capacity 240 L
Circulation Mode Forced convection
Temperature Range RT+10 to 250℃
Temperature Fluctuation ± 0.5℃
Temperature Resolution ± 0.1℃
Temperature Uniformity ± 2.5%℃
Temperature Sensor PT100
Controller PID
Display High-definition LCD
Timer 1 to 9999min
Internal Material High-quality brushed stainless steel
External Material Electro-galvanized steel with antimicrobial powder coating
Safety Device Leakage protector, over temperature visible & audible alarm
Power Consumption 2100 W
Power Supply AC 220/110V, 50/60Hz
Internal Dimensions 500 × 615 × 720 mm
External Dimensions 650 × 800 × 1130 mm
Packaging Dimensions 780 × 920 × 1270 mm
Net Weight 85 kg
Gross Weight 110 kg
Features
Applications

Forced Air Drying Oven is used for precise drying of temperature-sensitive materials, ensuring uniformity and quality. It finds applications across industries such as pharmaceuticals, food processing, and materials research.

Standard Accessories

2 Shelves

Optional Accessories

Shelves (23)


LCD instrument (display screen + controller)
Test Hole (Φ25,50,80mm)
