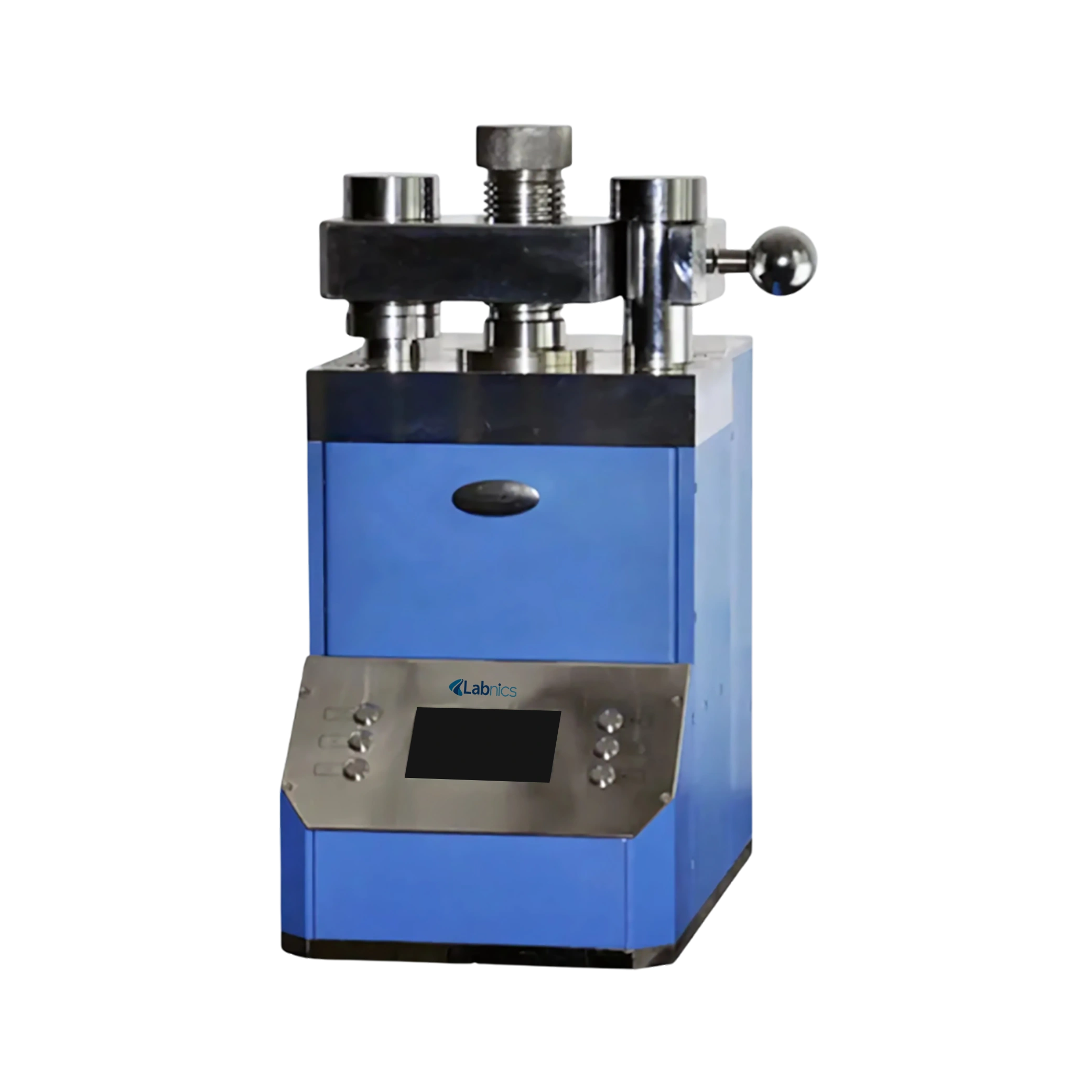

Automatic XRF Press NAXRF-100 is a motor-driven pellet press with a high-pressure range of 1-30 Ton. It features a pressure holding time of ≥1 second with no upper limit, ensuring uniform and compact pellets. This machine offers automated pressing cycles to reduce manual effort and improve productivity. It is equipped with an automatic operation system for efficient XRF sample preparation. Our model is built with enclosed pressing chamber which enhances safety and minimizes contamination.
$45,500.00
Specifications
| Pressure Range | 1 to 30.0 T |
| Pressure holding time | ≥1S (has no limit) |
| Pressurization process | Program pressurization-Program holding -Timed pressure release- Automatic Sample release |
| Intensity conversion | Automatic conversion of die pressure |
| LCD | 4.3” LCD Screen |
| Built-in mold | Boric acid / steel ring / plastic ring mold |
| Sample size | Sample size standard configuration 40m |
| Mold material | 440C mold steel |
| Demoulding method | Automatic release |
| Power Consumption | 550W |
| Power Supply | 110V, 60 Hz |
| Dimensions (L×W×H) | 250 × 390 × 460 mm |
| Weight | 120 kg |
Features
Applications
Ask Expert
Automatic XRF Presses are an advanced machine designed for efficient pellet preparation. These presses operate with a fully automatic hydraulic system. These units are equipped with a touchscreen interface for easy operation. These systems ensure consistent pellet quality with minimal human intervention. Our models are built with enclosed pressing chamber which enhances safety and minimizes contamination.
