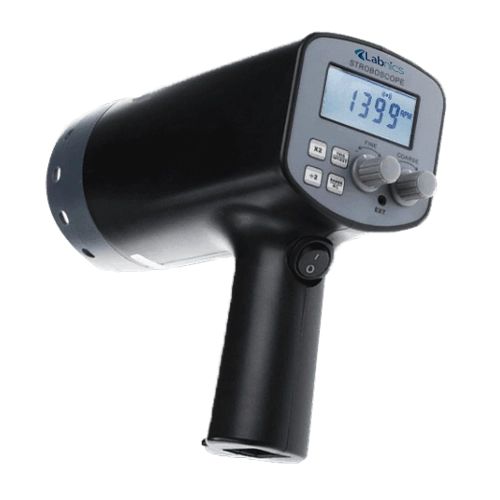

Stroboscope NSBS-200 is a device used to make a cyclically moving object appear to be slow-moving object or to determine its rotary speed or vibration frequency. It ranges 50 to 12,000 FPM and is capable to provide images of single, two or multiple stillness for vibration objects also it uses photoelectric signal while external triggering, achieve the automatic tracking function of the pattern
|Range||50 to 12,000 FPM|
|Resolution||0.1 FPM (50 to 999.9 FPM) 1 FPM (Over 1000 FPM)|
|Accuracy||± (0.05 % n + 1 d)|
|Sampling time||0.3 seconds|
|External Trigger level||3 to 24 V|
|H/L Range||Flashing light is much brighter at low range than at high range|
|Flash Tube Life||100 Million Times|
|Temperature||0 to 40°C|
|Humidity||˂ 85 % RH|
|Dimension||215 × 85 × 180 mm|
|Power supply||AC 220 V/ 50 Hz|
|Power consumption||About 50 W|
The stroboscope is designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the movement. It is especially used in printing and textile industries and to observe the movement tracks.
