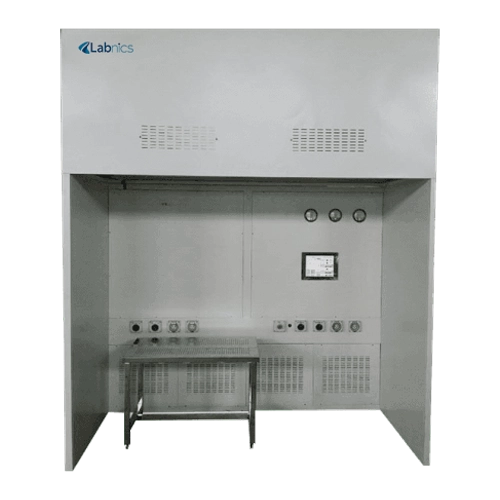

Weighing Booth NWB-203
Weighing Booth NWB-203 is a dedicated local purification device for filling, refilling, weighing and sampling of raw material and compounds. Designed by automatic changeable frequency system monitors the air velocity to ensure its stability in the work area also the air dust effectively controls the noise. The wind surface is a high polymer membrane, and the wind speed can be controlled at 5% to 10%. Different pressure gauge is equipped to real-time monitor the filters
| Work Area Size (W×D×H) | 1500 × 1000 × 2000 mm |
| Overall Size(W×D×H) | 1600×1400×2400 mm |
| Power Consumption | 1100 W |
| Weight | 550 kg |
| HEPA Filters | 99.999 % efficiency at 0.3 µm |
| Air volume |
Supply air volume: ≤ 7500 m3 Exhaust air volume: ≤ 2250 m3; Adjustable |
| Air velocity | 0.35 to 0.65 m/s, adjustable |
| Material | Fully stainless steel 1.2 mm |
| Noise | ≤ 75 dB |
| Illumination | ≥ 8001 UX |
| UV Lamp | Emission of 253.7 nm |
| Power Supply | 110/220 V ± 10 % 50/60 Hz |
This instrument is applied for pharmaceutical, microbiological, scientific experiments, food industries and hospital operating rooms
Before debugging, we must verify that the connection of the wires is correct, and the debugging personnel to be familiar with the instrument. And we should read the instruction carefully.
