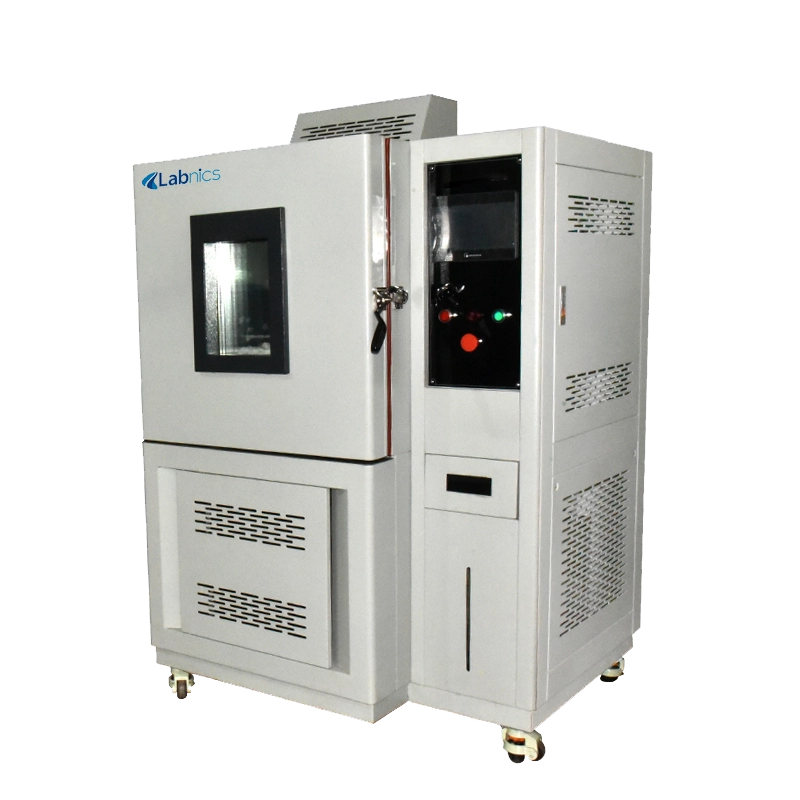

Environmental Test Chamber NETC-306
Environmental Test Chamber NETC-306 also known as climate chamber or climatic chamber is a controlled, artificial chamber that simulates or mimics environmental conditions such as temperature, humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the test’s sample performance.
| Capacity | 800 L |
| Temperature range | -70°C ~150°C |
| Humidity range | 20%RH ~ 98%RH |
| Temperature fluctuation | ± 0.5°C |
| Temperature accuracy | ≤ 2.0°C |
| Humidity accuracy | ± 2/3% RH (>75%RH); ± 5% RH (<75%RH） |
| Heating speed | 3°C/min |
| Cooling speed | 0.8°C-1.2°C/min |
| Display accuracy | ≤ 2% |
| Load division value | 0.01°C |
| No. of shelves | 03 |
| Internal material | SS 304, 1.0 mm thick stainless-steel plate |
| External material | Electrostatically sprayed 1.2 mm cold-rolled steel plate |
| Insulation material | 105 mm thick fibre cotton |
| User interface | USB connector |
| Working temperature | +5°C~35°C |
| Power consumption | 12 kW |
| Power supply | AC 380/220 ±10V; 50Hz |
| Internal dimension | 800 × 1000 × 1000 mm |
| Overall dimension | 1300 × 1500 × 2100 mm |
| Weight | 700 kg |
Widely employed in medicine, pharma, food processing, food packaging, consumer goods and services, automotive, engineering, and construction industries.
| Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
| Temperature resolution ratio | 0.1 ˚C |
| Temperature motion | +1 ˚C |
| Temperature uniformity | +1.0 ˚C |
| Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
| Temperature resolution ratio | 0.1 ˚C |
| Temperature motion | +1 ˚C |
| Temperature uniformity | +1.0 ˚C |
| Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
| Temperature resolution ratio | 0.1 ˚C |
| Temperature motion | +1 ˚C |
| Temperature uniformity | +1.0 ˚C |
| Capacity | 50 L |
| Temperature range | (- 20 °C) to 150 °C |
| Low type | I – 40 °C, II – 70 °C |
| Environmental condition | 5 ℃ ~ + 40 ℃ ≤ 85 % RH |
| Capacity | 100 L |
| Temperature range | (-20) ℃ to 150 ℃, (-40) ℃ to 150 ℃, (-70 ) ℃ to 150 ℃ |
| Temperature cooling rate | 1 ℃ / min |
| Temperature heating rate | 3 ℃ / min |
| Capacity | 80 L |
| Temperature Range | -20 ℃ to +150 ℃ |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
