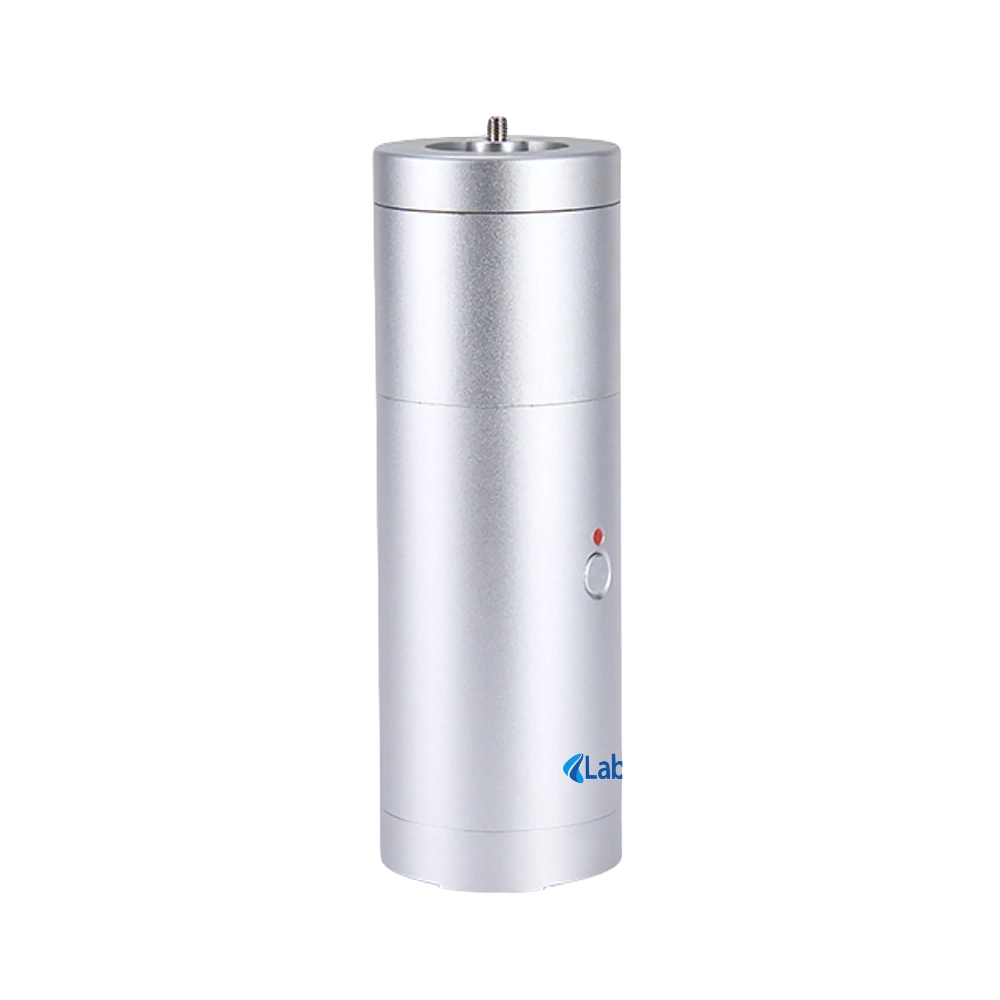

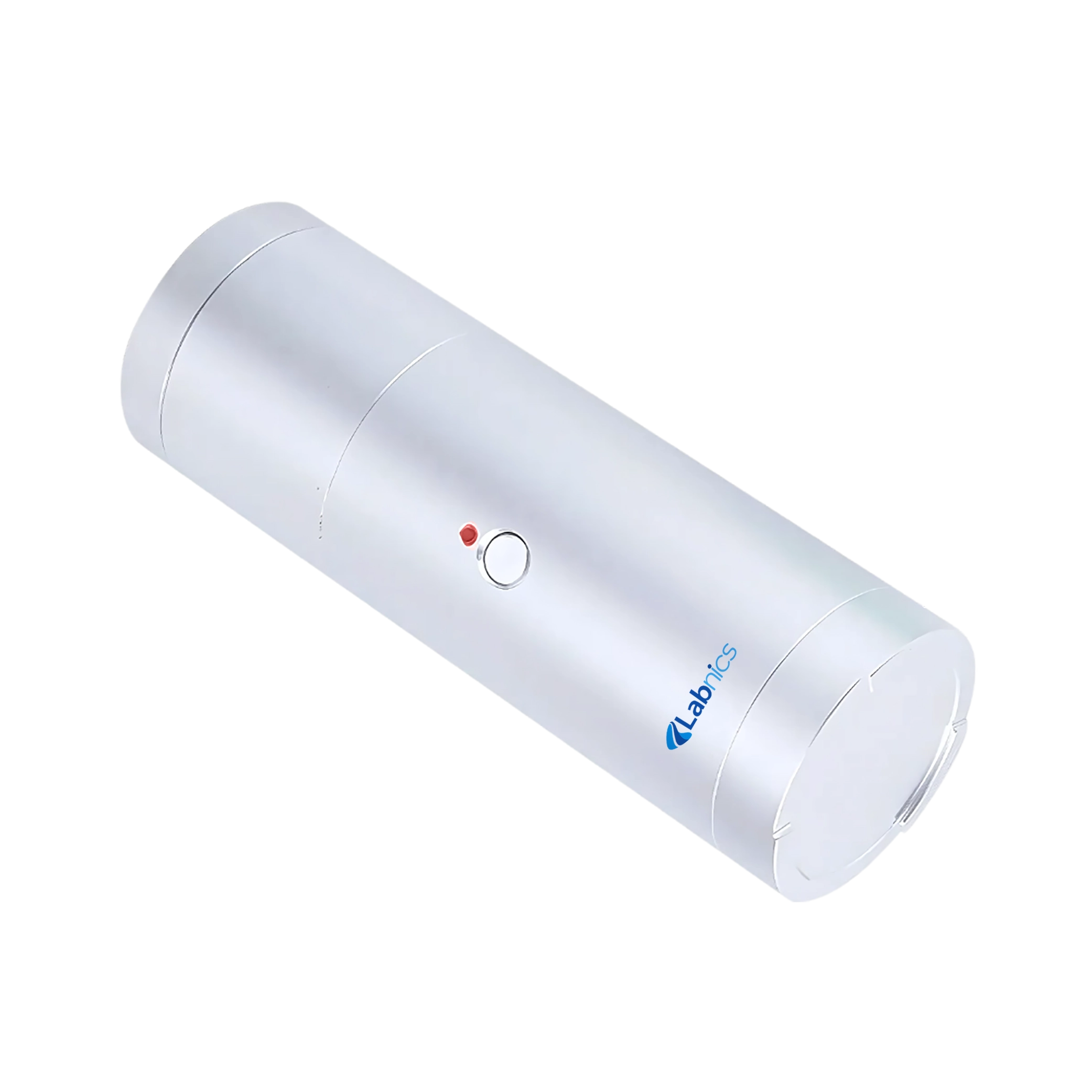

Vibration Calibrator NVRC-100

Name: Vibration Calibrator NVRC-100
Brand: Fison
SKU: NVRC-100
Rating: 4.9 (976 reviews)

Vibration Calibrator NVRC-100 operates at a fixed frequency of 159.2 Hz ± 0.5%, enabling consistent calibration checks. It provides a precise RMS vibration output, allowing for quick and accurate performance assessments of vibration meters. This unit can drive vibration sensors weighing up to 150g, making it suitable for various applications. It functions within a temperature range of -10°C to 40°C and humidity levels up to 85% RH. Our calibrator is powered by four 1.5V AA batteries, ensuring convenient operation.

$1,575.00

Catalog

Specifications

Operating frequency	159.2Hz±0.5%
Acceleration output	14.14m/s2 (Peak) ±3%
Velocity output	10mm/s2 (RMS) ±3%
Displacement output	28um (Peak-Peak) ±4%
Transverse output	< 5%
Distortion	< 3%
Maximum load	150g
Operating temperature	-10 to 40°C
Operating humidity	85% RH (non-condensing)
Ramp-up time	< 3 secs
Power supply	4×1.5V AA (UM-3) Battery
Dimension	56×200mm
Weight	960g (including batteries)

Features

Compact and portable design
Fast ramp-up time of 3 secs
CE compliant for safety standards
Safe and easy-to-use operation
Low maintenance and cost-effective
Compatible with various vibration sensors

Applications

Vibration Calibrator NVRC-100 is used to ensure the accuracy and reliability of vibration meter measurement. It is used in various industries, including aerospace, automotive, manufacturing, research and development, and quality control laboratories, to maintain the integrity of vibration testing and monitoring systems.
