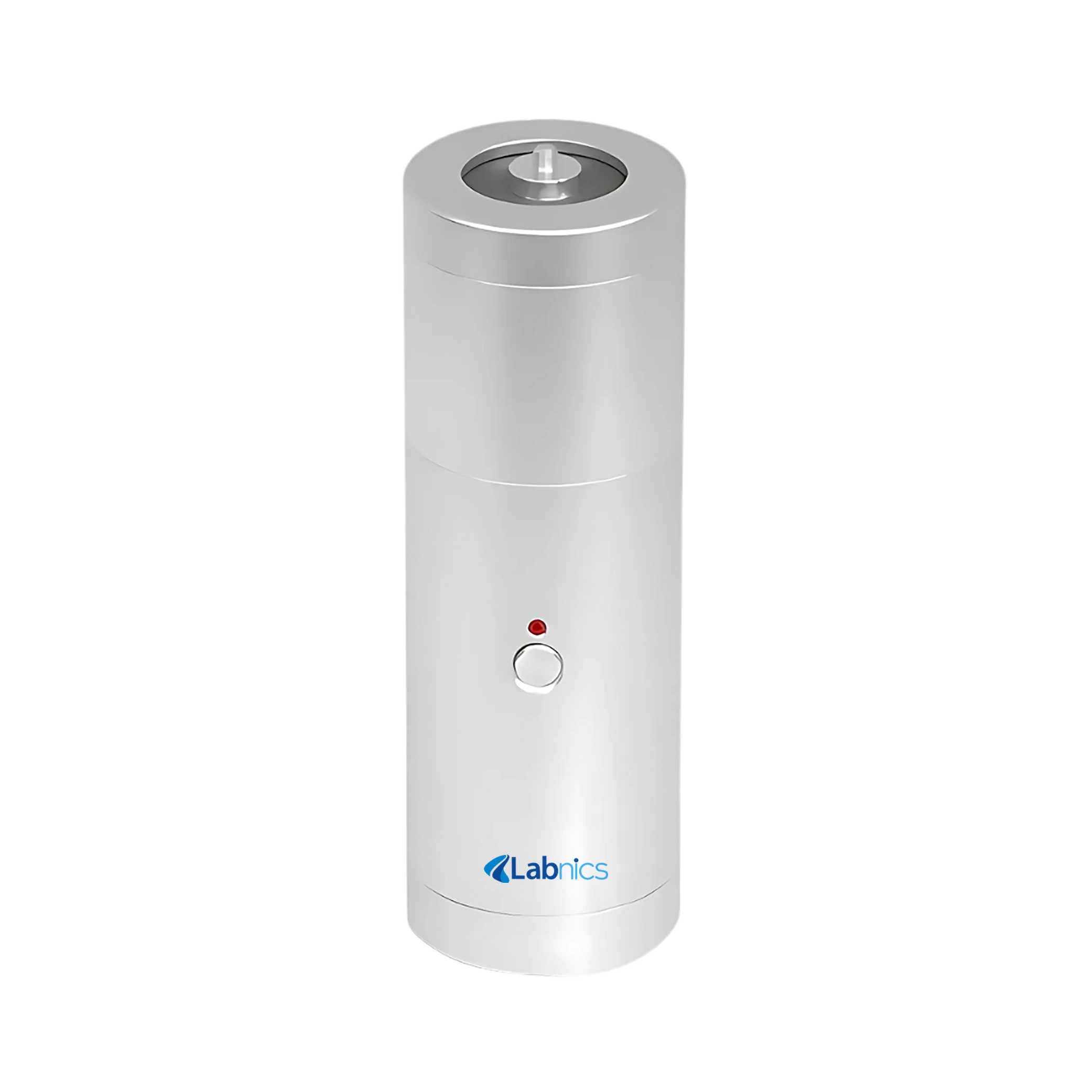

Vibration Calibrator NVRC-100 operates at a fixed frequency of 159.2 Hz ± 0.5%, enabling consistent calibration checks. It provides a precise RMS vibration output, allowing for quick and accurate performance assessments of vibration meters. This unit can drive vibration sensors weighing up to 150g, making it suitable for various applications. It functions within a temperature range of -10°C to 40°C and humidity levels up to 85% RH. Our calibrator is powered by four 1.5V AA batteries, ensuring convenient operation.
| Operating frequency | 159.2Hz±0.5% |
| Acceleration output | 14.14m/s2 (Peak) ±3% |
| Velocity output | 10mm/s2 (RMS) ±3% |
| Displacement output | 28um (Peak-Peak) ±4% |
| Transverse output | < 5% |
| Distortion | < 3% |
| Maximum load | 150g |
| Operating temperature | -10 to 40°C |
| Operating humidity | 85% RH (non-condensing) |
| Ramp-up time | < 3 secs |
| Power supply | 4×1.5V AA (UM-3) Battery |
| Dimension | 56×200mm |
| Weight | 960g (including batteries) |
Vibration Calibrator NVRC-100 is used to ensure the accuracy and reliability of vibration meter measurement. It is used in various industries, including aerospace, automotive, manufacturing, research and development, and quality control laboratories, to maintain the integrity of vibration testing and monitoring systems.
