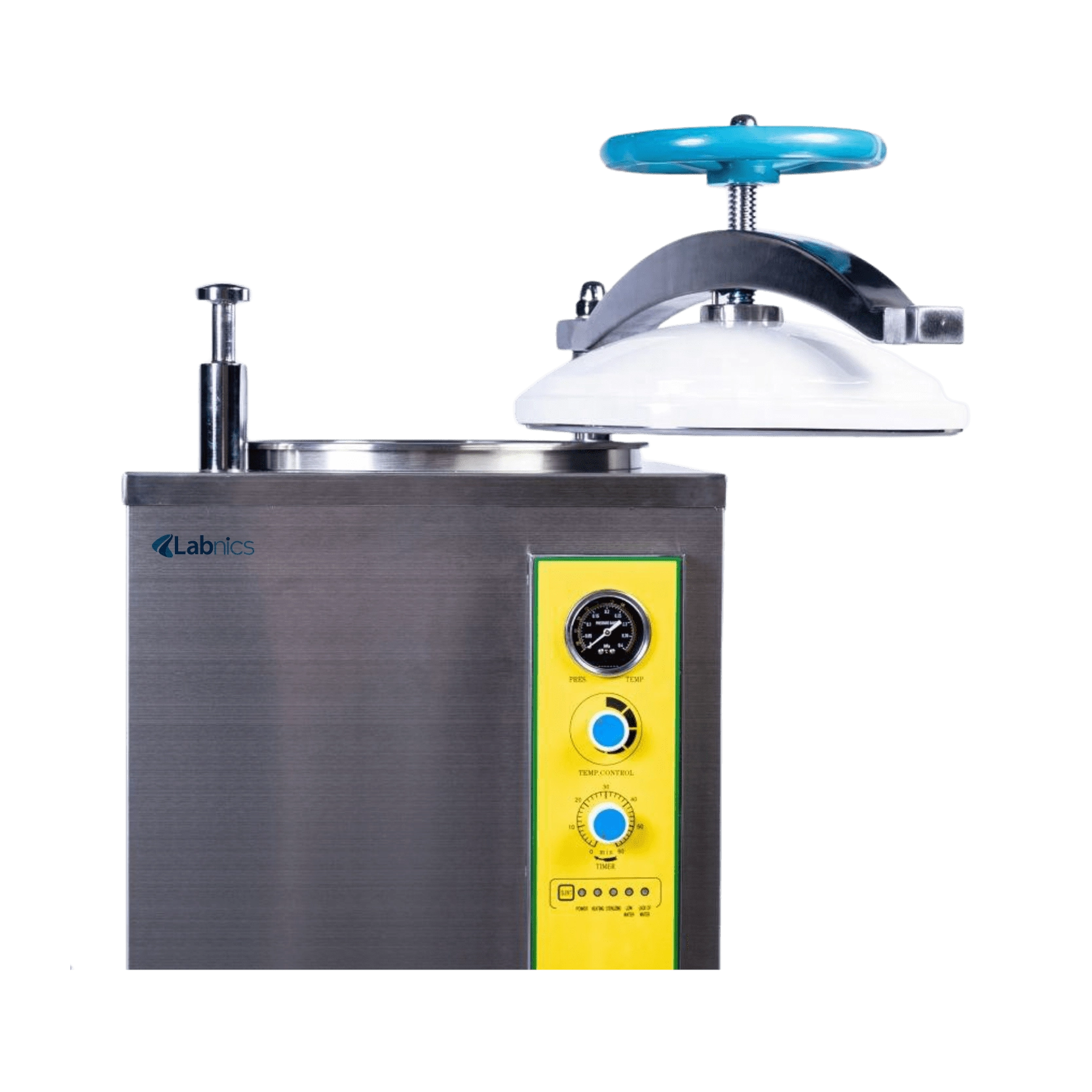

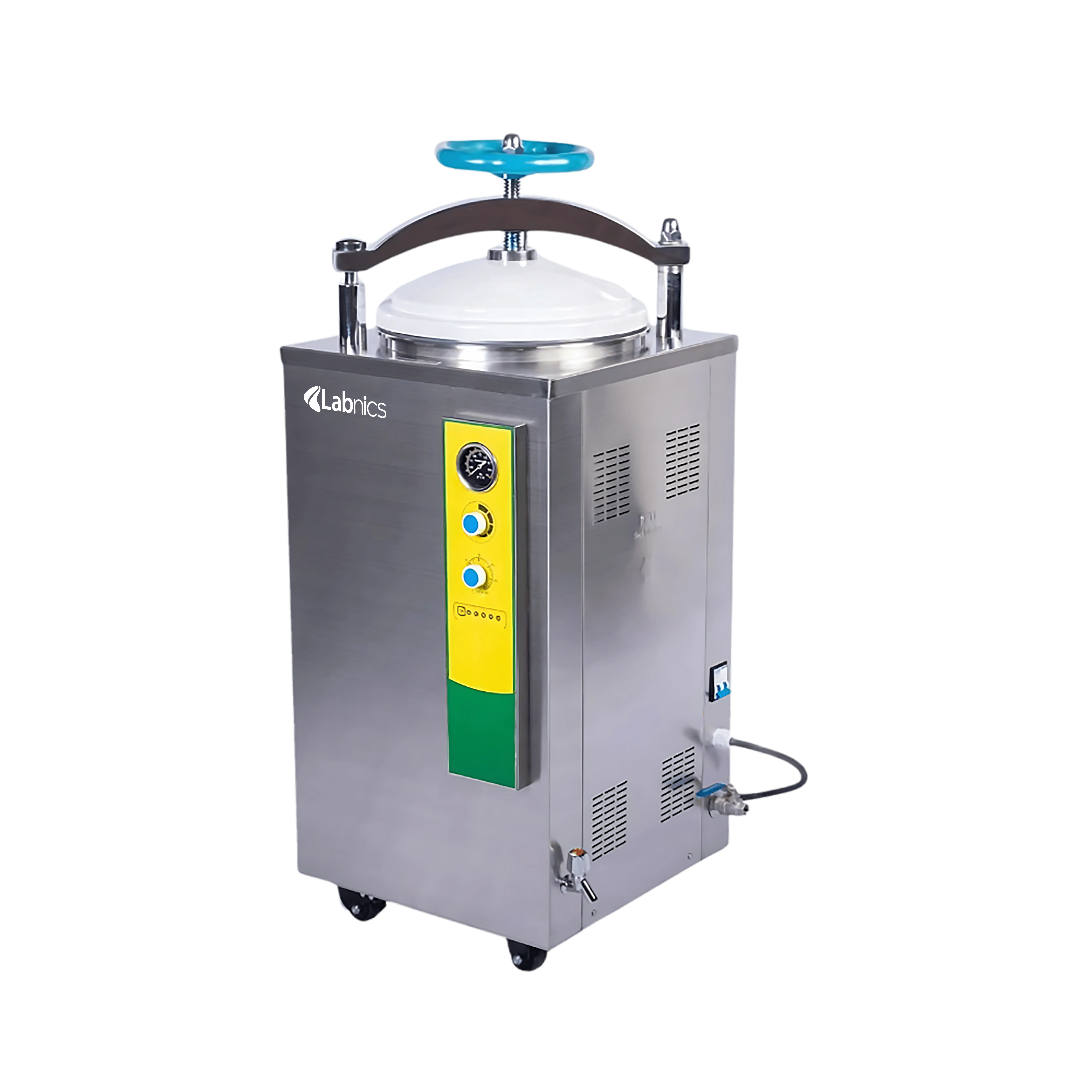

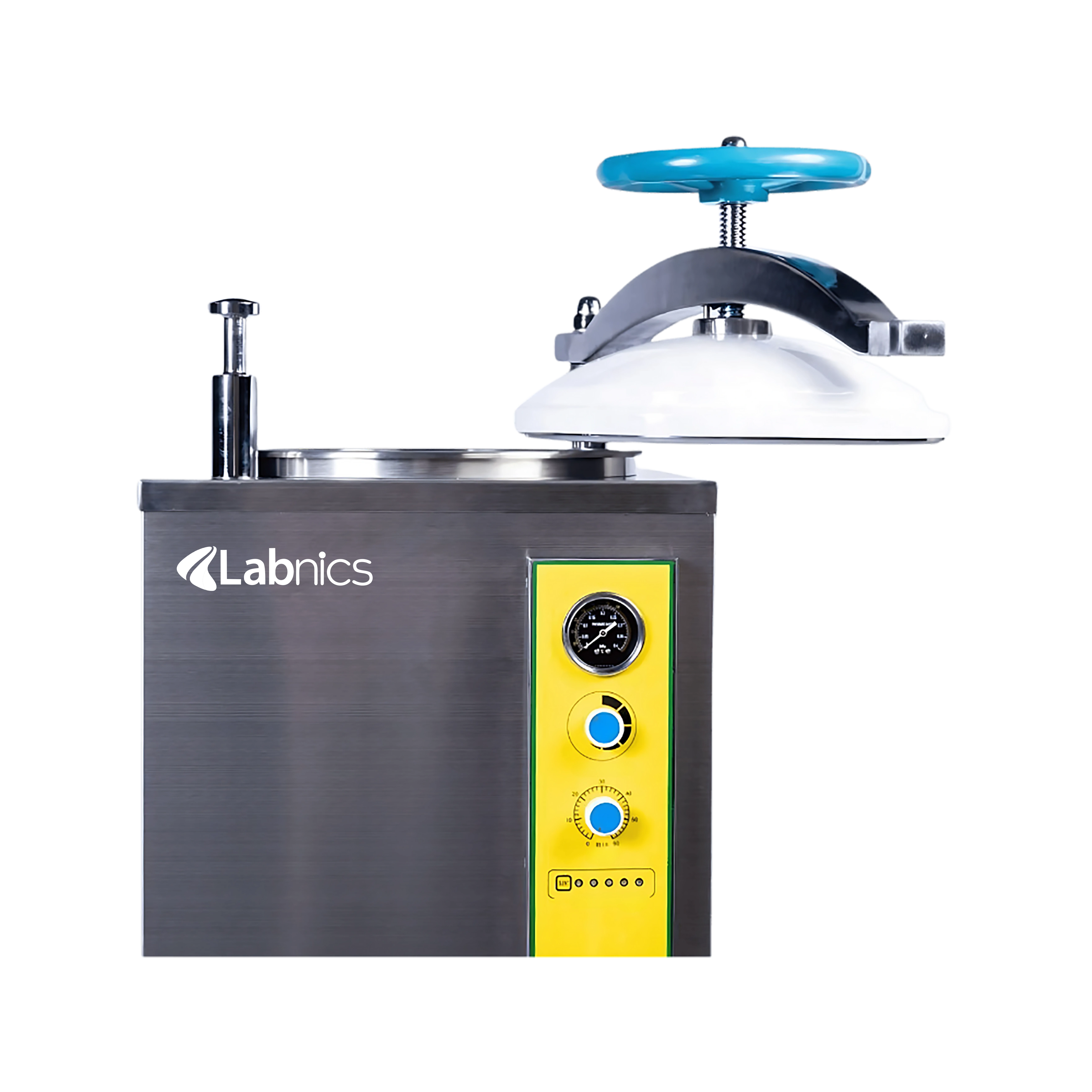

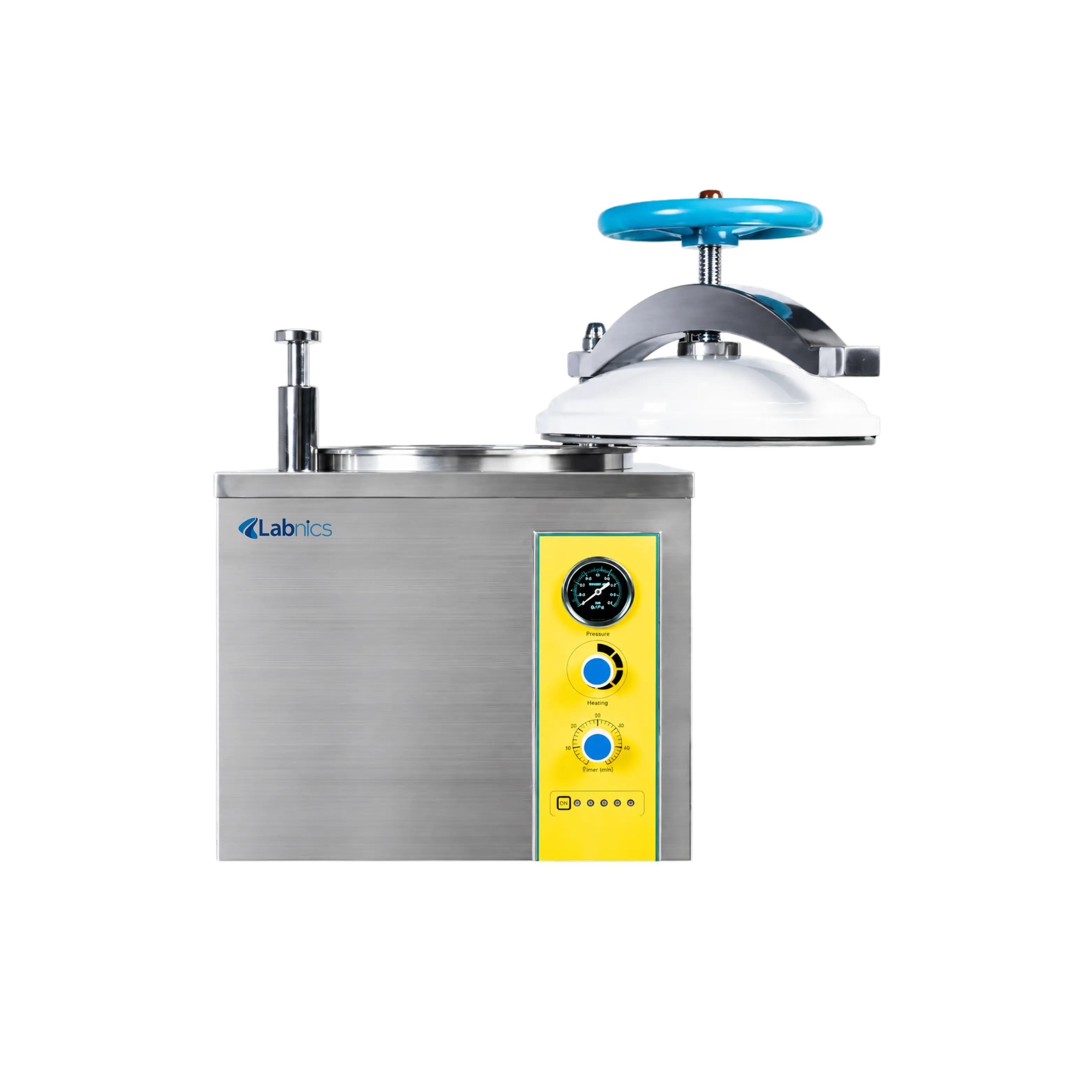

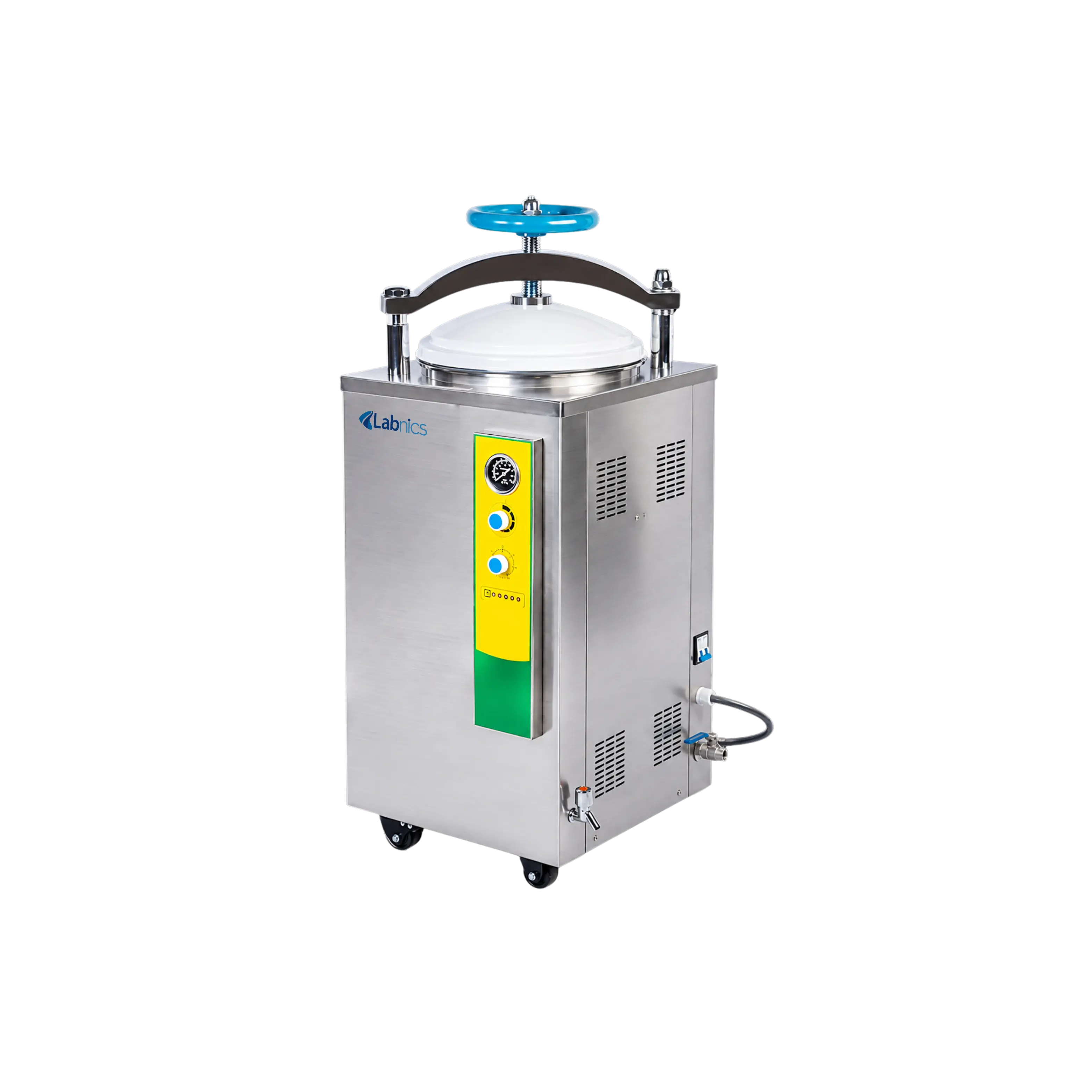

Vertical Autoclave NVA-206

Vertical Autoclave NVA-206

Vertical Autoclave NVA-206 features a 75L capacity, providing efficient sterilization for various applications. It is made with high-quality stainless steel, offering resistance to corrosion and wear. This unit has a pressure safety lock that prevents the door from opening while pressurized. It automatically shuts off and emits a beep when the sterilization cycle is complete, ensuring safe operation. Our vertical autoclave includes an indicator light to show the current working state.


Catalog

Specifications

Capacity 75L
Chamber volume 400×600mm
Working temperature 134°C
Working pressure 0.22Mpa
Temperature range 105°C to 134°C
Maximum working pressure 0.23Mpa
Heat average ≤±1°C
Timer range 0 to 60 min
Body Stainless steel
Door Wheel-type, quick-open door
Total CBM 0.48CBM
Power consumption 3×1.5kW
Power supply AC220V, 50Hz
Overall dimension 550×530×1180mm
Packaging dimension 610×610×1280mm
Gross weight 113kg
Net weight 93kg

Features

  • Self-inflating airtight seal
  • Easy to operate
  • Standard sterilizing baskets
  • Quick door operation
  • Built-in safety mechanisms
  • User-friendly interface

Applications

  • Vertical Autoclave NVA-206 is used for sterilizing equipment, instruments, and materials to ensure hygiene and eliminate harmful microorganisms. It is commonly used in medical, laboratory, pharmaceutical, and industrial settings.

Ask Expert

Related Models Of Vertical Autoclaves

Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.

Vertical Autoclave NVA-100

Capacity 35 L
Body 304 Stainless Steel
Door Wheel-type, Quick-open door
Catalog

Vertical Autoclave NVA-102

Capacity 75 L
Body 304 Stainless Steel
Door Wheel-type, Quick-open door
Catalog

Vertical Autoclave NVA-103

Capacity 100 L
Body 304 Stainless Steel
Door Wheel-type, Quick-open door
Catalog
Vertical Autoclave NVA-104
Capacity 120 L
Body 304 Stainless Steel
Door Wheel-type, Quick-open door
Catalog
Vertical Autoclave NVA-105
Capacity 150 L
Body 304 Stainless Steel
Door Wheel-type, Quick-open door
Catalog

Vertical Autoclave NVA-101

Capacity 50 L
Chamber Dimension Φ 340 × 550 mm
Working Pressure 0.23MPa
Catalog

Vertical Autoclave NVA-200

Capacity 35L
Chamber volume 318×450mm
Working temperature 134°C
Catalog

Vertical Autoclave NVA-201

Capacity 50L
Chamber volume 340×550mm
Working temperature 134°C
Catalog
Vertical Autoclave NVA-202
Capacity 75L
Chamber volume 400×600mm
Working temperature 134°C
Catalog
Vertical Autoclave NVA-203
Capacity 100L
Chamber volume 440×650mm
Working temperature 134°C
Catalog

Vertical Autoclave NVA-300

Capacity 50L
Chamber volume 340×550mm
Working temperature 134°C
Catalog

Vertical Autoclave NVA-301

Capacity 75L
Chamber volume 400×600mm
Working temperature 134°C
Catalog

Vertical Autoclave NVA-302

Capacity 100L
Chamber volume 440×650mm
Working temperature 134°C
Catalog
Vertical Autoclave NVA-303
Capacity 35L
Chamber volume 318×450mm
Working temperature 134°C
Catalog
Vertical Autoclave NVA-204
Capacity 35L
Chamber volume 318×450mm
Working temperature 134°C
Catalog

Horizontal Autoclaves

Labnics Horizontal Autoclave includes safety features such as over-temperature and pressure protection. They offer automatic-controlled functions for smooth and efficient sterilization operations. These autoclaves have a drying option for the complete drying of items after the process. They include an automatic shutdown control after sterilization for safety. Our units are equipped with LED displays for clear and easy monitoring.

Horizontal Autoclave NHA-100

Capacity 150 L
Body 304 Stainless Steel
Chamber Volume ∮ 440 × 1000 mm
Catalog

Horizontal Autoclave NHA-101

Capacity 200 L
Body 304 Stainless Steel
Chamber Volume ∮ 515 × 1000 mm
Catalog
Horizontal Autoclave NHA-102
Capacity 280 L
Body 304 Stainless Steel
Chamber Volume ∮ 600 × 1000 mm
Catalog

Tabletop Autoclaves

Labnics Tabletop Autoclave offers an automatic pressure-temperature control system for optimal sterilization conditions. They have an automatic shutdown mechanism that activates after the sterilization cycle. These autoclaves include a safety lock function for secure closure during operation. Our units feature a durable construction that ensures long-lasting and reliable performance. They have a user-friendly interface with digital displays and touch-type controls for easy handling.

Tabletop Autoclave NTTA-100
Capacity 20 L
Body 304 Stainless-steel
Type Front loading
Catalog

Tabletop Autoclave NTTA-101

Capacity 24 L
Body 304 Stainless-steel
Type Front loading
Catalog

Tabletop Autoclave NTTA-102

Capacity 35 L
Body 304 Stainless-steel
Type Front loading
Catalog

Portable Autoclave

Labnics Portable Autoclaves offers a range of capacities to suit various sterilization needs. They feature a fully stainless-steel design for enhanced durability. These autoclaves include an LED display for easy monitoring of the working status. Our units offer a quick-opening door with a hand-wheel structure for smooth operation. They ensure safe operation with automatic shut-off and a beep sound after sterilization.

Portable Autoclave NVTA-200
Capacity 18 L
Chamber Volume ∮ 280 × 260 mm
Working Pressure 0.14 to 0.16 Mpa
Catalog
Portable Autoclave NVTA-201
Capacity 24 L
Chamber Volume ∮ 280 × 390 mm
Working Pressure 0.14 to 0.16 Mpa
Catalog

Cassette Autoclave

Labnics Cassette Autoclave features stainless steel construction providing durability and corrosion resistance. They have user-friendly controls that allow for easy and intuitive operation. They include adjustable temperature settings for precise control. These autoclaves include alarms and interlocks for enhanced safety and reliability. Our units provide optimal performance with minimal maintenance.

Cassette Autoclave NCAC-100

Chamber volume 6 L
Sterilization temperature 115 ℃ to 135 ℃ (Selectable)
Ambient temperature 5 to 40 ℃
Catalog

Cassette Autoclave NCAC-101

Chamber Capacity 5.2 L
Maximum Steam Temperature 138 ℃
Water Tank Volume 3.4L
Catalog

Vacuum Autoclave

Labnics Vacuum Autoclave includes automatic systems for water supply and steam injection, enhancing operational efficiency. They have a lifting door with removable racks for easy access and efficient loading. They feature alarms to indicate high temperature and pressure conditions for enhanced safety. These Vacuum Autoclaves include sensors for monitoring operational parameters for safe and efficient operation. Our units are equipped with a touchscreen control system that simplifies operation.

Vacuum Autoclave NVAC-100
Capacity 250 L
Working Pressure 0.00 to 3.50 bar
Working Temperature 100℃ to 135℃
Catalog
