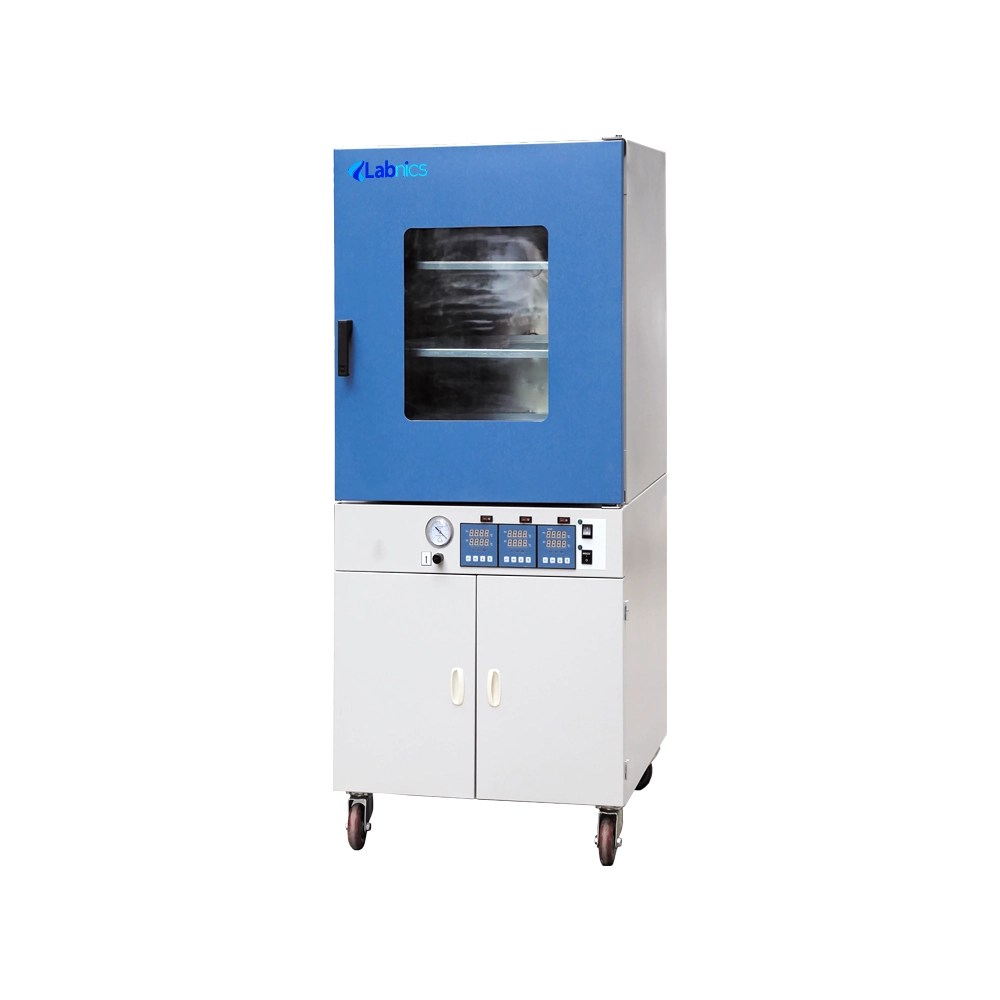

Vacuum Drying Oven NVDO-102

Vacuum Drying Oven NVDO-102

Vacuum Drying Oven NVDO-102

Vacuum Drying Oven NVDO-102 maintains a temperature range of RT +20°C to 200°C for controlled thermal processing. It includes a digital display for easy temperature monitoring and adjustment. Employs a "D" series liquid crystal controller with advanced ten-segment programmability. Features a rectangular chamber that maximizes usable space for efficient material placement and drying. Our oven achieves and retains the vacuum with an integrally molded silicone rubber door seal ring.

Specifications
Temperature Range RT+20 to 200℃
Ambient Temperature +5 to 40℃
Temperature Resolution 0.1℃
Temperature Stability ± 1 ˚C
Temperature Accuracy ± 3°C to 100°C
Temperature Sensor PT-100Ω
Vacuum Pressure < 133 Pa
Shelves 6 pieces
Shelves Material Stainless steel
External Material Baking
Inner Chamber Materials Stainless steel
Insulation Material Polyurethane
Window Glass Thickness About 19mm
Timing Range 1 to 9999 minutes
Power Consumption 1500W
Power Supply AC 220 V, 50 Hz
Internal Dimensions (W×D×H) 450 × 450 × 450 mm
External Dimensions (W×D×H) 765 × 660 × 650 mm
Weight 145 Kg
Features
Applications

Vacuum Drying Oven is designed for drying delicate and reactive substances, with internal inert gas capability for drying complex compositions. It is widely used in pharmaceutical, electronic and chemical industries.

Standard Accessories

Vacuum Pump


Thermostat Sensor
Heating Tube
Solenoid Value

Buy Now

Vacuum Drying Oven

Labnics Vacuum Drying Oven offer a broad temperature range, ensuring versatility for a wide range of heating and drying needs. They include overheat and overload protection features for enhanced safety and durability. Our units facilitate easy connectivity for rapid data processing and analysis. They are equipped with digital displays for precise monitoring of temperature and settings. These ovens are crafted from stainless steel for durability and easy cleaning.


Labnics Commercial Microwave Oven utilize high-power microwave generators to ensure uniform heat distribution for efficient heating. They are equipped with LCD screens that display real-time operational status for convenient monitoring. Our ovens feature durable stainless steel construction, ensuring longevity and resistance to corrosion. They feature conventional round turntable plates that facilitate even heating by rotating.

Commercial Microwave Oven NCMO-100

Capacity 35L
Microwave leakage ≤ 5MW /cm<sup>2</sup>
Motor speed 5R / min
Motor power 14W

Labnics Drying Oven are equipped with advanced temperature regulation systems for accurate and consistent temperature control. They include digital displays, providing precise monitoring and maintaining stable drying conditions. Our drying ovens feature safety features such as alarms and lockable doors, ensuring secure operation. They include a self-diagnostic function, enabling real-time adjustment of settings for enhanced performance and reliability.

Drying Oven NDO-100
Internal material Stainless Steel
Volume 10L
Interior Dimensions (W × L × H) 200 × 200 × 250 mm
Exterior Dimensions (W × L × H) 490 × 320 × 420 mm
Drying Oven NDO-101
Internal material Stainless Steel
Volume 15L
Interior Dimensions (W × L × H) 250 × 250 × 250 mm
Exterior Dimensions (W × L × H) 530 × 370 × 420 mm

Drying Oven NDO-102

Internal material Stainless Steel
Volume 20L
Interior Dimensions (W × L × H) 300 × 250 × 300 mm
Exterior Dimensions (W × L × H) 580 × 370 × 470 mm

Drying Oven NDO-103

Internal material Stainless Steel
Volume 25L
Interior Dimensions (W × L × H) 300 × 280 × 300 mm
Exterior Dimensions (W × L × H) 580 × 400 × 470 mm

Drying Oven NDO-104

Internal material Stainless Steel
Volume 30L
Interior Dimensions (W × L × H) 300 × 300 × 350 mm
Exterior Dimensions (W × L × H) 580 × 420 × 520 mm
Drying Oven NDO-105
Internal material Stainless Steel
Volume 42L
Interior Dimensions (W × L × H) 350 × 350 × 350 mm
Exterior Dimensions (W × L × H) 630 × 470 × 520 mm
Drying Oven NDO-106
Internal material Stainless Steel
Volume 50L
Interior Dimensions (W × L × H) 350 × 350 × 410 mm
Exterior Dimensions (W × L × H) 630 × 470 × 580 mm

Drying Oven NDO-107

Internal material Stainless Steel
Volume 70L
Interior Dimensions (W × L × H) 350 × 450 × 450 mm
Exterior Dimensions (W × L × H) 630 × 570 × 620 mm

Drying Oven NDO-108

Internal material Stainless Steel
Volume 80L
Interior Dimensions (W × L × H) 400 × 450 × 450 mm
Exterior Dimensions (W × L × H) 680 × 570 × 620 mm

Drying Oven NDO-109

Internal material Stainless Steel
Volume 100L
Interior Dimensions (W × L × H) 450 × 450 × 500 mm
Exterior Dimensions (W × L × H) 730 × 570 × 670 mm
Drying Oven NDO-110
Internal material Stainless Steel
Volume 136L
Interior Dimensions (W × L × H) 550 × 450 × 550 mm
Exterior Dimensions (W × L × H) 830 × 570 × 720 mm
Drying Oven NDO-111
Internal material Stainless Steel
Volume 225L
Interior Dimensions (W × L × H) 600 × 500 × 750 mm
Exterior Dimensions (W × L × H) 850 × 620 × 920 mm

Drying Oven NDO-202

Capacity 36 L
Temperature range Ambient ~ 280 ℃
Internal dimension (W × D × H) 340 × 340 × 320 mm
External dimension (W × D × H) 620 × 530 × 490 mm

Drying Oven NDO-203

Capacity 80 L
Temperature range Ambient ~ 280 ℃
Internal dimension (W × D × H) 450 × 400 × 450 mm
External dimension (W × D × H) 740 × 618 × 630 mm

Drying Oven NDO-207

Capacity 136 L
Temperature range Ambient ~ 300 ℃
Internal dimension (W × D × H) 550 × 450 × 550 mm
External dimension (W × D × H) 730 × 840 × 670 mm
Drying Oven NDO-208
Capacity 225 L
Temperature range Ambient ~ 250 ℃
Internal dimension (W × D × H) 600 × 500 × 750 mm
External dimension (W × D × H) 710 × 1000 × 1000 mm
Drying Oven NDO-204
Capacity 45L
Temperature Range RT+10℃ to 300℃
Temperature Precision 0.1℃
Temperature Uniformity ≤Max Temp.±2.5%

Labnics Forced Air Drying Oven utilize advanced microprocessor-controlled temperature systems to maintain precise and reliable drying conditions. They feature easily removable and adjustable shelves for effortless maintenance. Our ovens feature LCDs for real-time parameter controlling and display, providing clear visibility. They include an auto-diagnostic function for monitoring and error detection, ensuring consistent performance.

Forced Air Drying Oven NFDO-100

Capacity 30 L
Temperature Range RT+10°C to 300 °C
Ambient Temperature 5 °C to 40 °C
Time range 1 to 9999 min

Forced Air Drying Oven NFDO-101

Capacity 220 L
Temperature Range RT+10°C to 300 °C
Temperature Uniformity ± 3 %
Ambient Temperature 5 °C to 40 °C
Forced Air Drying Oven NFDO-102
Capacity 240 L
Circulation Mode Forced convection
Temperature Range RT+10 to 250℃
Temperature Fluctuation ± 0.5℃
Forced Air Drying Oven NFDO-103
Capacity 270 L
Temperature Range RT + 10℃ to 300℃
Temperature Precision 0.1℃
Temperature Uniformity ≤ Maximum Temperature ± 2.5%

Labnics Gravity Convection Oven ensure uniform results with even heat regulation, providing reliable performance. These ovens offer enhanced efficiency through a timing function for optimal workflow. They are equipped with intuitive controls, ensuring effortless and user-friendly operation. They are crafted from 304 stainless steel for durability and corrosion resistance. Our units facilitate secure and reliable data transmission, ensuring efficient operation.

Gravity Convection Oven NGCO-100

Chamber Volume 56 L
Temperature Range RT + 10 to 200°C
Ambient temperature + 5 to 35 ℃
Display Resolution 0.1 °C

Labnics Natural Convection Oven feature adjustable shelves that enhance versatility in accommodating a wide range of sample sizes. They are integrated with PID controllers for precise temperature regulation and enhanced operational stability. These ovens are built from stainless steel ensuring longevity and corrosion resistance. They include over-temperature alarm system to ensure safe operation. Our ovens are equipped with intuitive interfaces for easy monitoring of parameters.

Natural Convection Oven NTCO-100
Temperature Range RT+10°C to 200°C
Ambient Temperature +5°C to 35°C
Temperature Stability ±1°C
Resolution 0.1°C

Microwave Chemical Reactor NMOR-100

Maximum Operating Temperature ≤ 250℃
Microwave Emission Mode Continuous wave (Steady output )
Microwave Frequency 2450 MHz ± 15 Hz
Temperature Measurement Technique Contact temperature sensor
