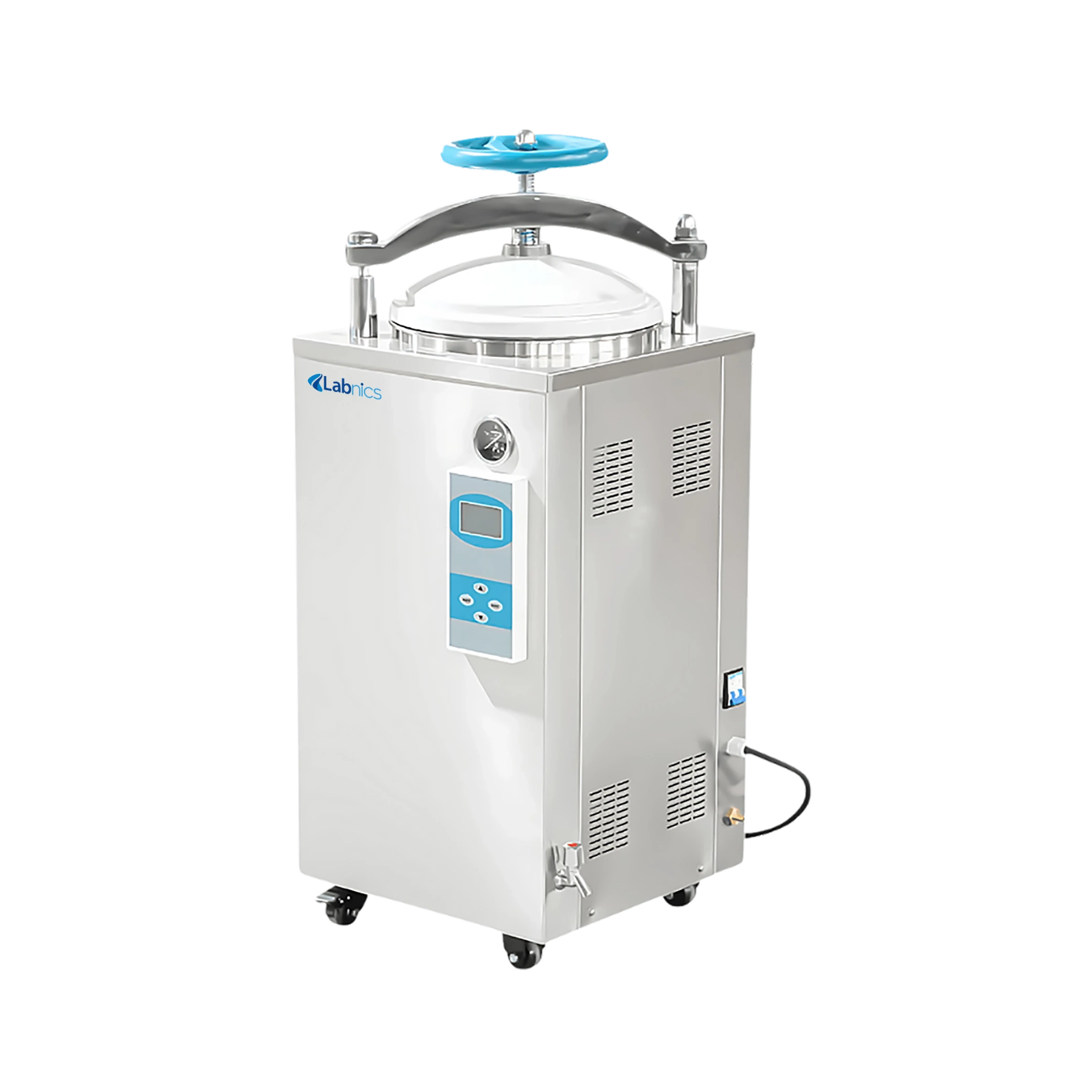

Vertical Autoclave NVA-202

Vertical Autoclave NVA-202

Vertical Autoclave NVA-202 is designed with a capacity of 75L and operates at a working temperature of 134°C. It is built with a fully stainless-steel structure, ensuring durability and easy maintenance. This unit features an LCD digital display for real-time status updates. It includes water-lacking protection for safe and reliable operation. Our vertical autoclave automatically shuts off with a beep reminder when the cycle is complete.


$1,988.00

Catalog

Specifications

Capacity 75L
Chamber volume 400×600mm
Working temperature 134°C
Working pressure 0.22Mpa
Temperature range 105°C to 134°C
Maximum working pressure 0.23Mpa
Heat average ≤±1°C
Timer range 0 to 99min or 0 to 99hour 59min
Display LCD
Body Stainless steel
Door Wheel-type, quick-open door
No. of sterilizing baskets 2 pcs
Sterilizing baskets dimensions 370×250mm/pc
Total CBM 0.48CBM
Power consumption 4.5kW
Power supply AC220V, 50Hz
Overall dimension 550×530×1180mm
Packaging dimension 610×610×1280mm
Gross weight 113kg
Net weight 93kg

Features

  • Quick-open door design
  • Self-inflating seal
  • Two sterilizing baskets
  • Built-in safety features
  • Optional printer for documentation
  • Touch-key control interface
  • Adjustable timer range

Applications

  • Vertical Autoclave NVA-202 is used to ensure the complete sterilization of equipment by eliminating bacteria, viruses, and other pathogens. It is employed in healthcare facilities, pharmaceutical labs, dental clinics, and veterinary practices.

Ask Expert

FAQ for Vertical Autoclave NVA-202

1: What safety features are included in this Vertical Autoclave NVA-202?

Our Vertical Autoclave is equipped with built-in safety mechanisms such as water-lacking protection to prevent dry heating. It also automatically shuts off and alerts with a beep when the cycle is complete, enhancing operational safety.

2: How user-friendly is the Vertical Autoclave's control system?

The Vertical Autoclave features a touch-key interface with an LCD digital display, providing clear visibility of current operating parameters. This makes it easy to set the desired temperature, pressure, and timing with precision.

3: What kind of materials is the Vertical Autoclave NVA-202 made from?

The body and internal chamber are constructed entirely from high-quality stainless steel. This ensures long-term durability, resistance to corrosion, and easy maintenance after repeated use.

4: How does the Vertical Autoclave NVA-202 ensure even heat distribution?

Our Vertical Autoclave is designed with a temperature range of less than or equal to ±1°C, ensuring uniform temperature throughout the chamber. This guarantees consistent sterilization of all materials placed inside.

5: Is regular maintenance required for this Vertical Autoclave?

Regular maintenance helps ensure consistent performance and prolongs the unit’s lifespan. Periodic cleaning of the chamber, checking the water level, and inspecting seals are recommended for optimal operation.

6: Is the Vertical Autoclave suitable for use in laboratories with limited space?

Yes, the vertical design is especially suited for compact spaces. It takes up minimal floor area while offering sufficient internal volume for sterilizing multiple items at once. This makes it a preferred choice in many research and clinical labs.

7: Can the Vertical Autoclave handle different types of loads, like liquids and instruments?

Yes, our Vertical Autoclave is designed to sterilize a wide range of materials, including liquids, surgical instruments, culture media, and lab glassware. With adjustable temperature and time settings, it adapts easily to various sterilization needs.

8: How durable is the construction of the Vertical Autoclave?

The Vertical Autoclave is built with high-grade stainless steel that resists corrosion and ensures a long operational life. The rugged outer body and quality internal components are designed to withstand repeated high-temperature cycles. This ensures dependable performance over time.

9: Is the Vertical Autoclave easy to maintain?

Routine cleaning and basic maintenance, like water tank refilling and gasket checks, are straightforward. The design allows easy access to internal parts for inspection. With proper care, it continues to perform efficiently with minimal servicing.


Vertical Autoclave NVA-202

Vertical Autoclave NVA-202

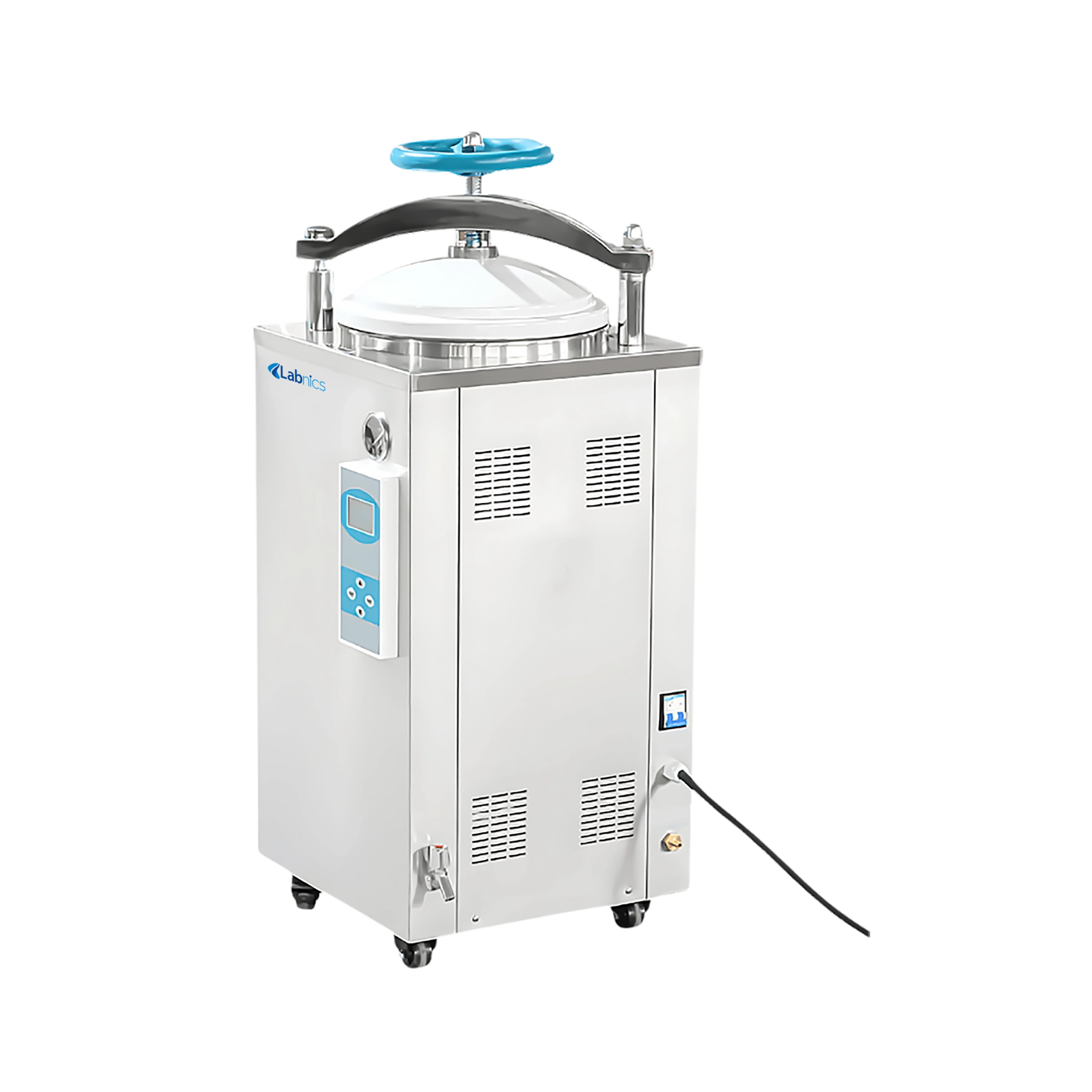

Related Models Of Vertical Autoclaves

Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.
