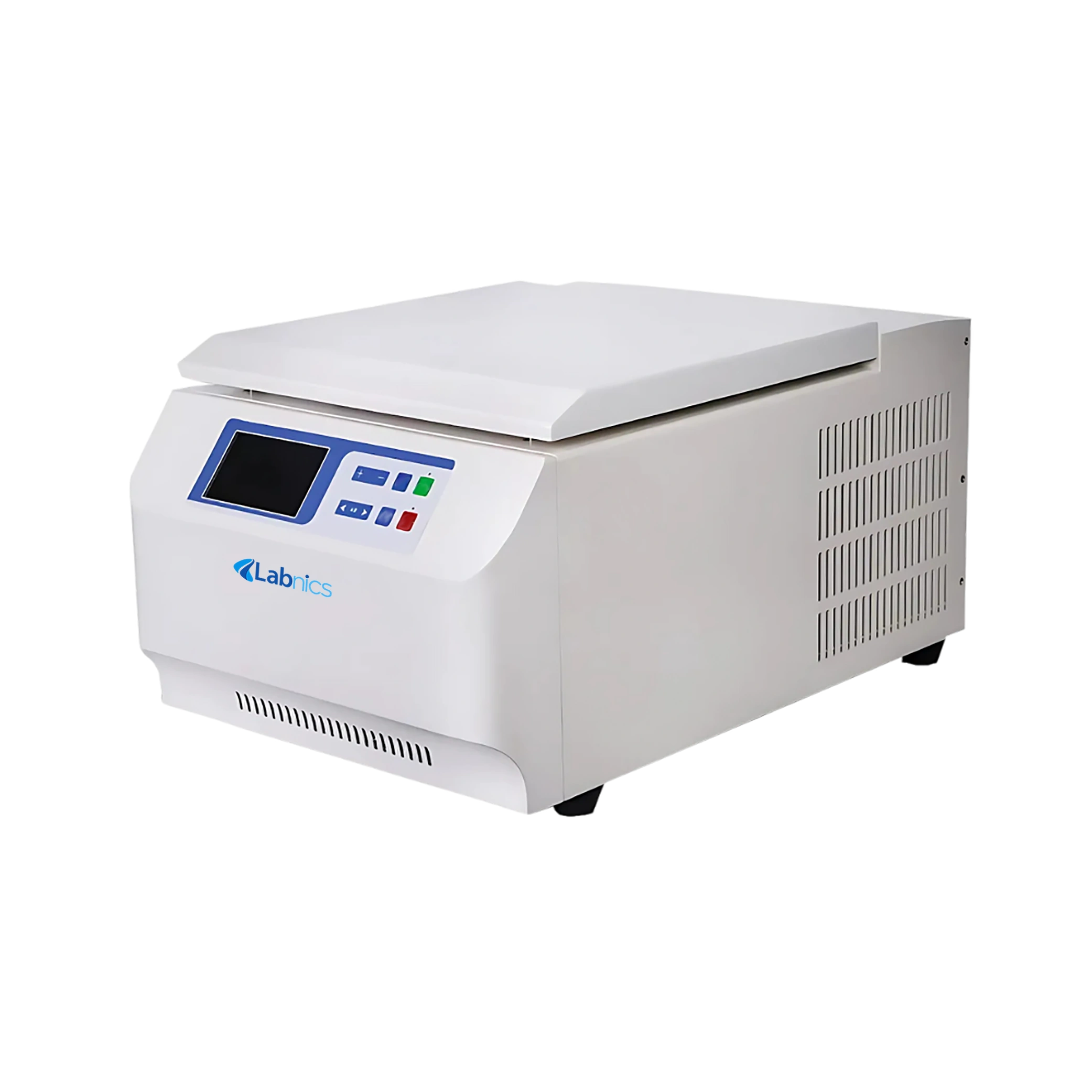

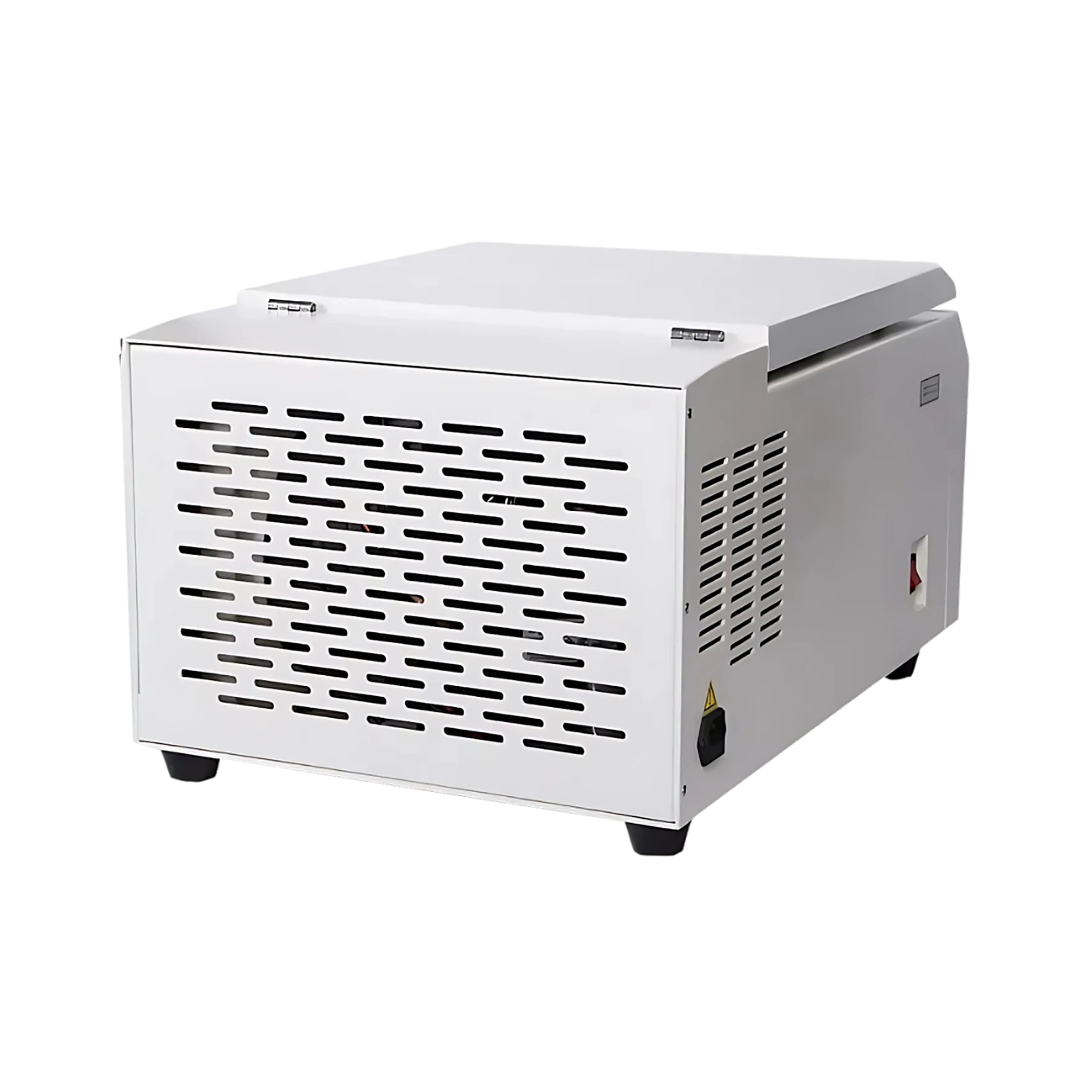

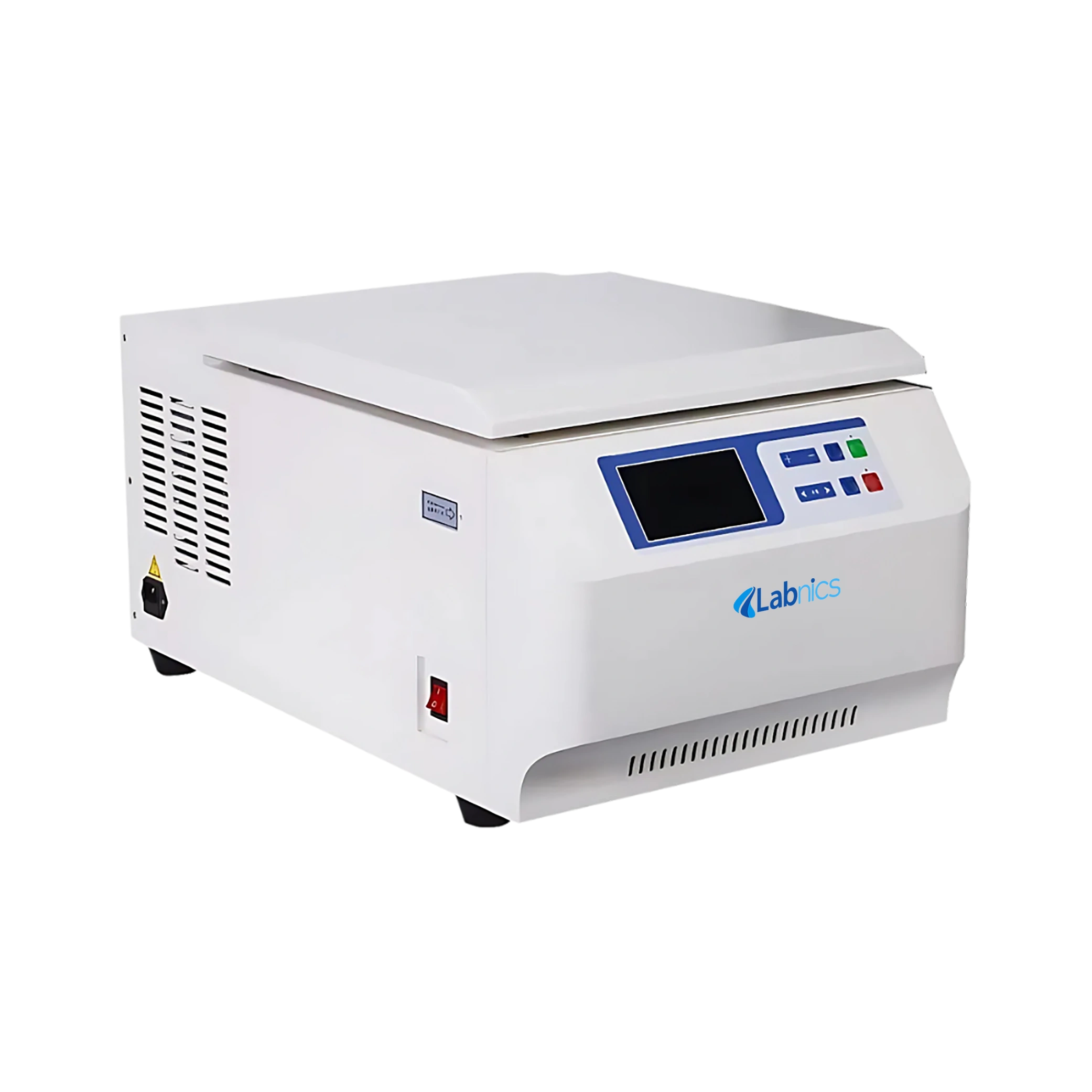

High Speed Refrigerated Centrifuge NHRC-500

Name: High Speed Refrigerated Centrifuge NHRC-500
Brand: Labnics
SKU: NHRC-500
Rating: 5 (799 reviews)

High Speed Refrigerated Centrifuge NHRC-500 provides high-speed performance up to 16500 rpm with a maximum RCF of 18700 × g. It offers a temperature range from -20℃ to 40℃ for handling sensitive samples. This unit operates below 60 dB to maintain a quiet workspace. It incorporates an electronic door lock system to enhance user safety during operation. Our centrifuge is built with an all-steel body for improved durability and structural stability.

$3,338.00

Data Sheet

Specifications

Maximum speed	16500 rpm
Maximum RCF	18700 × g
Maximum capacity	4 × 100+10 ml
Temperature range	-20℃ to 40℃
Timer range	0 to 99 hr 59 min
Noise level	<60dB(A)
Power consumption	1.0kW
Power supply	AC220V, 50Hz, 30A
Dimension	590×530×340mm
Weight	64kg

Features

Microcomputer control system

AC variable frequency motor

Over-speed protection

Real-time status display

Stable temperature control

User-friendly interface

Applications

High Speed Refrigerated Centrifuge NHRC-500 is used for efficient separation, precipitation, concentration, and preparation of samples in laboratory processes. It is widely applied in fields such as biochemistry, medical research, public health, food safety, life sciences, forestry, animal husbandry, blood banks, and pharmaceutical industries.

Rotors Selection

Rotor No	Rotor Type	Maximum Capacity	Maximum Speed	Maximum RCF
1	Angle Rotor	12×1.5/2.2ml	16500rpm	18700×g
2	Angle Rotor	4× (8×0.2) ml	14000rpm	13590×g
3	Angle Rotor	24×1.5/2.2ml	14000rpm	18400×g
4	Angle Rotor	30×1.5/2.2ml	13000rpm	17950×g
5	Angle Rotor	36×1.5/2.2ml	13000rpm	15490×g
6	Angle Rotor	48×1.5/2.2ml	13000rpm	17570×g
7	Angle Rotor	48×0.5ml	13000rpm	14360×g
8	Angle Rotor	12×10ml	13000rpm	16240×g
9	Angle Rotor	6×50ml	12000rpm	14650×g
10	Angle Rotor	4×100+10ml	11000rpm	13200×g
11	Angle Rotor	6×50ml	11000rpm	13120×g
12	Angle Rotor	12×15ml	11000rpm	13520×g
13	Microplate Rotor	2×2×96 holes	12000rpm	1700×g

Ask Expert

FAQ for High Speed Refrigerated Centrifuge NHRC-500

1: How is user safety ensured during operation?

The High Speed Refrigerated Centrifuge includes an electronic door lock system that prevents the lid from opening during operation. It also features multiple safety protections such as over-speed, unbalance, overload, and door cover detection.

2: How does the High Speed Refrigerated Centrifuge ensure accurate and consistent performance?

The High Speed Refrigerated Centrifuge features microcomputer control and an AC variable frequency motor, ensuring precise speed control and stable operation. The system maintains consistent performance even during intensive use.

3: Is the High Speed Refrigerated Centrifuge NHRC-500 easy to maintain?

The all-steel construction and simple interface make maintenance straightforward. Regular cleaning and scheduled checks help ensure long-term reliability.

4: How stable is the High Speed Refrigerated Centrifuge NHRC-500 during operation?

Our High Speed Refrigerated Centrifuge is equipped with a special shock absorber and a balanced design that minimizes vibration. This enhances machine stability and extends component life.

5: How often should the High Speed Refrigerated Centrifuge NHRC-500 be cleaned?

The High Speed Refrigerated Centrifuge should be cleaned after each use to prevent the buildup of residue or contaminants. Regular cleaning helps maintain performance and extends the life of internal components.
