Vacuum Pump NVP-100

Vacuum Pump NVP-100

Vacuum Pump NVP-100

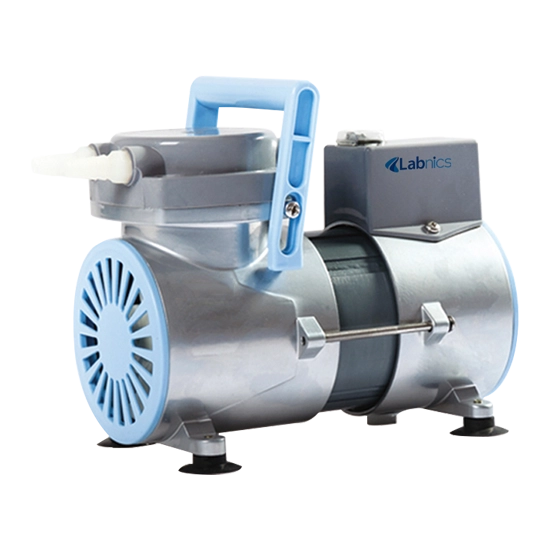

Vacuum Pump NVP-100 is a diaphragm-based pump that is designed for continuous and excellent oil-free pumping. The PTFE-coated exterior makes increases the resistance against corrosion, thereby extending its operating life. The pump provides desired vacuum without any loud noise or vibrations. These low-vibration units keep disturbances to a minimum and are an ideal equipment for carrying out vacuum filtration, gel electrophoresis, solid-phase extraction, solvent purification, thermal desorption (TD) tubes, sampling bags, and general use.


Pump Head 1
Flow rate 12 L/Min
Maximum pressure ≥ 0.075 Mpa
Operating vacuum 250 mbar
Operating pressure ≥ 30 psi (positive/negative pressure)
Inlet connection Φ 6 mm
Outlet connection Φ 6 mm
Working temperature 7°C ~ 40°C
Ambient temperature < 55°C
Noise level < 60 dB
Rated motor power 75 W
Power supply AC 110/220 V ± 10%, 50/60Hz
Dimension (L × W × H) 195 × 98 × 156 mm
Packaging dimension (L × W ×H) 330 × 210 × 240 mm
Weight 4.5 kg



Employed in various molecular biology, pharmaceutical and other laboratories dealing with processes like vacuum distillation, drying, filtration, rotary evaporation, degassing of liquids and for gas compression and conversion.
