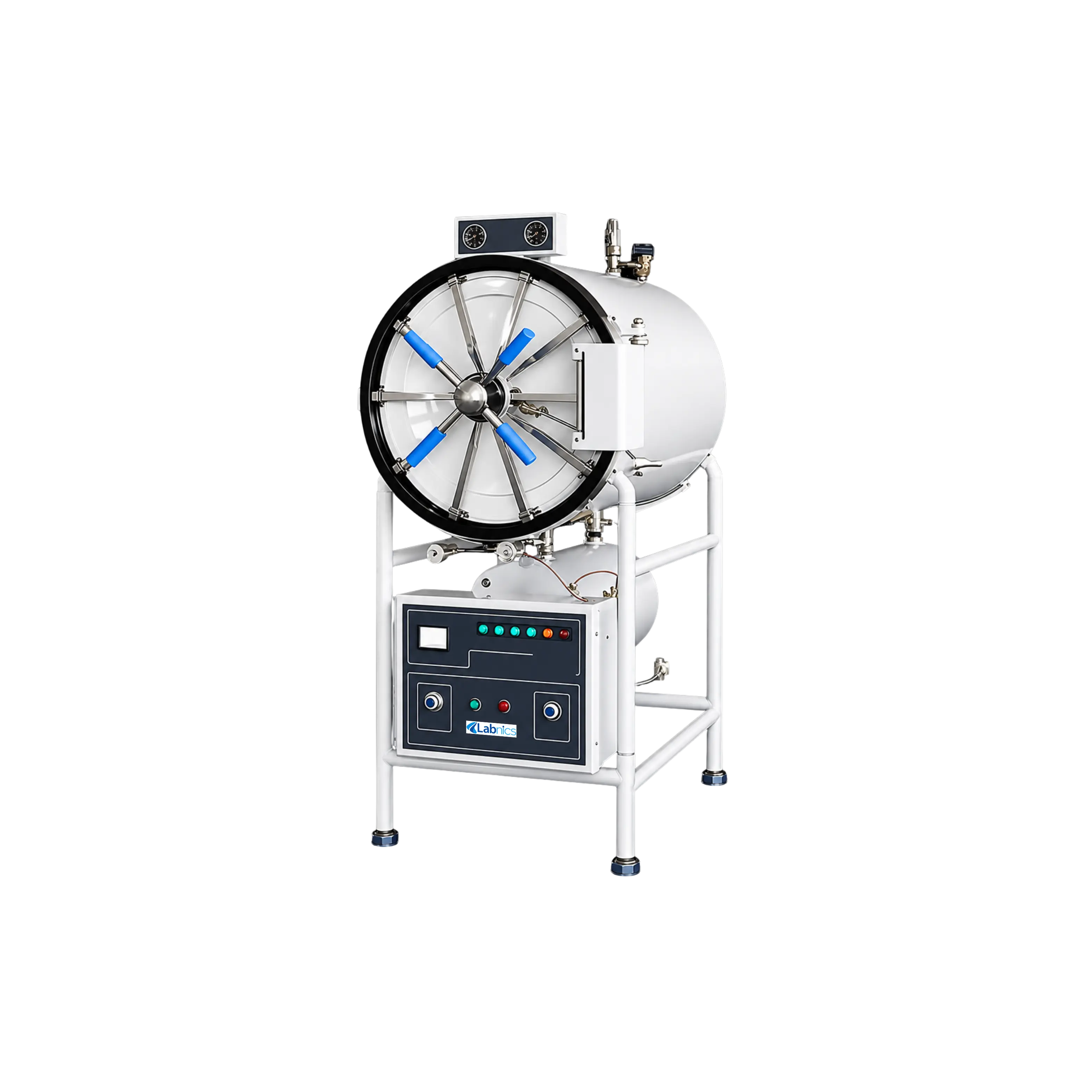

Horizontal Autoclave NHA-100
Horizontal Autoclave NHA-100
Horizontal Autoclave NHA-100 is a cyclindrical, horizontal pressure steam sterilizer with an automatic pressure-temperature controller. These front-loading autoclaves combine of high temperature and pressure to bring about decontamination and sterilization of biological waste, culture media, instruments and lab ware. The whole body is a highly durable stainless steel with an installed electric heater for more efficient steam production and advanced vacuum for enhanced drying of discarded material. It is user-friendly and play important role in sterilization procedures across various Hospitals, Pharmaceutical companies, Biopharma and Microbiology laboratories etc.
Specifications
| Capacity | 150 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 440 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Heat Fluctuation | ≤ ± 1°C |
| Time for sterilization | 0 - 60 min |
| Time for drying | 0 - 60 min |
| Adjustable temperature range | 105°C - 134°C |
| Power | 9 kW/ AC220V, 50Hz |
| Overall Dimension | 1400 × 600 × 1300 mm |
| Packing Dimension | 1550 × 750 × 1800 mm |
| Net Weight | 240 kg |
| Gross Weight | 320 kg |
Features
- ✔ Stainless steel body
- ✔ Protection against heating and pressure
- ✔ Automatic-controlled functions
- ✔ Power cut-off as well as alarm in case of water shortage
- ✔ Automatic shutdown after completion of sterilization
Applications
Employed for sterilization in microbiological, pharmaceutical, clinical and hospital labs.
Standard Accessories
| Accessories No | Name |
| 1 | Pressure gauge |
| 2 | Water level controller |
| 3 | Heating element |
| 4 | Wire baskets |
| 5 | Silicon gasket for the lid |
| 6 | Soft tube |
| 6 | Spanner |
| 6 | Power cord |
