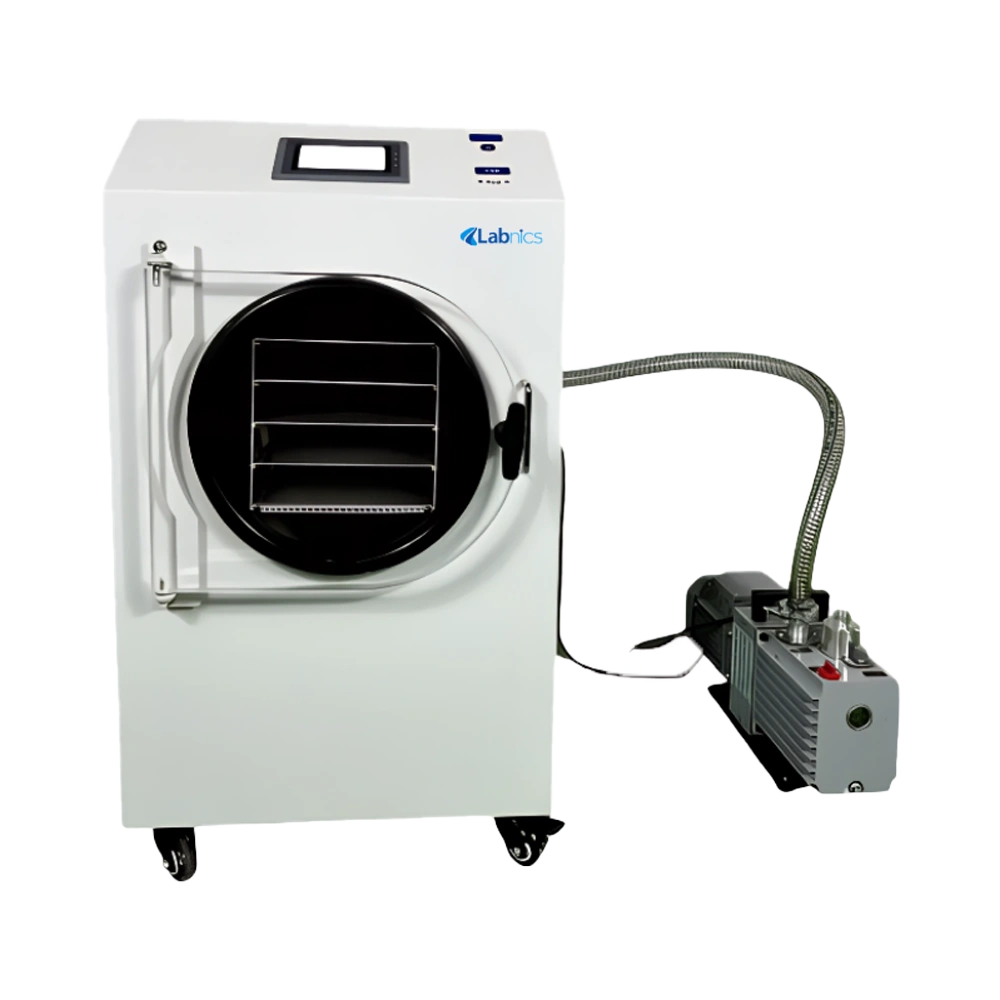

Vacuum Freeze Dryer NVFD-401 features a 0.35 m² drying area and is engineered for mid-volume sample processing. It incorporates four stainless steel trays with 45 mm spacing, offering efficient freeze-drying for heat-sensitive substances. This -55 °C cold trap and ≤2 Pa vacuum environment ensure sample stability during sublimation. Our structure is built from SUS304 stainless steel for hygienic and corrosion-resistant use. It is equipped with automatic quick-defrosting technology that ensures minimal downtime between drying cycles
$4,675.00
| Drying Area | 0.35 ㎡ |
| Tray Spacing | 45 mm |
| Tray Size | 200 × 425 mm |
| Number of Trays | 4 |
| Load Capacity | 4 to 6 kg |
| Material | SUS304 Stainless Steel |
| Cold Trap Temperature | -55 °C |
| Ultimate Vacuum Degree | ≤ 2 Pa |
| Power Supply | 220V / 50Hz |
| Dimensions (L×W×H) | 530 × 680 × 900 mm |
| Packing Dimensions (L×W×H) | 610 × 780 × 1280 mm |
| Net Weight | 78 kg |
| Gross Weight | 142 kg |
Enhanced Batch Output
Uniform Heat Distribution
Low Vacuum Pressure
Cold Trap Efficiency
Energy-Efficient System
Transparent Viewing Door
Touchscreen Operation
Compact Design
Vacuum Freeze Dryer NVFD-401 used for moisture removal through sublimation, it ensures structural and biochemical stability of sensitive materials. It is commonly used in pharmaceutical production, microbiological labs, and biotechnology research centers.
1: What is the drying area of the Vacuum Freeze Dryer NVFD-401?
Vacuum Freeze Dryer NVFD-401 provides a drying area of 0.35 square meters, allowing it to handle medium-sized batches effectively while maintaining freeze-drying efficiency and uniformity across all trays.
2: How many trays does this Vacuum Freeze Dryer NVFD-401 support?
Vacuum Freeze Dryer NVFD-401 supports 4 trays, each spaced 45 mm apart and sized at 200 × 425 mm, providing ample surface for drying materials with varying sample volumes and forms.
3: Can this Vacuum Freeze Dryer NVFD-401 be used for sensitive biological materials?
Yes, Vacuum Freeze Dryer NVFD-401 has cold trap temperature of -55?°C and vacuum capability ? 2 Pa make it suitable for sensitive biologicals, ensuring their molecular and structural properties remain intact.
4: Is the system energy efficient in the Vacuum Freeze Dryer NVFD-401?
Absolutely. The Vacuum Freeze Dryer NVFD-401 integrates a compact, low-consumption vacuum system and advanced insulation, minimizing power usage while optimizing drying performance.
5: What makes this Vacuum Freeze Dryer NVFD-401 durable for long-term use?
The drying chamber and trays are made from SUS304 stainless steel, which provides corrosion resistance, hygienic processing, and ease of cleaning. Vacuum Freeze Dryer NVFD-401 ideal for routine lab use.
Labnics Vacuum Freeze Dryer removes moisture from sensitive substances while preserving their structure. They consume minimal energy and operate with high efficiency. Our freeze dryers use vacuum chambers to protect heat-sensitive materials from thermal damage. These are built with durable, corrosion-resistant materials that ensure long-term performance. They incorporate eco-friendly features and low-noise operations for various applications.
