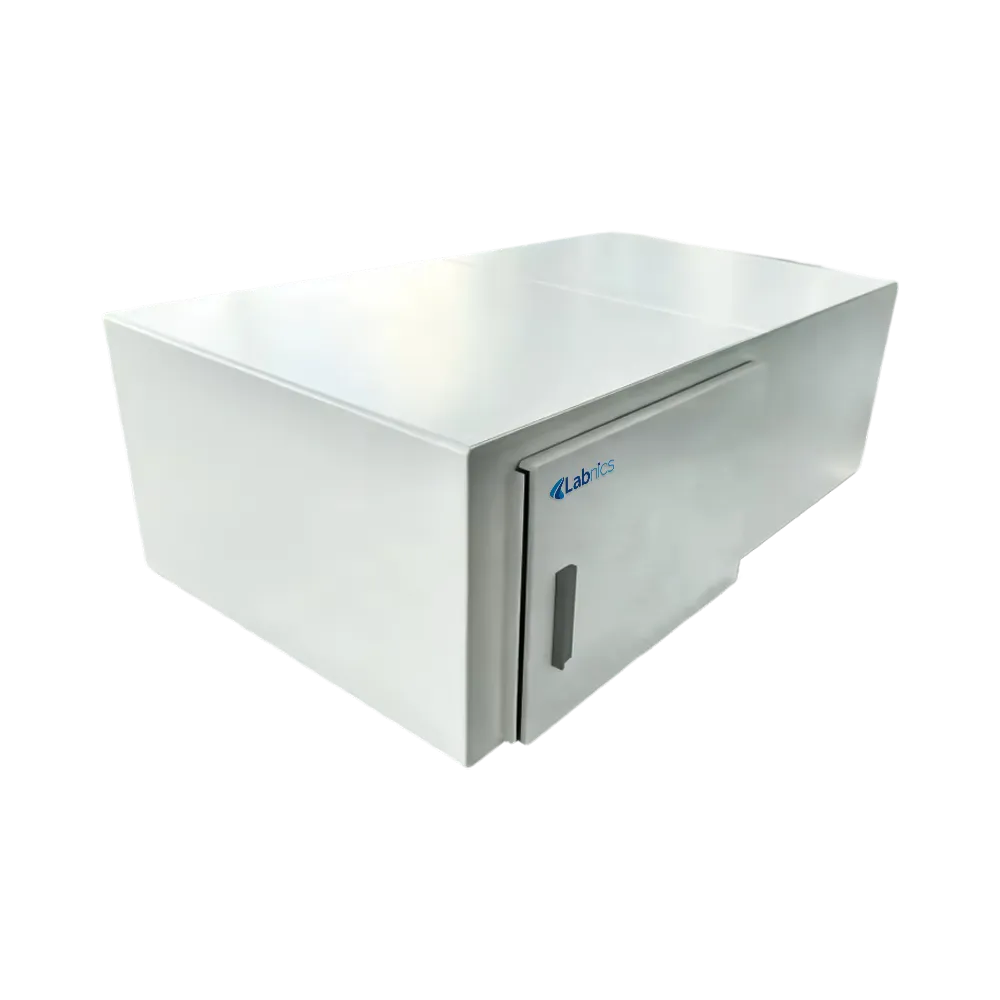

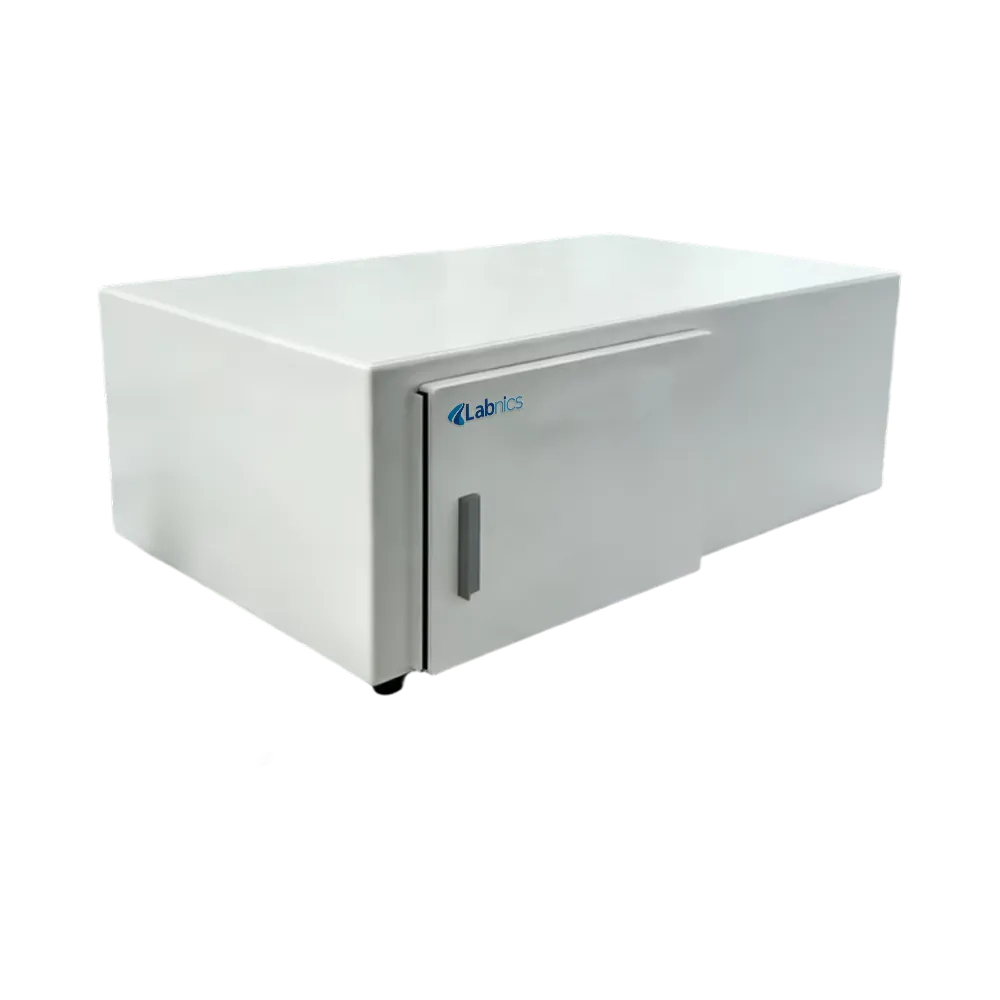

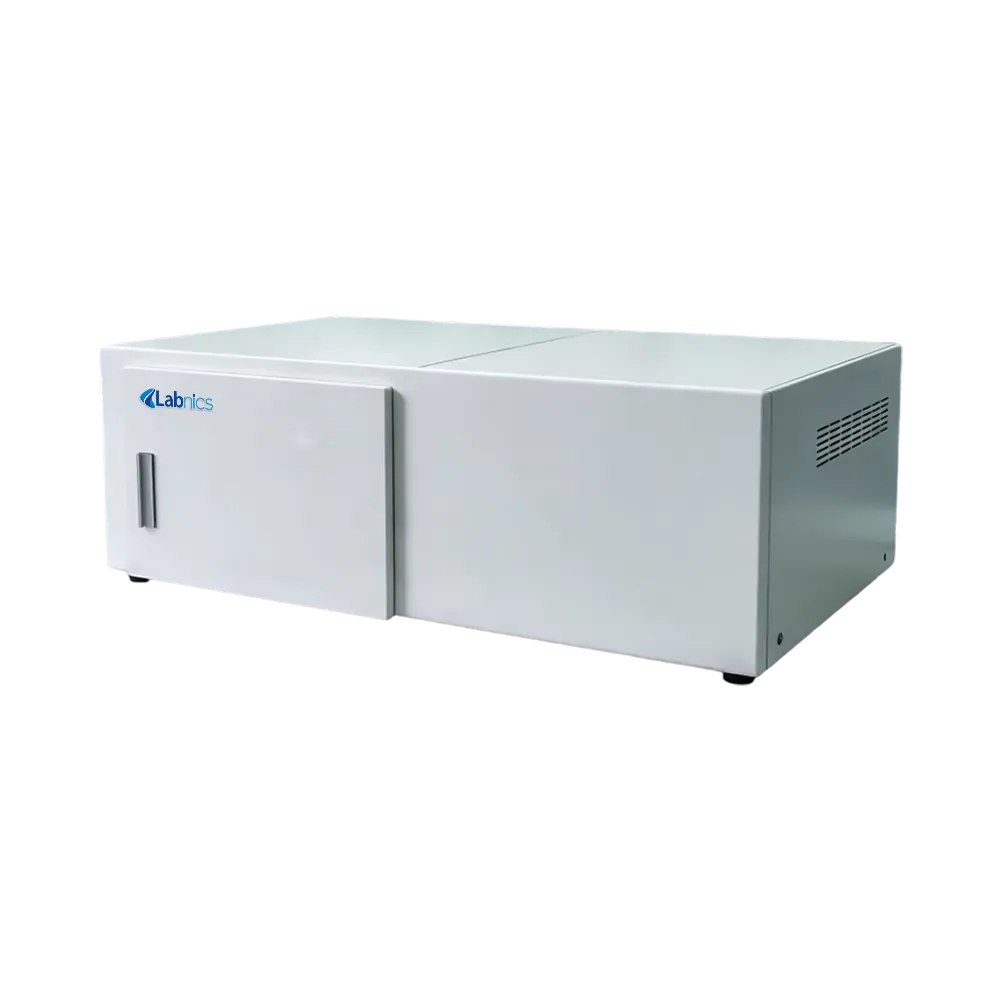

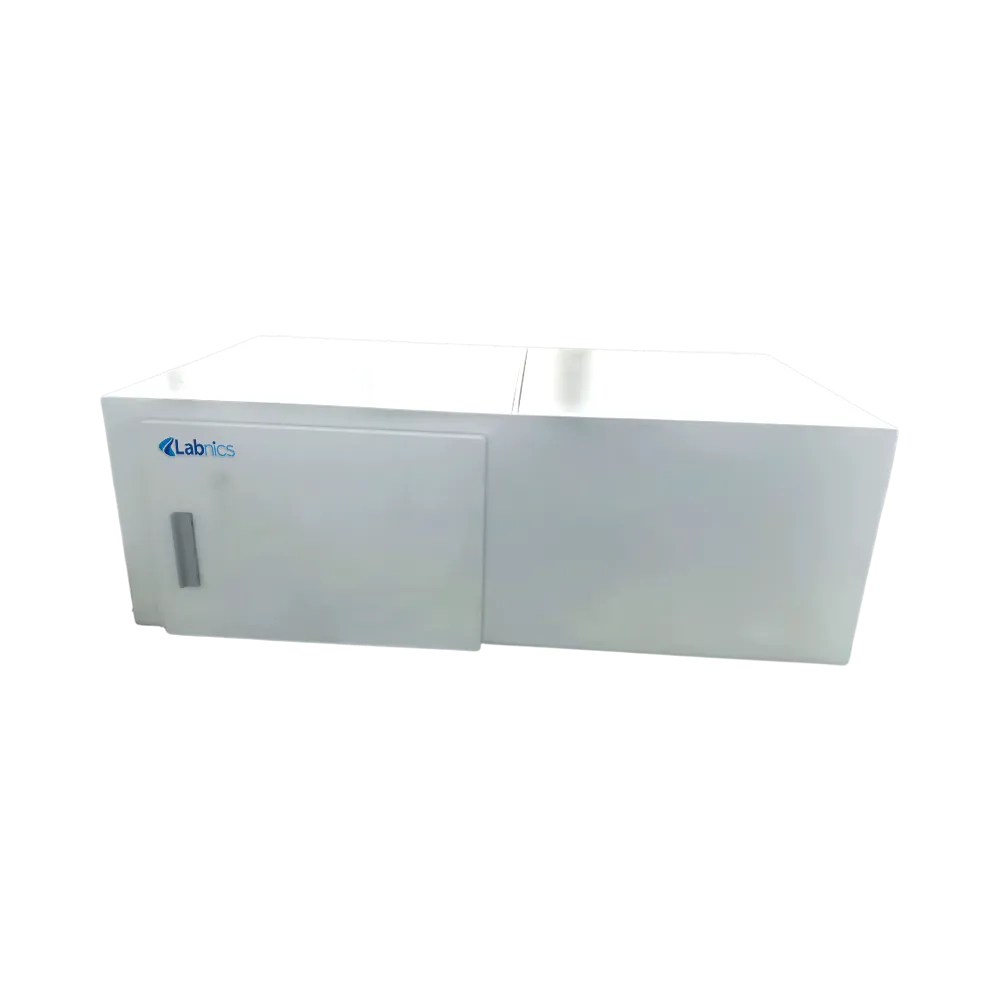

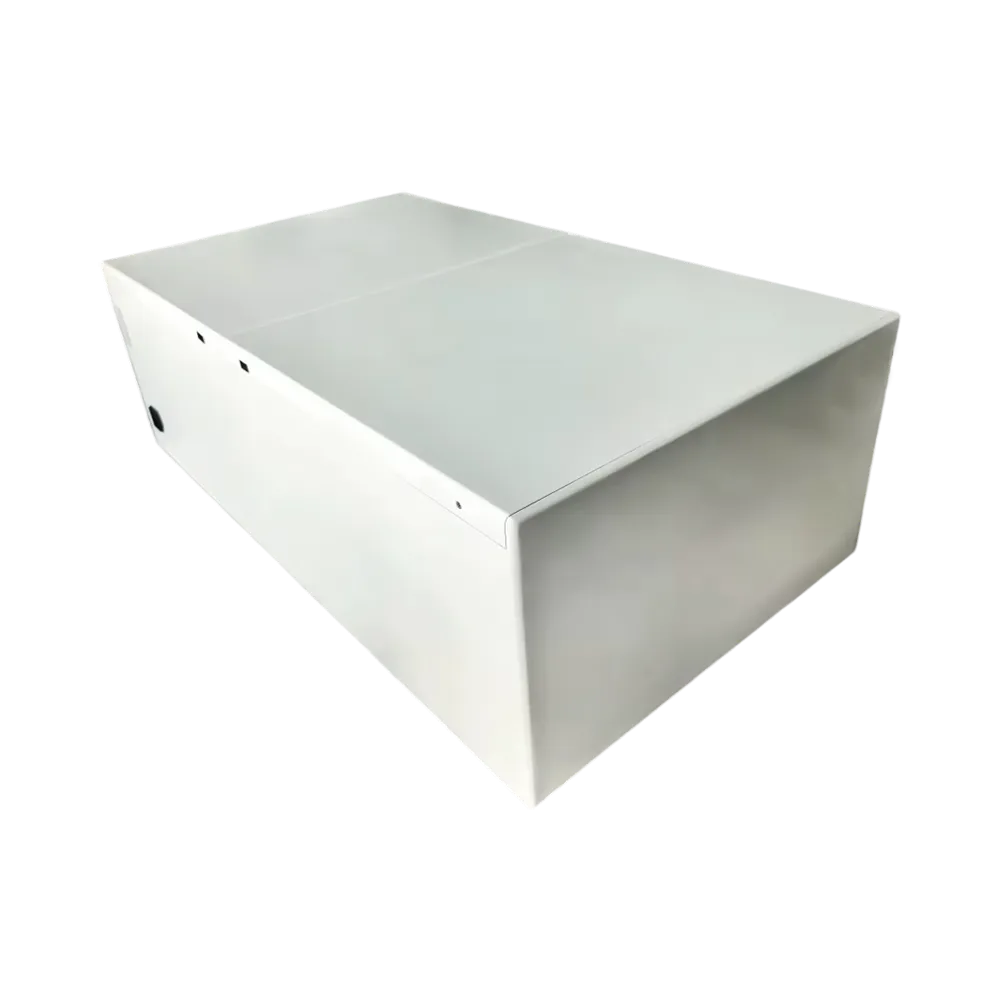

TLC Apparatus NTLC-100

TLC Apparatus NTLC-A100 is a versatile instrument that makes quantifying and identifying compounds from the given mixture effortless. Features automatic energy calibration for its light source. Maintains wavelength accuracy across the spectral range of 200nm to 850nm. Enables the analysis of unknown substances with the help of UV. The workstation offers a robust performance and allows full computer control.

---

Get Quote Catalog

Specifications

Measurement method	Absorption method, fluorescence method (optional)
Spectral range	200nm-850nm (continuously adjustable)
Light source	Halogen tungsten lamp, deuterium lamp (automatic switching)
Monochrome	Holographic grating (1200 lines/mm)
Spectral bandwidth	10nm
Wavelength accuracy	±1nm
Minimum resolution	25 – 50µM
Measurement platform	200mm × 200mm chromatographic plate
Scanning speed	0 – 120mm/s
Operating system	WIN7 32-bit, WIN10 64-bit
Interface	USB interface
Power voltage	220V 300W
Dimensions (L×W×H)	64×97×41cm
Weight	36kg

Features

• <strong>Versatile Measurement Method:</strong> Supports absorption and fluorescence measurement methods for a wide range of applications
• <strong>Adjustable Spectral Range:</strong> Offers a continuous adjustable spectral range of 200-850 nm for precise measurement
• <strong>Automatic Lamp Switching:</strong> The automatic switching between halogen tungsten and deuterium lamps ensures optimal results
• <strong>Large Measurement Platform:</strong> The measurement platform for 200mm × 200mm chromatographic plates allows for flexible and efficient operation
• <strong>Operating System Compatibility:</strong> Compatible with both Windows 7 and Windows 10 operating systems
• <strong>High Scanning Speed:</strong> Features a scanning speed of 120 mm/s for quick and efficient data acquisition
• <strong>Easy Computer Connectivity:</strong> Enables easy connection to a computer through a USB interface, simplifying data transfer and analysis
• <strong>High-Performance Workstation:</strong> The pre-installed workstation eases the operations and makes analysis simpler

Applications

• TLC Apparatus is a valuable tool used to separate and analyse mixtures of compounds. It is widely used in pharmaceuticals, chemistry, forensic science, food analysis, environmental science, biochemistry and herbal medicine.

Optional Accessories

SP-20E automatic TLC sampler TD-II automatic thin layer boarding machine TS-II ultra-fine electric thin-layer sprayer GoodSee- 20ETLC Imaging System TK-10 electric expander
