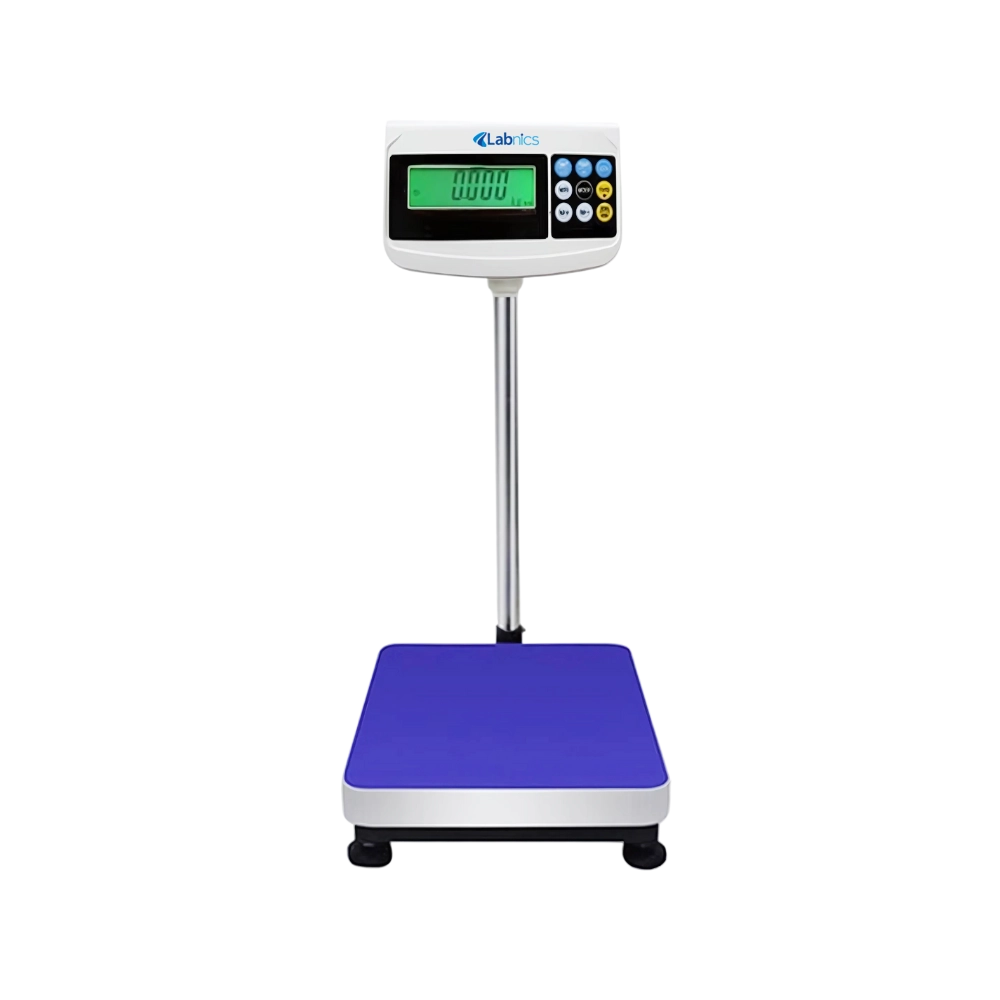

Floor Balance NFRB-300

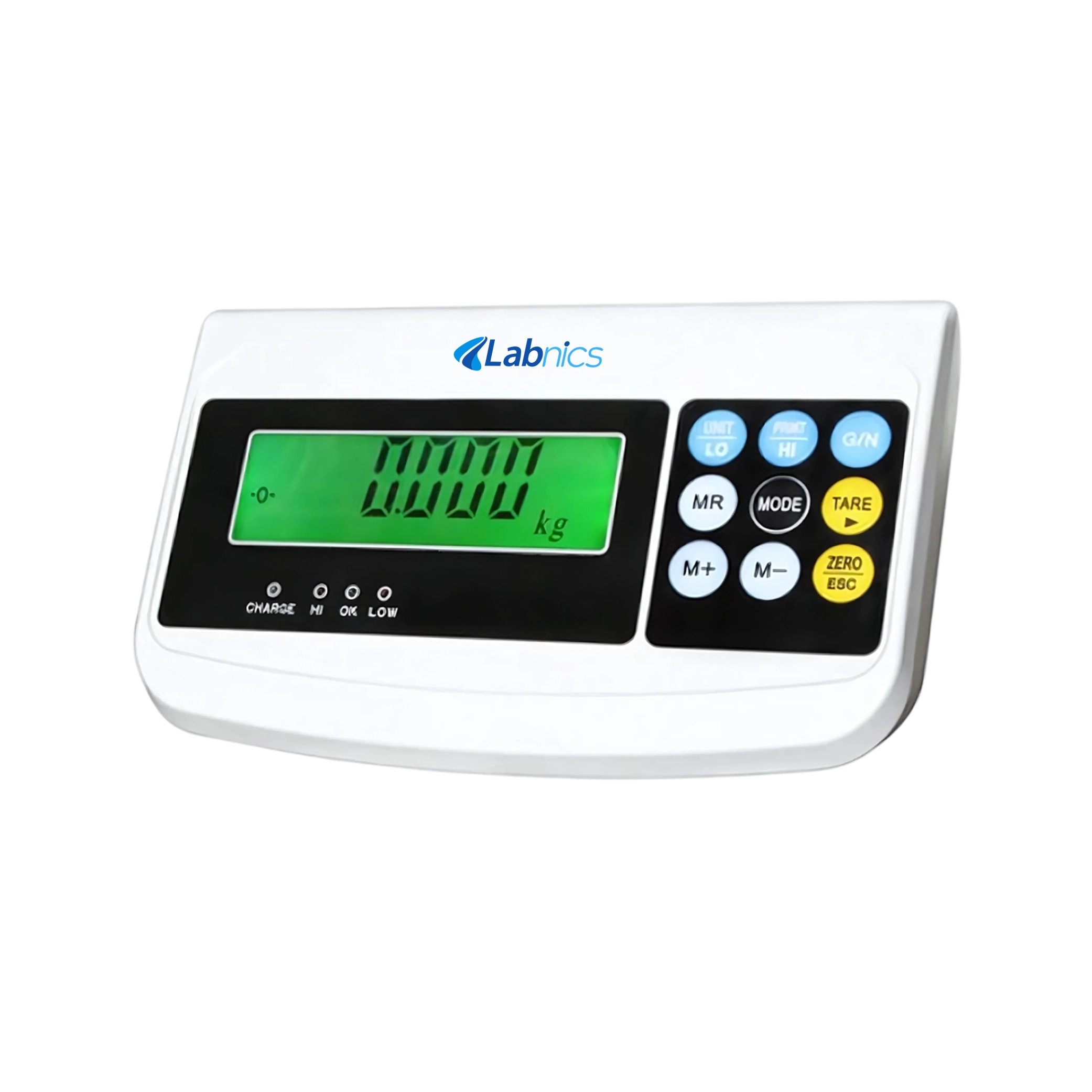

Floor Balance NFRB-300 is a multifunctional unit that achieves highly precise weight measurements with a resolution of 1/30,000. Features a 6-digit LCD with backlight for enhanced visibility in low-light conditions. It transfers data directly to a PC in Excel format for convenient analysis. Equipped with non-slip leveling feet to ensure stability on different surfaces.
| Capacity | 300 to 600 kg |
| Resolution | 1/30,000 |
| Readability | 50 g |
| Repeatability (Sd) | ± 50d scale interface analog |
| Platform Material | Carbon Steel |
| Terminal Material | Plastic |
| Display | 6 digital LCD with backlight |
| Interface | RS232 |
| Platform type | Bench scale |
| Weighing Units | kg, g, oz, lb |
| Pole Diameter | Ø3.8 cm |
| Pole Height | 66 cm |
| Load Cell Excitation | DC 5V, up to 8×350-ohm load cells |
| Power | AC 220v or recharge battery |
| Bench Scale Dimensions | 600 × 600 mm |
| Bench Scale Packing Dimensions | 800 × 680 ×180 mm |
| Indicator Dimensions | 350 × 350 × 170 mm |
| Bench Scale Net Weight | 30.5 kg |
| Bench Scale Gross Weight | 32 kg |
| Indicator Net Weight | 2.52 kg |
| Indicator Gross Weight | 2.95 kg |
Floor balance is used in production, mailrooms, packaging, warehouses, inventory management, commercial, industrial shipping and receiving sectors.
U-disk or Wi-Fi module or Ethernet module
| Maximum Capacity | 0-100 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Maximum Capacity | 0-110 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Maximum Capacity | 0-160 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Maximum Capacity | 0-200 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Maximum Capacity | 0-220 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Maximum Capacity | 0-220 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0003 g |
| Pan Diameter | ϕ 80 mm |
| Capacity | 300 g |
| Precision | 0.0001 g |
| Minimum weight | 0.0004 g |
| Stable time | ≤ 3 S |
| Maximum Capacity | 0-16 kg |
| Readability | 0.1g |
| Repeatability | ≤ 0.1 g |
| Display dimensions(L×W) | 110×30 mm |
| Max capacity | 1100/g |
| Weight | 500/g |
| Resolution | 0.01g |
| Weighing Pan size | Φ130mm, 160×160mm |
| Maximum Capacity | 1000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 2000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 3100 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.02g |
| Linearity | 0.02g |
| Maximum Capacity | 4000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.04g |
| Maximum Capacity | 5000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.05g |
| Maximum Capacity | 0-100g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-200g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-300g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-500g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-600 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Capacity [Max] | 6.2 g | ||||
| Readability [d] | 0.001 mg（1μg） | ||||
| Tare range | -6.2 g | ||||
| linearity deviation |
|
| Capacity | 6100 g |
| Minimum weighing | 0.1 g |
| Stable time | ≤ 2 s |
| Repeatability | ± 0.2 g |
| Weighing Capacity | 400 g |
| Repeatability | ≤ 0.002 g |
| Readability | 0.001 g |
| Linearity | ≤ 0.002 g |
| Capacity | 2000 g |
| Division | 0.1 g |
| Beams | 10 g × 0.1 g<br/> 200 g × 10 g |
| Pan diameter | 150 mm |
