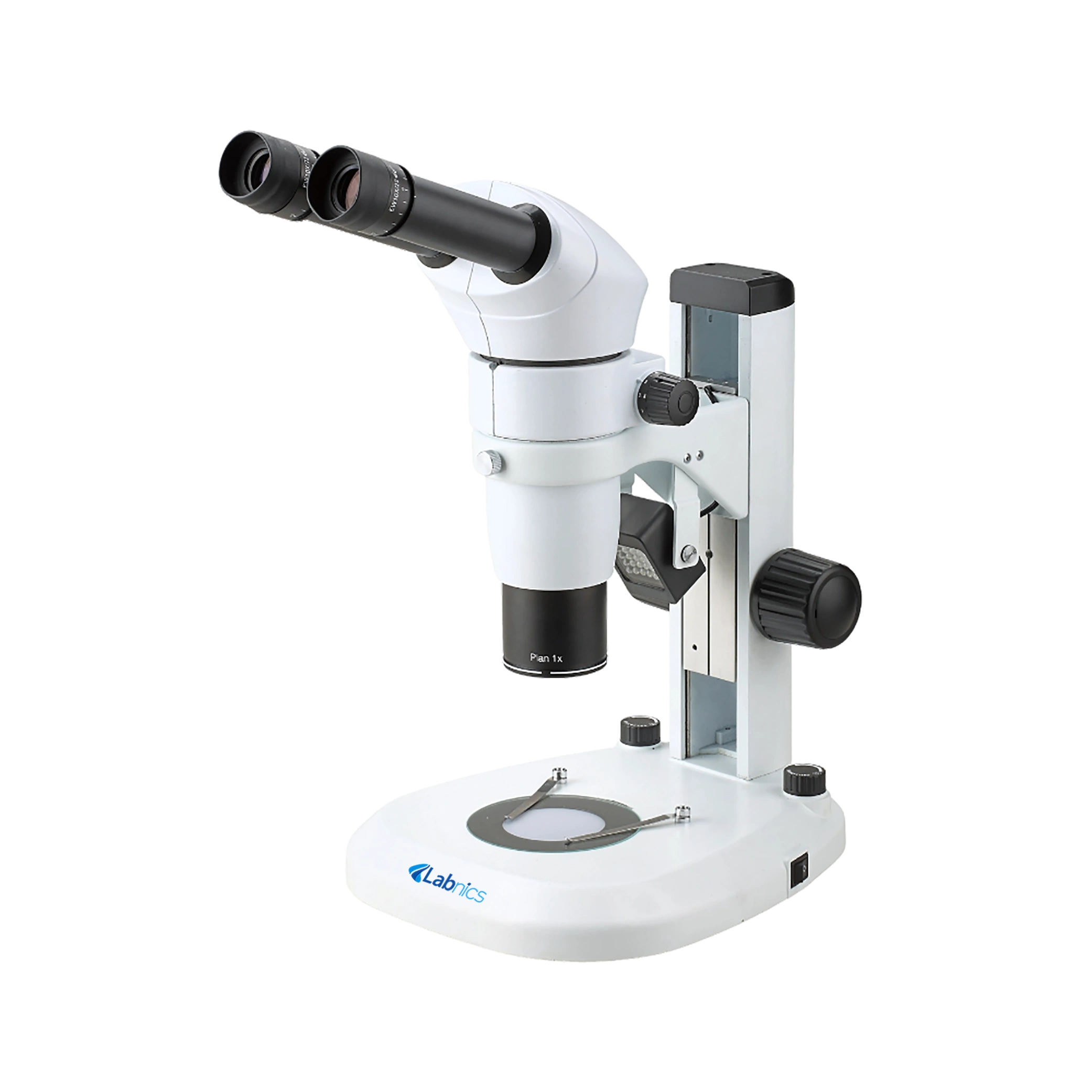

Stereo Microscope NSM-105 offers an objective magnification range from 0.8× to 5× for versatile viewing. It includes an adjustable LED illumination system on both top and bottom for optimal lighting. This unit features a 20° inclined binocular viewing head for comfortable observation. It supports precise zoom adjustments for clear image transitions. Our microscope ensures long-lasting use with its durable construction.
$2,875.00
Specifications
| Zoom ratio | 1:6 |
| Objective magnification | 0.8× to 5× |
| Eyepiece | Φ22 10×WF Diopter adjustable |
| Binocular viewing head | Inclined at 20°， interpupillary distance range: 50 to 75mm |
| Working distance | 78mm |
| Vertical movement range | 105mm |
| Illumination system | Adjustable illumination for both LEDs (top and bottom) |
| Power supply | AC100 to 240V, 0.15A, 50/60HZ |
| Product dimension | 370×320×670mm |
| Net weight | 8kg |
| Gross weight | 10kg |
Features
Applications
Standard Accessories
Binocular head and zoom body-1pc
Transmitted illuminator (LED)-1pc
Reflected illuminator (LED)-1pc
10×eyepiece-2 pcs
1×objective-1pc
Black-and- white stage -1pc
Glass plate-1pc
Power cord-1pc
Ask Expert
FAQ for Stereo Microscope NSM-105
1: Is the viewing head comfortable for extended use?
The Stereo Microscope includes a binocular head inclined at 20°, which helps reduce neck strain during long sessions. Its ergonomic design supports extended usage in lab and industrial settings.
2: Can the zoom be adjusted smoothly during operation?
The Stereo Microscope supports high-precision zoom control, allowing a smooth transition between magnification levels. This helps maintain focus and clarity without frequent readjustments.
3: Is the Stereo Microscope NSM-105 suitable for different users?
Yes, our Stereo Microscope has diopter-adjustable eyepieces and an interpupillary distance range of 50 to 75mm. These features make it adaptable to individual user preferences for comfortable viewing.
4: How does the dual LED illumination benefit the observation?
Our Stereo Microscope uses top and bottom LED lights that can be independently adjusted to suit different sample types. This provides flexibility in lighting control, enhancing visibility and contrast in both solid and translucent specimens.
5: How often should the Stereo Microscope NSM-105 be cleaned?
It is recommended to clean the lenses and body regularly to maintain clear imaging and smooth operation. Dust and debris should be removed using a soft brush or air blower to prevent damage.
