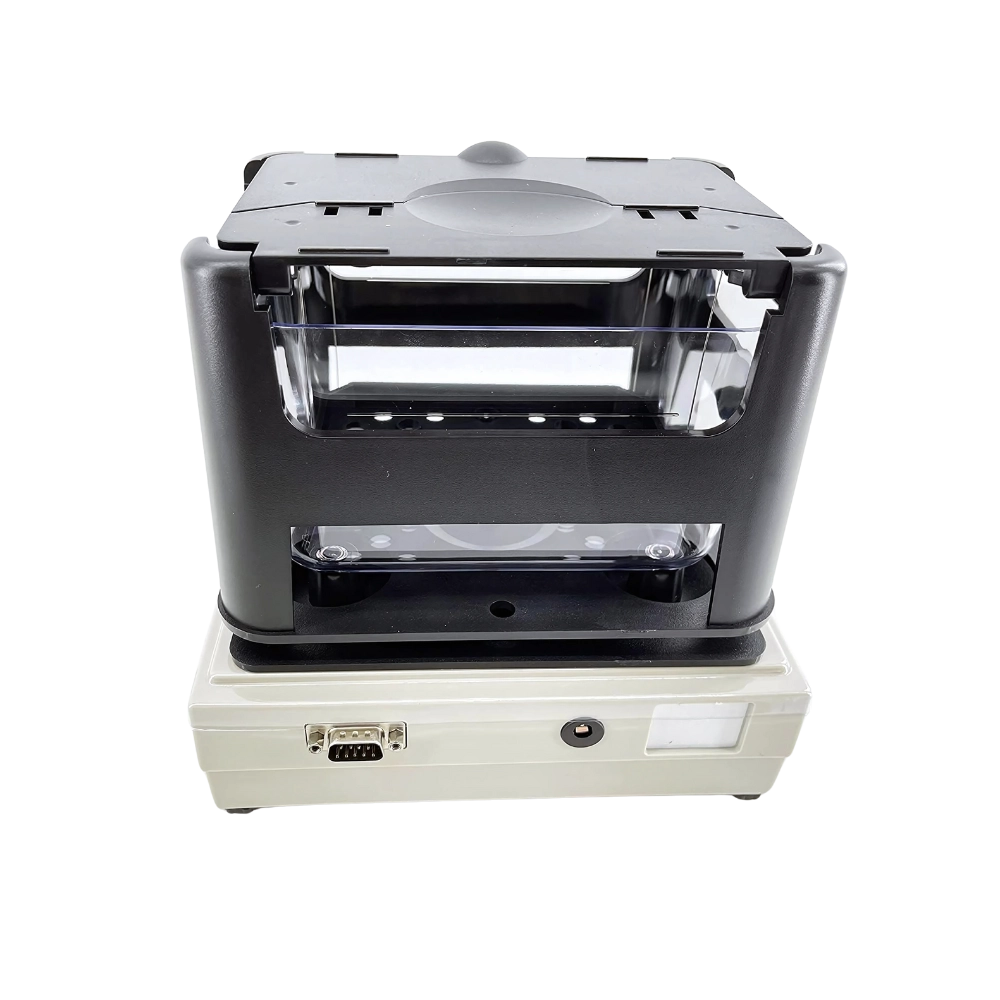

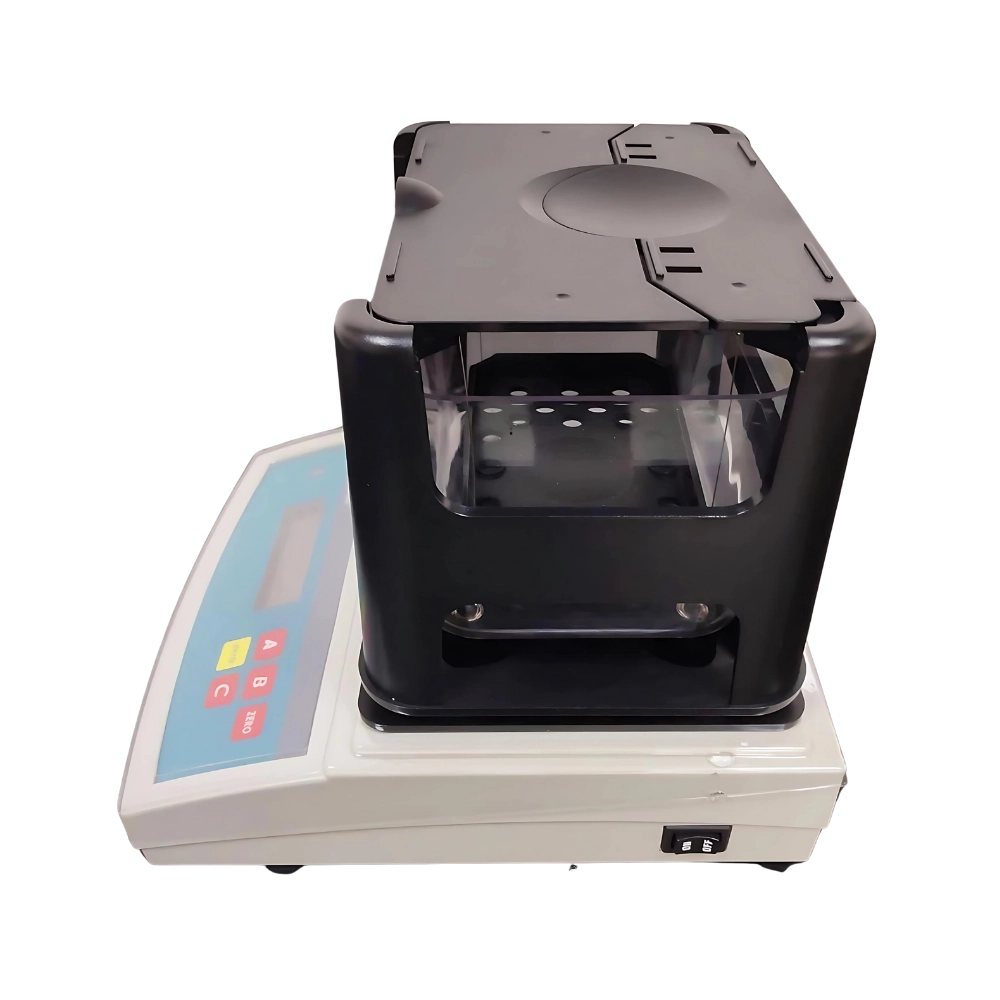

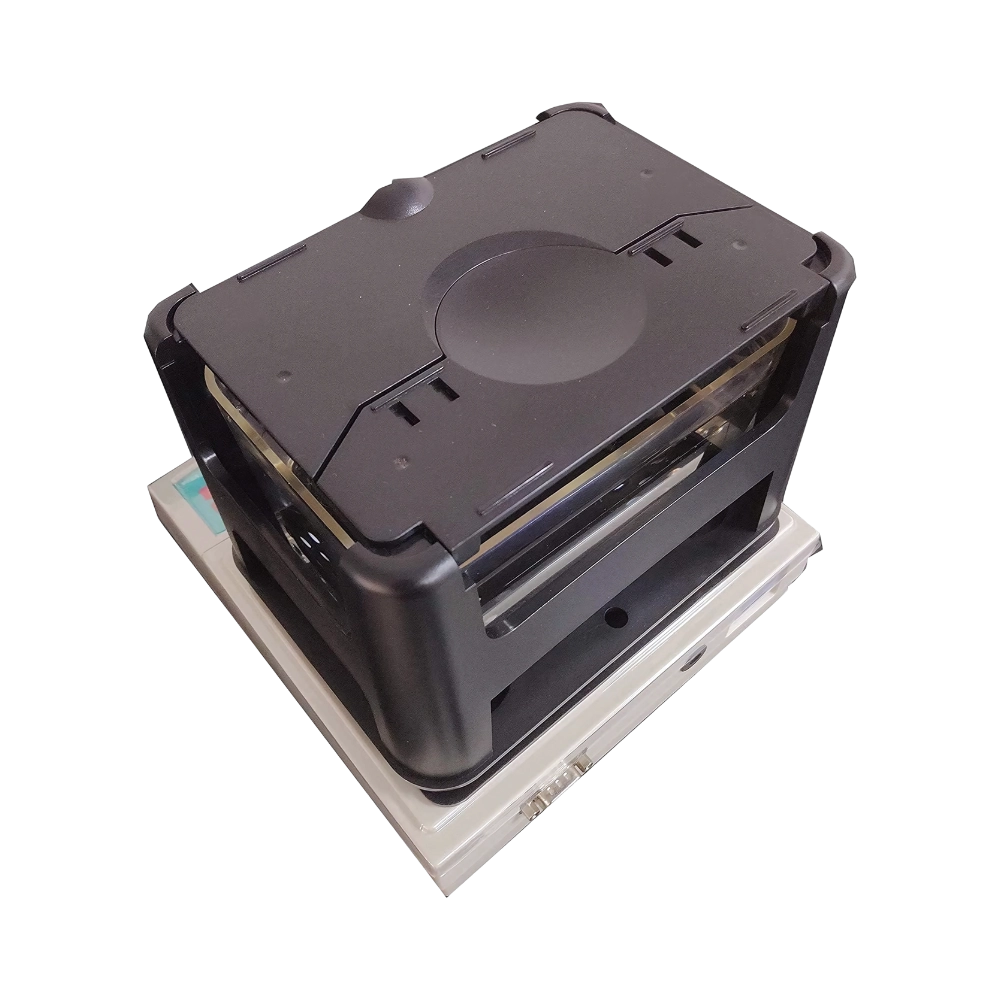

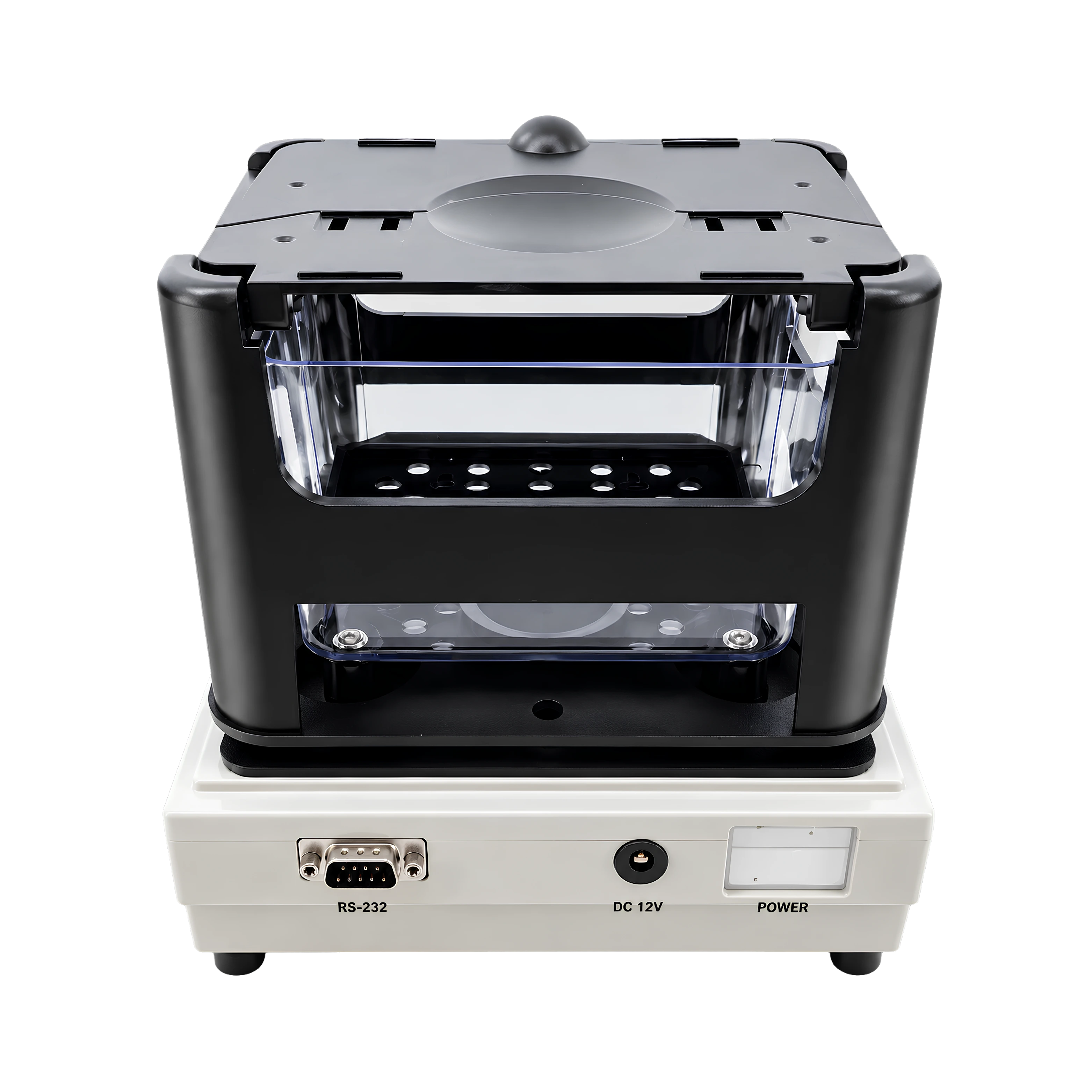

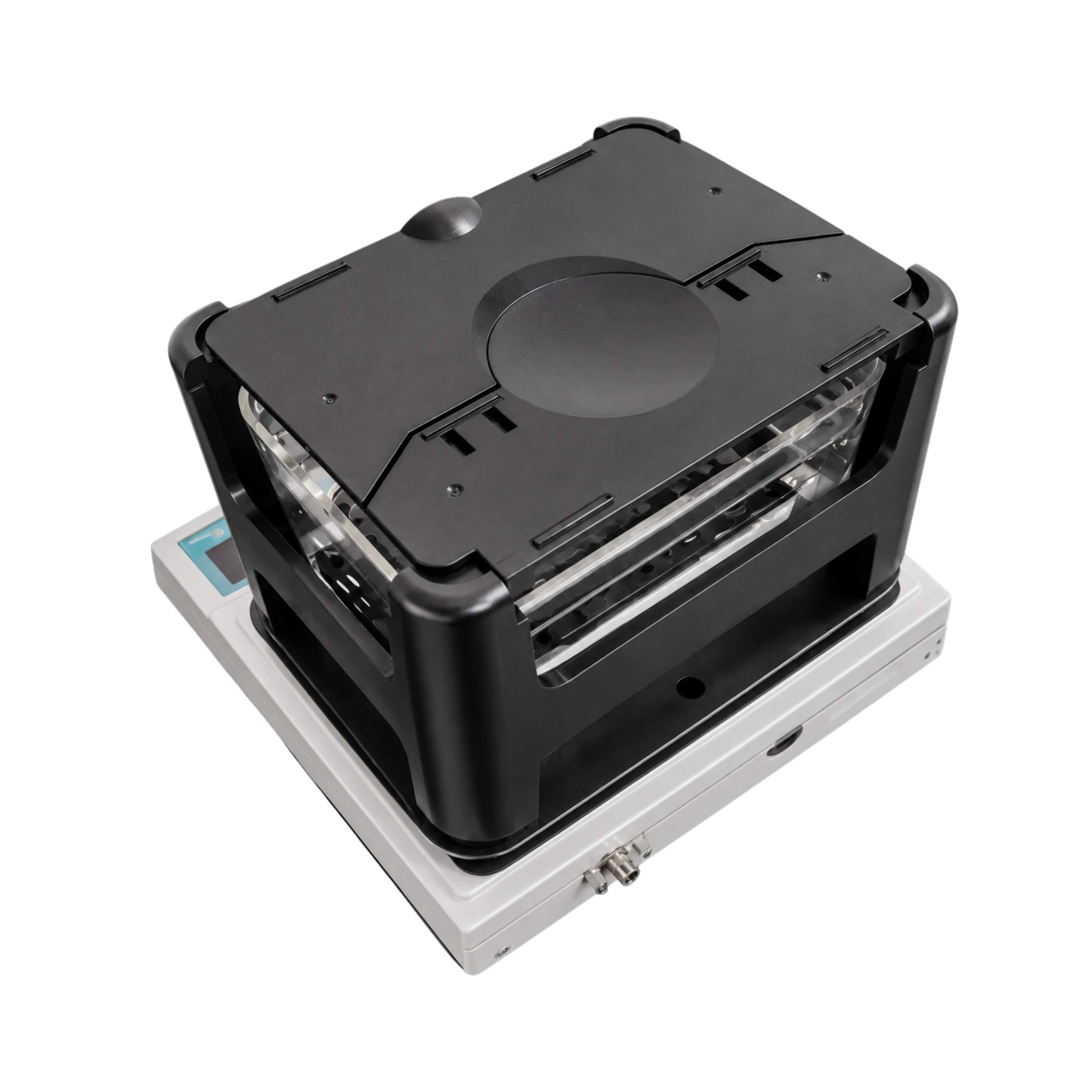

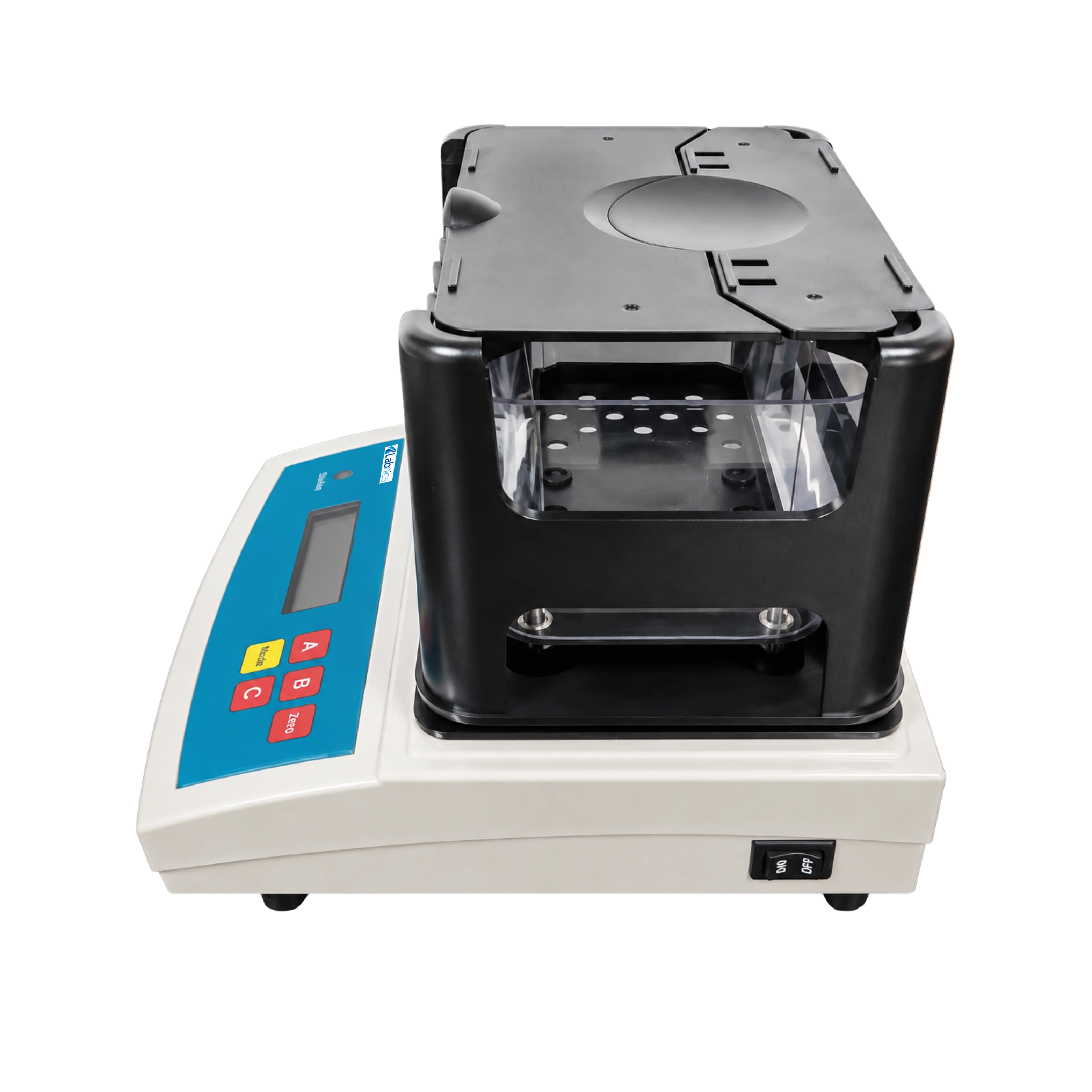

Solid density meter NSDM-100

Solid Density Meter NSDM-100 is a high-precision density meter that employs Archimedes principle displacement method, comes with a density range of 0.001 to 99.999 g/cm3 that measures within 5 s, and 0.005 to 300 g capacity range. Features auto-correction & auto-detection calibration mode, and distilled water testing method for ideal results. Designed with ergonomic stainless steel specific gravity measuring frame and LCD display. Offers up to one group of weight-value data storage, has RS-232C interface for easy data processing.

---

Get Quote Catalog

Specifications

Capacity	0.005-300 g
Density resolution	0.001 g/cm3
Density range	0.001 to 99.999 g/ cm3
Measuring time	About 5s
Measuring principle	Archimedes principle
Specific gravity measuring time	Unibody injection forming professional specific gravity measurement frame
Measuring tank	Unibody injection forming transparent measuring tank
Power supply	AC110/220V+10%, 50/60Hz
Package size (W×D×H)	450×200×360 mm
Gross weight	4.5 kg

Features

• High-precision liquid density meter employing Archimedes principle displacement method
• Capacity ranges from 0.005 to 300 g with a measuring duration of 5 s
• Density ranges from 0.001 to 99.999 g/cm3 with 0.001 g/cm3 resolution
• Temperature ranges from normal to 100 °C
• LCD display ensures easy monitoring
• Ergonomic stainless steel specific gravity measuring frame, rust proof
• Up to one group of weight-value data can be stored
• Auto correction and auto-detection calibration mode, user-friendly and reliable
• Distilled water testing method for ideal results
• RS-232C interface for simple data processing

Applications

• Solid Density Meter is used to measure the density of any type of liquid and special liquid such as volatile liquid, corrosive liquid, etc. across chemical, alcohol, pharmaceutical, oil & gas, petrochemical industries, etc.

Standard Accessories

Tank
Testing board
tweezer
thermometer
100G weight
Windshield
A set of particles measuring assembly
A set of floating body measuring assembly
Power transformer

Optional Accessories

DE - 40 printer
