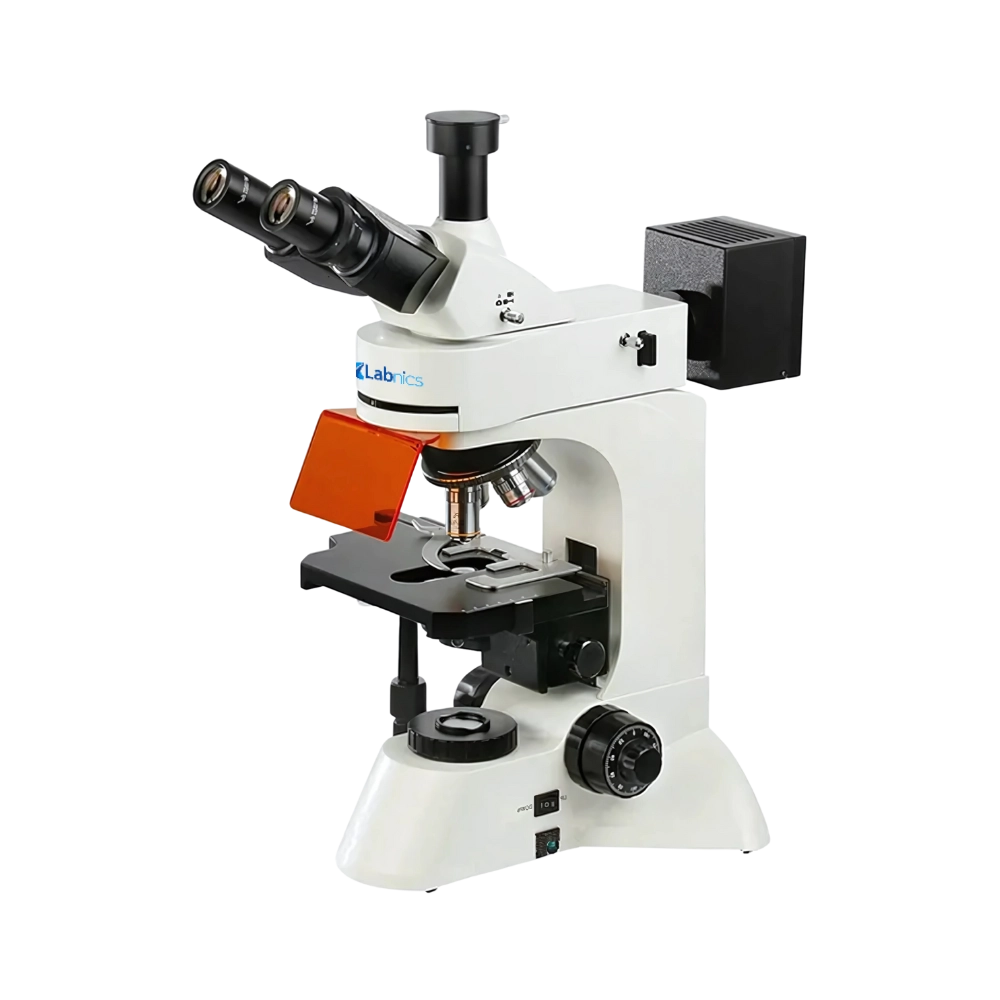

Fluorescence Microscope NFM-103 provides WF10× (Φ22mm) eyepieces positioned at a 30° inclination for user comfort. It offers camera connectivity for real-time imaging and accurate documentation. Our unit features a modular design with an advanced infinity optical system. It includes a double-layer mechanical stage for smooth and precise slide movement. This microscope uses high-brightness LED light sources for efficient and stable illumination.
$3,225.00
| Eyepiece | WF10× (Φ22mm) |
| Infinity plan achromatic objectives | PL 4×/0.10: Work distance: 19.8 mm PL 10×/0.25: Work distance: 5.0 mm PLF L40×/0.85ε spring: Work distance: 0.42 mm (No magnification spherocromatic aberration) PL 100×/1.25 Spring, oil: Work distance: 0.36 mm |
| Eyepieces tube | Trinocular, Inclination of 30° |
| LED wave band | Green ( 475nm to 490nm) |
| Fluorescence filters | B (Blue) and G (Green) |
| Transmitted illumination filters | Blue filter and ground glass |
| Condenser | Abbe condenser NA. 1.25, rack & pinion adjustable |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing 2 μm |
| Nosepiece | Quadruple (Backward ball bearing inner locating) |
| Epi-fluorescent illumination system | 3W high brightness LED |
| Moving range | 75 × 50 mm |
| Dimension | 210 × 140 mm |
Integrated field diaphragm
Ergonomic design
Durable construction
Trinocular head option
Low power consumption
Fluorescence Microscope NFM-103 is ideal for biopharmaceutical studies, medical diagnostics, disease research, and for performing fluorescence imaging in clinical and laboratory settings.
1: Can I capture images using this Fluorescence Microscope NFM-103?
Yes, the trinocular head allows for easy camera attachment, enabling high-quality imaging and documentation of fluorescence observations.
2: How does the fluorescence microscope help in reducing chromatic aberration?
The infinity plan achromatic fluorescent objective lenses are engineered to eliminate magnification chromatic aberration, delivering sharp and colour-accurate images across the entire field of view.
3: How should I maintain the LED illumination system for optimal performance?
Keep the light source area clean and avoid direct contact with LED surfaces. Periodically check for consistent brightness, and replace the LED module if a noticeable decline in illumination occurs.
4: Is this Fluorescence Microscope NFM-103 suitable for precise and stable sample positioning?
Yes, it features a double-layer mechanical stage with fine movement control (75mm x 50mm range), allowing smooth and accurate sample navigation during analysis.
5: Is this fluorescence microscope compatible with various types of biological samples?
Yes, it supports a wide range of stained and fluorescent-labelled samples, making it suitable for medical diagnostics, cell biology, and pharmaceutical research.
