Shaker Water Bath NSWB-601

Shaker Water Bath NSWB-601

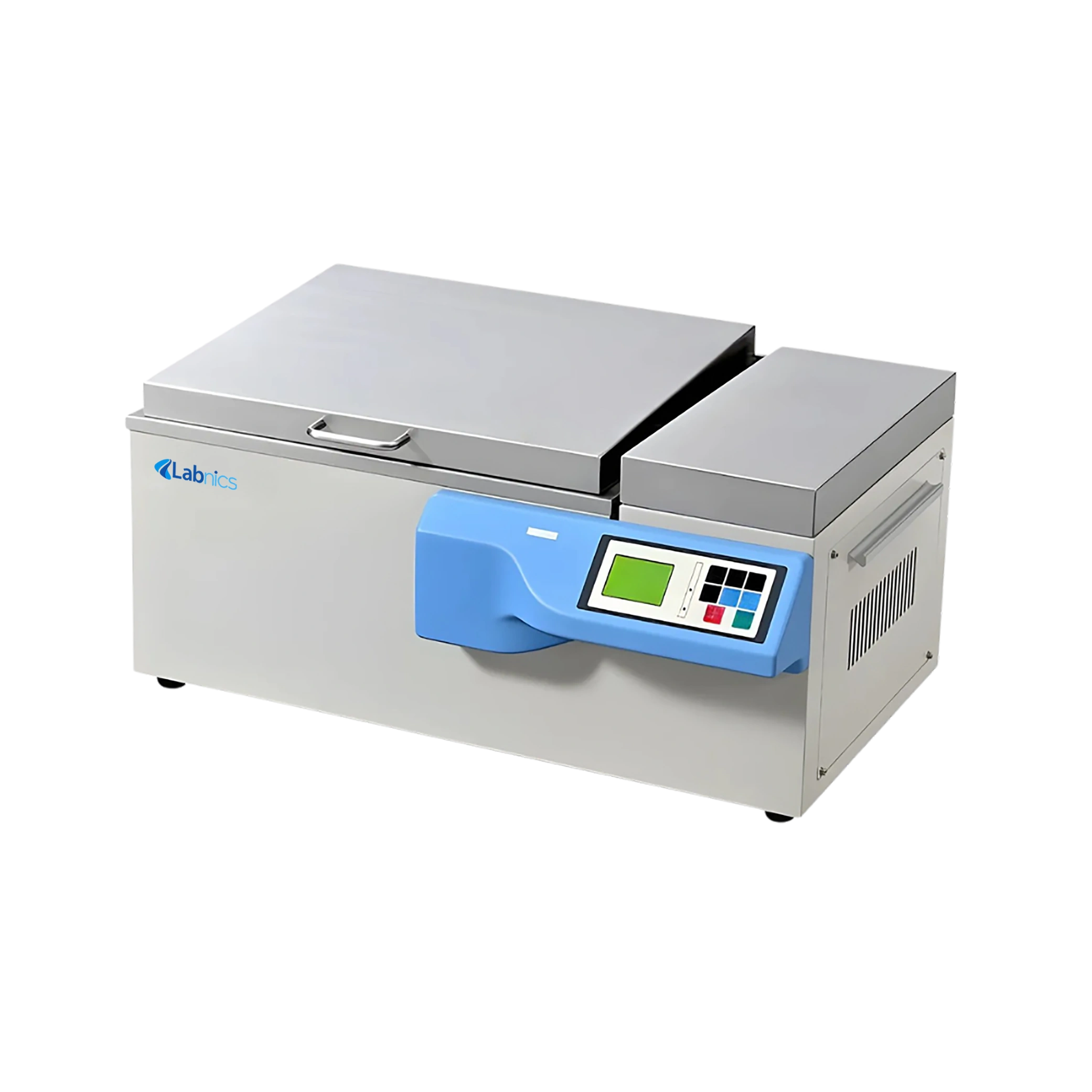

Shaker Water Bath NSWB-601 is designed with an 82-liter capacity to accommodate multiple samples efficiently. It maintains uniform temperature using forced circulation convection. This unit ensures precise regulation through a PID microcomputer controller. It provides a 25 mm throw to ensure gentle yet effective agitation of samples. Our water bath includes intuitive LCD control with a large screen for easy monitoring and parameter adjustments.


$3,525.00

Catalog

Specifications

Door opening method Door upward
Capacity 82 liters
Maximum loading capacity 1000ml×9
500ml×16
250ml×28
Temperature range RT to 100°C
Temperature accuracy ±0.1°C
Temperature uniformity ≤±0.2°C
Temperature editing Repeat/Pace/8-segment curve editing
Rotation way Reciprocating switchable
Rotation speed 20 to 200 rpm
Rotation accuracy ±1 rpm
Throw 25 mm
Timing range 0 to 999.59H
Display LCD screen
Control P.I.D microcomputer
Circulation Forced circulation convection
Drive mode Single-axis balanced drive
Tray material/Chamber material Stainless steel type 304
Bearings Original imported double row bearings
Clamp types Flask clamp, spring plate
Power consumption 2300W
Power supply 220 to 240V, 50/60Hz
Tray size 590×390mm
Internal dimension 700×455×260mm
External dimension 942×580×405mm
Net weight 68 kg

Features

  • Stainless steel chamber
  • Low-noise operation
  • Safety overcurrent protection
  • Speed monitoring system
  • Corrosion-resistant construction
  • Adjustable flask clamps
  • Energy-efficient design

Applications

  • Shaker Water Bath NSWB-601 is used to maintain precise temperature control while providing uniform and effective agitation for liquid samples. It is ideal for laboratories, research facilities, and quality control environments requiring reliable sample incubation and mixing.

Ask Expert

FAQ for Shaker Water Bath NSWB-601

1: Is the Shaker Water Bath NSWB-601 suitable for corrosive samples?

Yes, the chamber is made of high-grade stainless steel with an optional anti-corrosion casing. It is perfect for experiments involving strong acids, alkalis, or other corrosive substances.

2: How quiet is the operation?

Our Shaker Water Bath operates with low noise levels thanks to its single-axis five-dimensional dynamic balance drive technology. It ensures a smooth, vibration-free experience, making it suitable for quiet laboratory environments.

3: How often should the Shaker Water Bath NSWB-601 be cleaned?

The Shaker Water Bath should be cleaned regularly, ideally after every use or at least once a week. It prevents residue buildup, maintains sample purity, and ensures consistent temperature performance.

4: What is the recommended cleaning method?

It is best cleaned using mild detergents and a soft cloth or sponge. It avoids abrasive materials that could damage the stainless steel chamber or the tempered glass door.

5: How can I prevent water leaks and electrical issues?

Our Shaker Water Bath should be checked regularly for proper sealing of the chamber door and correct water levels. It also helps to ensure the unit is connected to a stable power supply with proper grounding.

Related Models Of Shaker Water Bath

Labnics Shaker Water Bath offers variable speed control, enabling users to adjust mixing conditions to meet different needs. They feature an LCD that displays measured values, set values, and time settings for easy monitoring. These models have a durable stainless-steel structure with a lid to minimize heat loss and evaporation. They include built-in leakage and overcurrent protection, preventing damage and ensuring reliable performance. Our units include a power-off recovery function, ensuring automatic restoration of settings after power interruptions.
