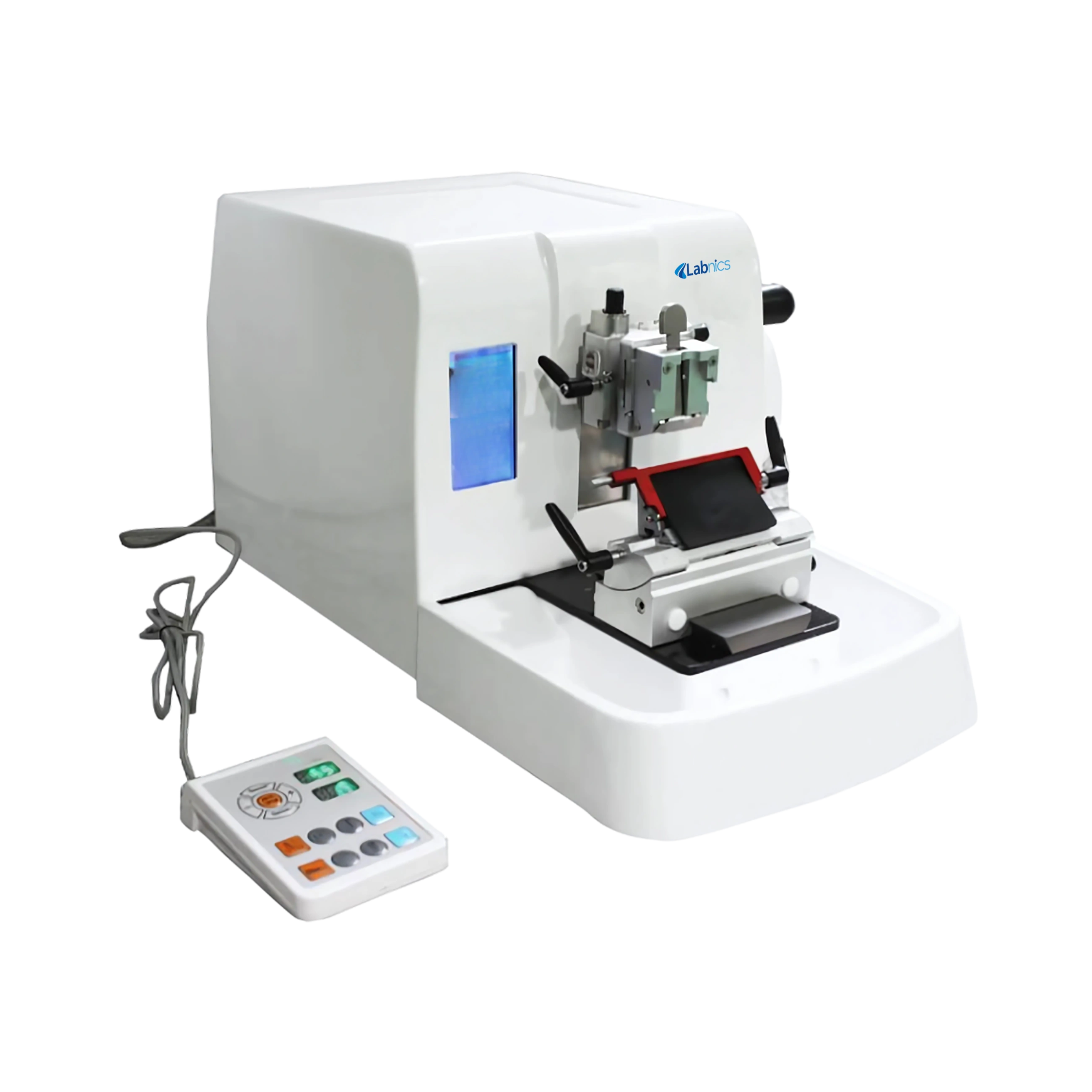

Semi-Automatic Microtome NSAM-102 offers a thickness range of 0 to 100 μm, delivering reliable results. It allows easy adjustment of trimming thickness up to 800 μm, ensuring smooth sample preparation. This microtome features a 30mm horizontal and 70mm vertical stroke for versatile sample sizes. It can handle large sections, allowing for flexible cutting options. Our unit offers a knife angle adjustment for precise and consistent cutting.
$6,563.00
Specifications
| Slice thickness | 0μm to 100μm |
| Slice setting range | 0μm to 5μm increment value 0.5μm 5μm to 10μm increment value 1μm 10μm to 20μm increment value 2μm 20μm to 50μm increment value 5μm 50μm to 100μm increment value 10μm |
| Trimming thickness | 0μm to 800μm |
| Trimming setting range | 0μm to 10μm increment value 1μm 10μm to 20μm increment value 2μm 20μm to 50μm increment value 5μm 50μm to 100μm increment value 10μm 100μm to 800μm increment value 50μm |
| Sample retraction | 0μm to 250μm |
| Horizontal specimen stroke | 30mm |
| Vertical specimen stroke | 70mm |
| Maximal slice section | 50×45mm |
| Slip precision | ± 5% |
| Knife holder angle | 0 to 15° |
| Input power | AC220V/110V, 50/60HZ |
| Dimension (L×W×H) | 305×450×600mm |
| Packaging dimension (L×W×H) | 480×510×570mm |
| Net weight | 34kg |
| Gross weight | 44kg |
Features
Applications
Ask Expert
FAQ for Semi-Automatic Microtome NSAM-102
1: What types of samples can the Semi-Automatic Microtome NSAM-102 handle?
The Semi-Automatic Microtome NSAM-102 is designed for sectioning biological tissues, including paraffin-embedded and fixed specimens. It is widely used in histology, pathology, and medical research for producing thin, consistent slices for microscopic analysis.
2: Does it help preserve samples during cutting?
Yes, the sample retraction function reduces friction between the blade and specimen after each cut. This helps maintain the structural integrity of the tissue and reduces blade wear.
3: What does the intelligent half-repair function do?
The intelligent half-repair function automatically corrects minor inconsistencies in sectioning. This feature helps ensure uniform slice thickness, improving cutting precision and minimizing manual adjustments.
4: Is remote or external control possible?
Yes, the Semi-Automatic Microtome NSAM-102 features an external control panel for enhanced safety and ease of use. Operators can adjust settings without direct contact with the slicing area, reducing handling risks.
5: What safety precautions should I follow?
Always retract the blade after use, secure samples properly, and avoid manual contact with sharp edges. Operators should wear protective gloves and use the external control panel for safer handling.
Labnics Semi Automatic Microtome includes dual operation modes, enabling users to switch between fully automatic and manual settings. These are equipped with a high-quality imported motor, ensuring precise and dependable performance. They minimize specimen damage, improving both productivity and accuracy during operation. These units are equipped with a simple control panel for easy adjustments to trimming or section thickness.
