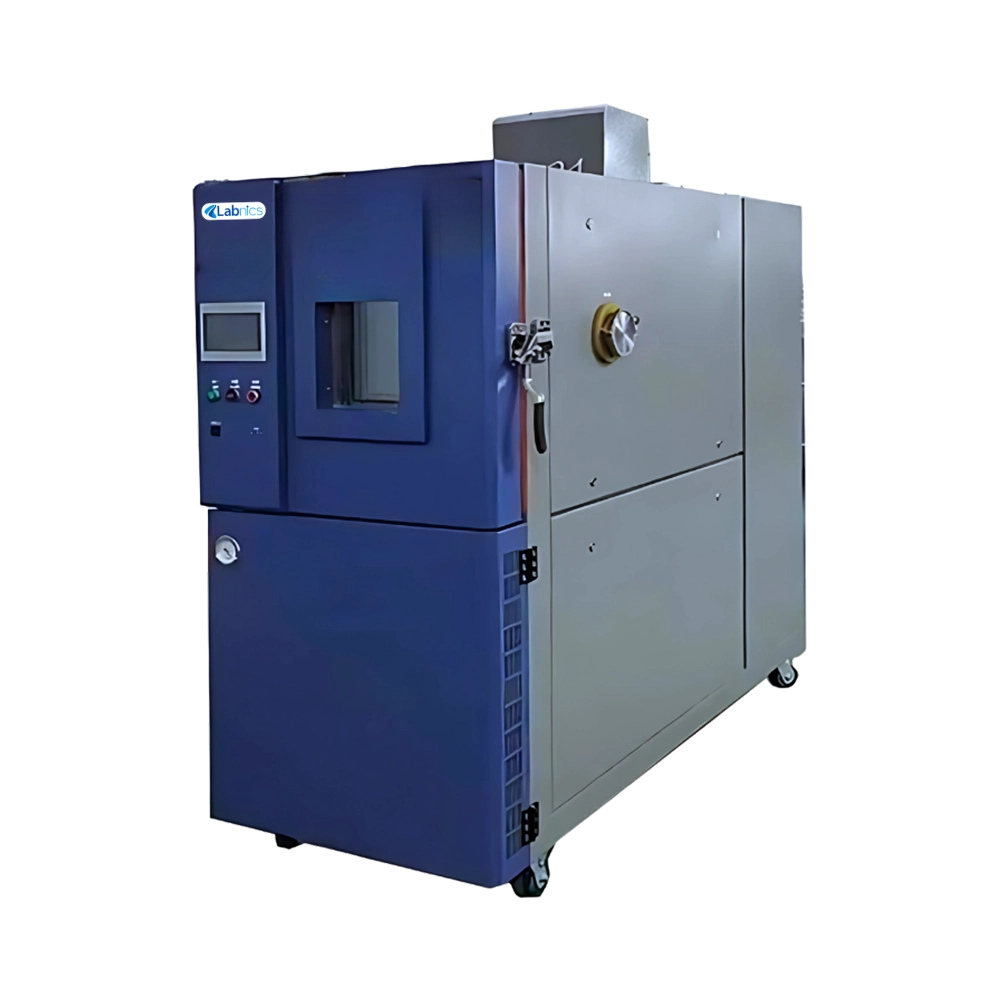

Environmental Test Chamber NETC-108

Name: Environmental Test Chamber NETC-108
Brand: Labnics
SKU: NETC-108
Rating: 4.9 (737 reviews)

Environmental Test Chamber NETC-108 features a 125L capacity and an adjustable temperature range of -20℃ to +150℃. It is constructed from high-grade stainless steel, ensuring durability and corrosion resistance. This unit has a centrifugal circulation motor for consistent airflow and temperature stability. It includes a 7-inch touchscreen controller with an intuitive interface for easy operation. Our chamber precisely simulates temperature and altitude conditions for reliable testing.

$38,750.00

Data Sheet

Specifications

Capacity	125 L
Temperature Range	-20℃ to +150℃ (Adjustable)
Heating Rate	+25℃ to +150℃ at ≥ 3℃/min
Cooling Rate	+25℃ to -20℃ at ≥ 1℃/min
Temperature Resolution	0.1℃
Temperature Fluctuation	±0.5℃ (Normal Pressure, No Load)
Temperature Uniformity	±2.0℃ (Normal Pressure, No Load)
Temperature Deviation	±2.0℃ (Normal Pressure, No Load)
Pressure Range	Normal Pressure to 500Pa
Environmental Temperature	5℃ to 25℃ ±3℃
Humidity	≤85%
Air Pressure	86kPa to 106kPa
Depressurization Rate	Normal Pressure to 500Pa in ≤ 60 min (No Load)
Chamber Material	Inner: SUS304 Stainless Steel External: SUS304 or Stoving Varnish
Insulation Material	PU Polyurethane Foam (100mm thick)
Duct Circulation	Centrifugal Circulation Motor, Upper Air Outlet & Lower Return Air
Sample Holder	304# SUS Stainless Steel, 2 Adjustable Shelves
Door	Left-to-Right Opening, Viewing Window, Anti-Condensation Thermal Device
Control Panel	7-inch Touchscreen, USB Data Download
Refrigeration Compressor	Low Noise, Low Vibration
Evaporator	Finned Tube Evaporator
Condenser	Air-Cooled, Ambient Temperature Control (5-25℃ ±3℃)
Expansion System	Refrigeration Volume Control (Capillary)
Refrigerant	R404a + R23 (Eco-friendly)
Control Modes	Program Mode (50 Programs × 50 Segments) Constant Mode (User-Defined Conditions)
Analog Output	Voltage Pulse (SSR) 2 Points, DC 24V
Communication Port	USB for Data Export (Excel Format)
Safety Protection	Compressor Over-Current, Over-Pressure, Over-Temperature Heater Over-Temperature Overload Short Circuit Motor Overheating Power Supply Failure
Maximum Current	24A
Power Consumption	15.5 KW
Power Supply	AC380V ±10%, 50Hz (Customizable for 60Hz)
Inner Dimensions (W × H × D)	500 × 500 × 500 mm
External Dimensions (W × H × D)	980 × 1750 × 1950 mm
Overall Dimensions	1080 × 1920 × 2100 mm
Net Weight	413 Kg
Gross Weight	500 Kg

Features

USB data export
Customizable test programs
Running indicator
PT100 three-wire high-precision sensor
High-performance vacuum pump

Applications

Environmental Test Chamber NETC-108 simulates temperature, pressure, and humidity to assess the stability of nitrogen-dosed PET bottles. It is used in arid, semi-arid, and industrial packaging environments to ensure product reliability.

Standard Accessories

Humidity fabric × 5

Shelves × 2

Castor × 4 and Foot Cup × 4 (installed)
