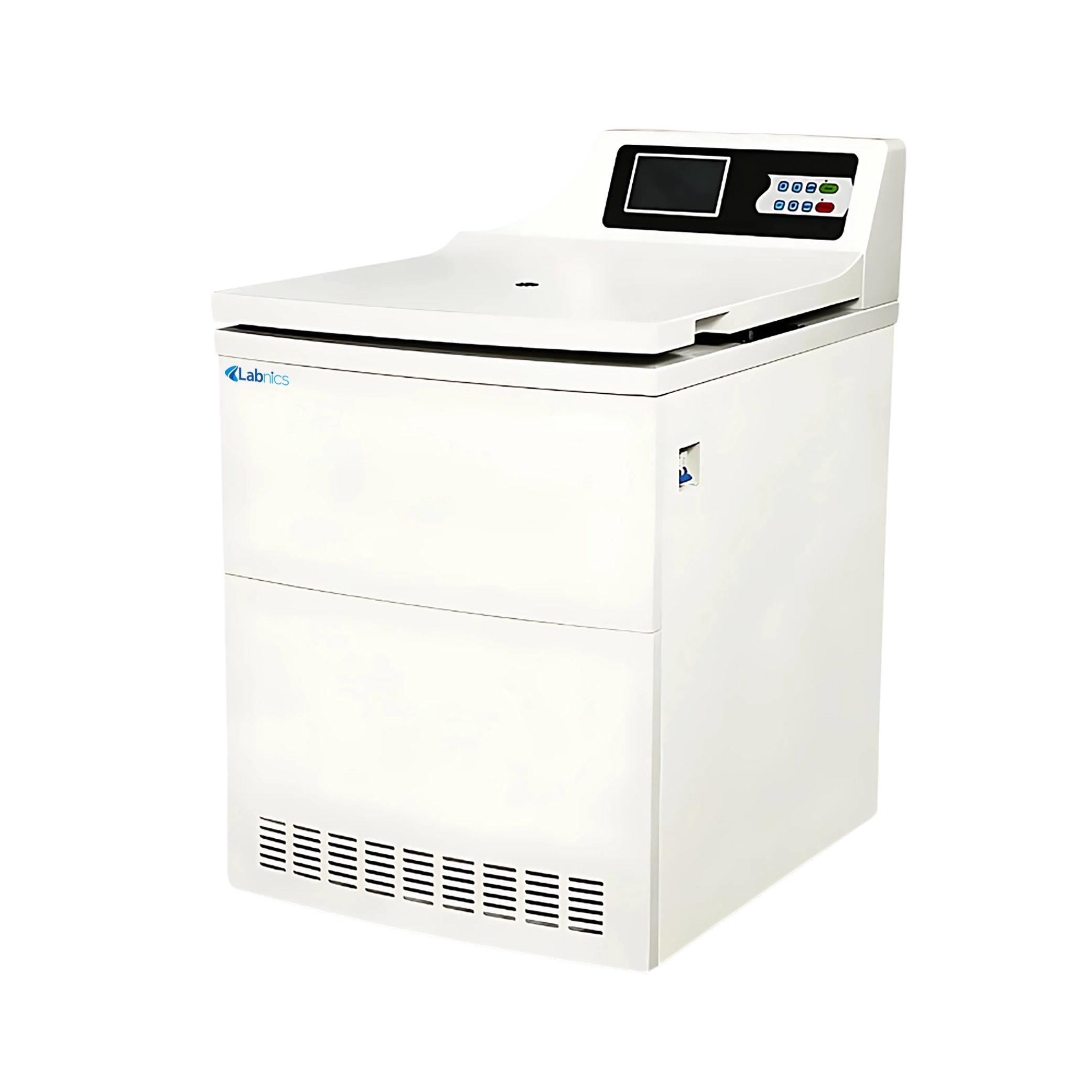

Floor Type Refrigerated Centrifuge NFRC-103

Floor type refrigerated centrifuge NFRC-103

Floor Type Refrigerated Centrifuge NFRC-103

Floor type refrigerated centrifuge NFRC-103 is efficiently designed with a high-speed centrifugation system. It is an ideal instrument for blood separation, protein separation, and cell collection where repeatability and reliability of speed, time, temperature, acceleration, and deceleration are significant factors in obtaining perfect separations of the distinct blood fractions. It is secured with an electronic and mechanical lid lock that ensures the safety of the equipment as well as the user.

Specifications

Max speed 6000r/min
Max RCF 6680 ×g
Max capacity 6×1000ml
Speed Accuracy ±10r/min
Timer range 0-99h 59 min
Temperature range (-20 °C to 40 °C)
Control and drive microprocessor control/direct drive
Acc/dec rate 0-9 (Grade)
Program store 35
Motor power 3.8 KW
Refrigerator power 2.2 KW
Noise ≤60 dB(A)
Power supply AC220V/110V 50Hz 35A
Refrigeration system Big Brand High-performance Compressor CFC-free Refrigeration System
Dimensions (L×W×H) 730 × 840 × 1200 mm
Weight (without rotor) 260 kg

Features

Applications

It is Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products.

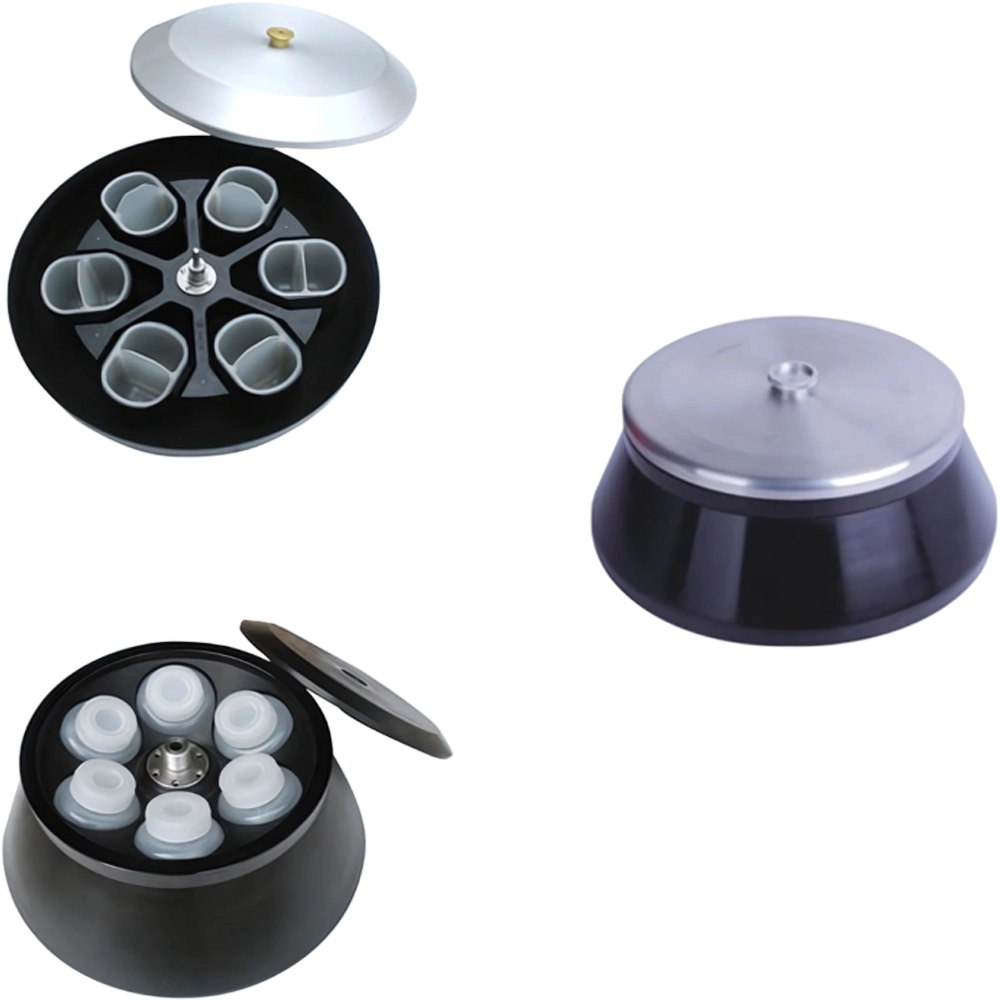

Optional Accessories

Rotor No. Rotor Type Maximum Capacity (mL) Maximum Speed (rpm) Maximum RCF (xg)
1 Angle Rotor 6×500 ml 6000rpm 6680×g
2 Swing Rotor 6×1000 ml 4200rpm 5600×g
3 Swing Rotor 6×1000 ml 4000rpm 5600×g
