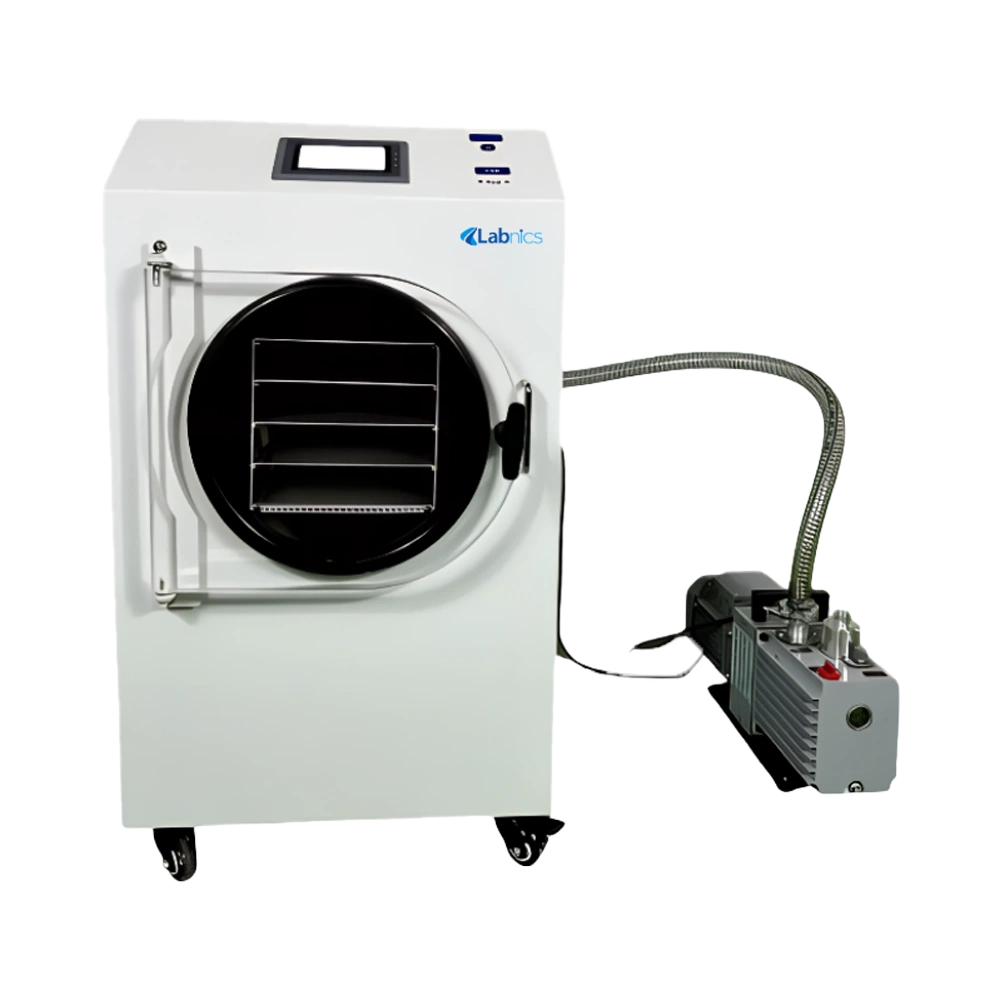

Vacuum Freeze Dryer NVFD-403 provides a 0.65 m² drying area and supports up to 10 kg per batch. It has a six-tray setup with 52 mm spacing, enabling efficient drying of bulkier materials. Our built-in cold trap maintains a low -55 °C, ensuring quality preservation. This is constructed with stainless steel, which makes it durable and easy to maintain. Our energy-efficient system is designed for precise drying with minimal operational effort.
$7,225.00
| Drying Area | 0.65 ㎡ |
| Tray Spacing | 52 mm |
| Tray Size | 250 × 425 mm |
| Number of Trays | 6 |
| Capacity per Batch | 8 to 10 kg |
| Material | SUS304 Stainless Steel |
| Cold Trap Temperature | -55 °C |
| Ultimate Vacuum Degree | ≤ 2 Pa |
| Voltage | 220V / 50Hz (Customizable) |
| Dimensions (L×W×H) | 635 × 723 × 1130 mm |
| Packing Dimensions (L×W×H) | 710 × 800 × 1500 mm |
| Net Weight | 125 kg |
| Gross Weight | 172 kg |
Wide tray spacing
Strong vacuum system
Energy-efficient performance
Corrosion-resistant structure
Low maintenance
Stable temperature control
Vacuum Freeze Dryer NVFD-403 used to preserve temperature-sensitive materials by removing water under vacuum. It is widely implemented in chemical analysis labs, herbal processing units, and food quality testing facilities.
1: What is the batch capacity of the Vacuum Freeze Dryer NVFD-403?
Vacuum Freeze Dryer NVFD-403 can handle 8 to 10 kg per cycle, making it ideal for medium to large volume drying needs in labs and small-scale production setups.
2: What makes this Vacuum Freeze Dryer NVFD-403 efficient for herbal processing?
Vacuum Freeze Dryer NVFD-403 has wide 52 mm tray spacing and -55?°C cold trap provide uniform sublimation of moisture without damaging bioactive compounds in herbal samples.
3: How easy is it to maintain the Vacuum Freeze Dryer NVFD-403?
Vacuum Freeze Dryer NVFD-403 has SUS304 stainless steel inner surface ensures easy cleaning and corrosion resistance, while the compact layout facilitates quick access for inspection or maintenance.
4: Is the power supply customizable in the Vacuum Freeze Dryer NVFD-403?
Yes, the Vacuum Freeze Dryer NVFD-403 comes with a standard 220V/50Hz setup but can be customized to suit different power systems upon request.
5: Does it offer stable vacuum control during drying in the Vacuum Freeze Dryer NVFD-403?
Absolutely. Vacuum Freeze Dryer NVFD-403 has ? 2 Pa vacuum level ensures consistent sublimation throughout the cycle, protecting the integrity of even highly sensitive materials.
Labnics Vacuum Freeze Dryer removes moisture from sensitive substances while preserving their structure. They consume minimal energy and operate with high efficiency. Our freeze dryers use vacuum chambers to protect heat-sensitive materials from thermal damage. These are built with durable, corrosion-resistant materials that ensure long-term performance. They incorporate eco-friendly features and low-noise operations for various applications.
