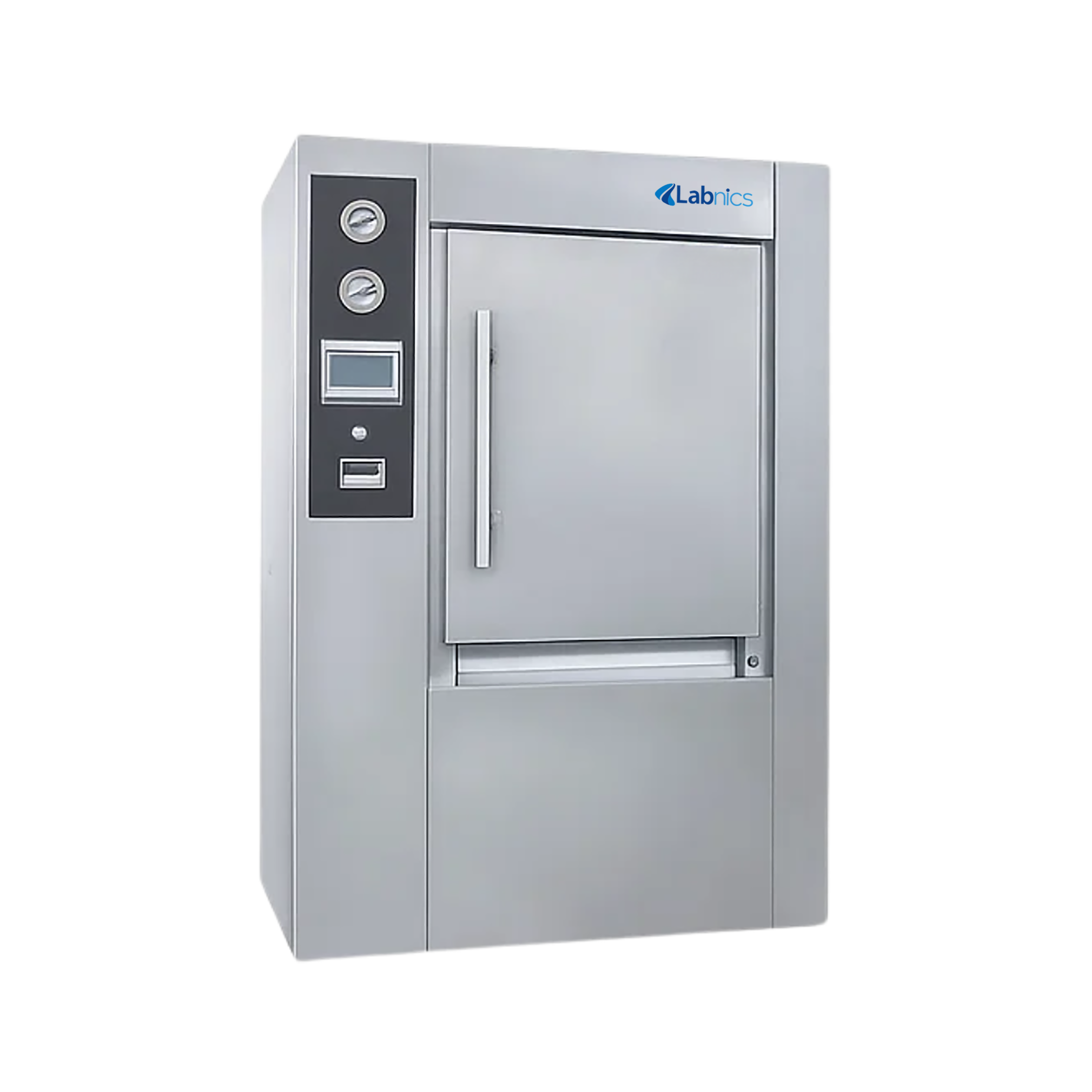

Pulse Vacuum Autoclave NPVA-106 offers a 4000L capacity and functions at a working temperature of 139°C. It has a highly efficient air filter with ≤ 2-micron precision, achieving 99.97% sterilization. Our unit features an independent steam inlet design, allowing steam to bypass the jacket. It includes BD test procedures and a vacuum leak test procedure to ensure process integrity. This pulse vacuum autoclave comes with an advanced Siemens PLC and a color touchscreen interface for easy control.
| Capacity |
4000L |
| Pressure of inner chamber |
-0.1 to 0.3Mpa |
| Pressure of jacket |
0.3Mpa |
| Designed temperature |
150°C |
| Working temperature |
139°C |
| Working pressure |
0.25Mpa |
| Vacuum leakage rate |
≤0.13KPa/min |
| Ultimate vacuum |
-97Kpa |
| Opening pressure for the inner chamber’s safety valve |
0.28Mpa |
| Opening pressure for jacket’s safety valve |
0.28Mpa |
| Precision of sterilization temperature control |
0 to 2°C |
| Temperature uniformity |
±1°C |
| Negative pressure pulsation vacuum amplitude and times |
Amplitude -80 to 0Kpa, Times 1 to 99 |
| Times of pulses across pressure |
Amplitude -80 to 80Kpa, Times 1 |
| Times of positive pressure pulses |
1 to 3 |
| Steam consumption |
215Kg/C |
| Tap water consumption |
2000Kg/C |
| Power consumption |
380V, 50Hz |
| Power supply |
8kW |
| Internal dimension |
900×1380×3250mm |
| External dimension |
3580×1860×2230mm |
| Packaging dimension |
3550×2000×2200mm |
| Weight |
4500Kg |
FAQ for Pulse Vacuum Autoclave NPVA-106
1: Does the Pulse Vacuum Autoclave NPVA-106 have features for traceability and record-keeping?
Yes, the Pulse Vacuum Autoclave supports full traceability with communication ports that connect to quality management systems. It also prints real-time process data and has a paperless recorder option, so you always have documented proof of sterilization.
2: How durable is the door sealing system?
The sealing ring is made from high-quality, tear-resistant silicone rubber with a special wear-resistant coating. It can last for up to 1500 cycles, providing a long service life and consistent sealing performance throughout its use.
3: Is drying after sterilization effective?
Yes, after sterilization, the vacuum dehumidification combined with a jacket drying system quickly removes moisture from items. This ensures the sterilized products are dry and ready for immediate use or storage.
4: How is the sterilization process controlled?
The Pulse Vacuum Autoclave is equipped with a Siemens PLC and a color touchscreen that automates the entire sterilization cycle. You can easily monitor temperature, pressure, time, and process status in real-time, making the operation straightforward and efficient.
5: How is the Pulse Vacuum Autoclave NPVA-106 cleaned after use?
Cleaning involves wiping down the inner chamber and checking the drainage system. The automatic drainage device helps remove condensation and water, ensuring no residue affects sterilization quality.
