Automatic Hydraulic Pellet Press NAHPP-104

Automatic Hydraulic Pellet Press NAHPP-104

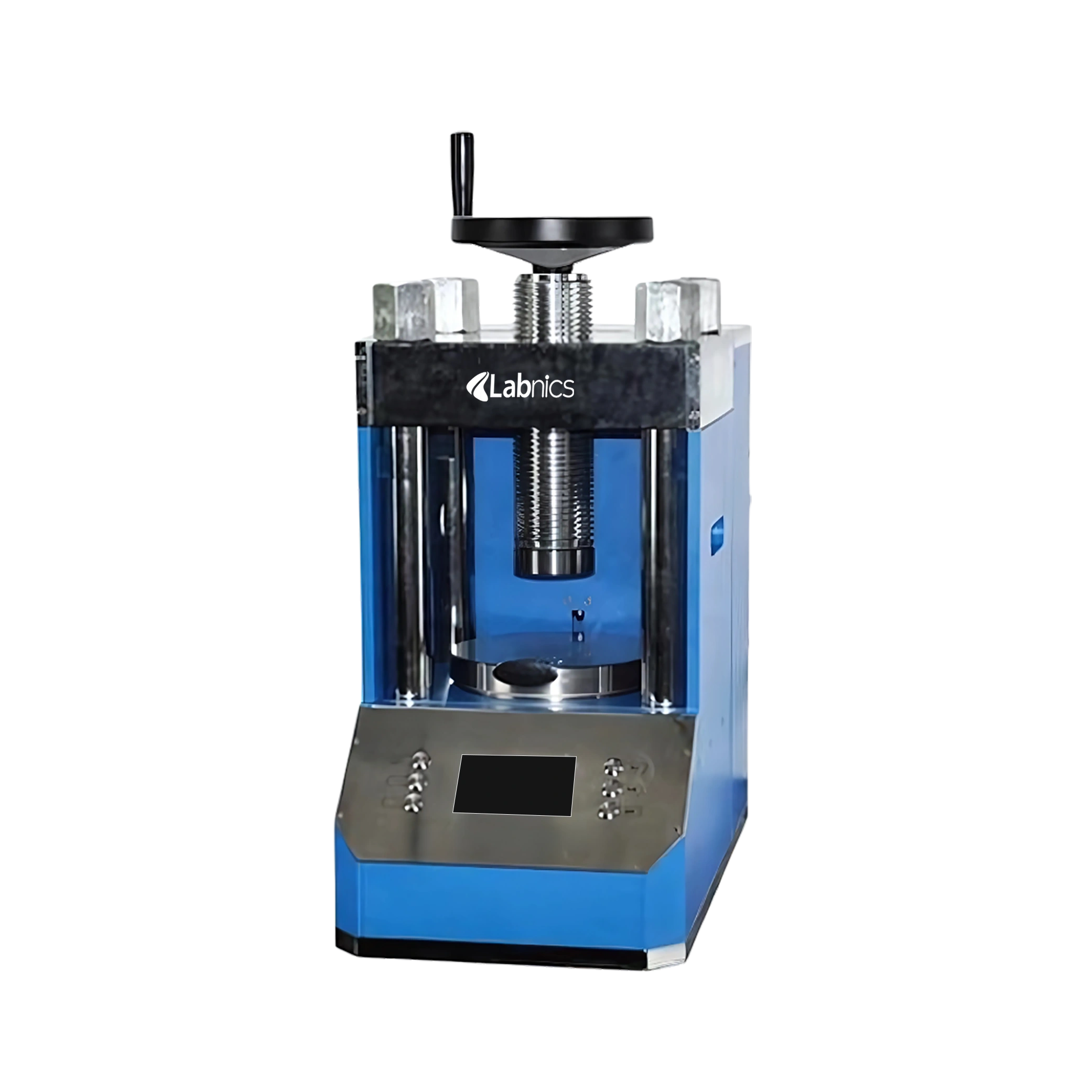

Automatic Hydraulic Pellet Press NAHPP-104 is a lab instrument designed for compressing powder samples into pellets. It offers a pressure range of 1 to 150.0 Ton with precise digital control. This press features automatic operation for consistent and repeatable results. Its compact design ensures space-saving and easy integration in lab setups. Our model is built-in with safety features that enhance user protection during operation.


$122,500.00

Catalog

Specifications

Pressure Range 1 to 150.0 T
Pressure holding time ≥1S (has no limit)
Pressurization process Program pressurization-Program holding -Timed pressure release
Intensity conversion Automatic conversion of die pressure
LCD 7” LCD Screen
Limit switch Automatic pressure release when the oil cylinder reaches the limited height
Equipment protection Steel plate equipped with plexiglass door
Oil cylinder travel 50mm (T)
Power Consumption 1500 W
Power Supply 110V, 60 Hz
Spatial Space (M×N) 200 × 260 mm
Dimensions (L×W×H) 400 × 620 × 620 mm
Weight 380 kg

Features

  • Overload Protection
  • Touchscreen Interface
  • Real-Time Display
  • Noise-Free Operation
  • Emergency Stop Button

Applications

  • Automatic Hydraulic Pellet Press NAHPP-104 is designed to form uniform solid pellets from powder samples for analytical testing. It is commonly used in laboratories for materials research, pharmaceuticals, and spectroscopy analysis.

Ask Expert

FAQ for Automatic Hydraulic Pellet Press NAHPP-104

1: Does the Automatic Hydraulic Press Machine NAHPP-104 have an automatic pressure release function?

Yes, the Automatic Hydraulic Press Machine NAHPP-104 is equipped with an automatic pressure release and return mechanism.

2: How long does one operation take on the Automatic Hydraulic Press Machine NAHPP-104?

The Automatic Hydraulic Press Machine NAHPP-104 typically completes one pellet formation cycle in 1 to 2 minutes.

3: What is the estimated service life of the Automatic Hydraulic Press Machine NAHPP-104?

With proper care, the Automatic Hydraulic Press Machine NAHPP-104 can operate reliably for 5 to 10 years or more.

4: Can the Automatic Hydraulic Press Machine NAHPP-104 be moved easily?

The Automatic Hydraulic Press Machine NAHPP-104 is compact but may require a trolley or two-person handling for relocation.

5: Does the Automatic Hydraulic Press Machine NAHPP-104 require frequent maintenance?

The Automatic Hydraulic Press Machine NAHPP-104 requires routine maintenance such as oil checks and cleaning of dies and seals.

6: What is the main advantage of using an Automatic Hydraulic Pellet Press over a manual one?

Automatic Hydraulic Pellet Press offers higher speed, consistency, safety, and ease of operation.

7: What materials can be processed using Automatic Hydraulic Pellet Press?

Automatic Hydraulic Pellet Press s suitable for powders, metals, ceramics, polymers, and composite samples.

8: Can Automatic Hydraulic Pellet Press be used in high-throughput labs?

Yes, Automatic Hydraulic Pellet Press is ideal for labs requiring frequent and rapid sample processing.

9: Does it come with programmable pressure settings?

Yes, Automatic Hydraulic Pellet Press allow users to set and store pressure levels for repeatable results.

Related Models Of Automatic Hydraulic Pellet Press

Automatic Hydraulic Pellet Presses are fully automated presses designed for high-precision pellet formation. These machines operate with a high-pressure capacity for uniform compaction. These presses feature automated cycles that reduce manual intervention and improve efficiency. Our systems include safety enclosures to protect users during operation. These devices are built with noise-free programmable settings for XRF, FTIR, and other analytical applications.
