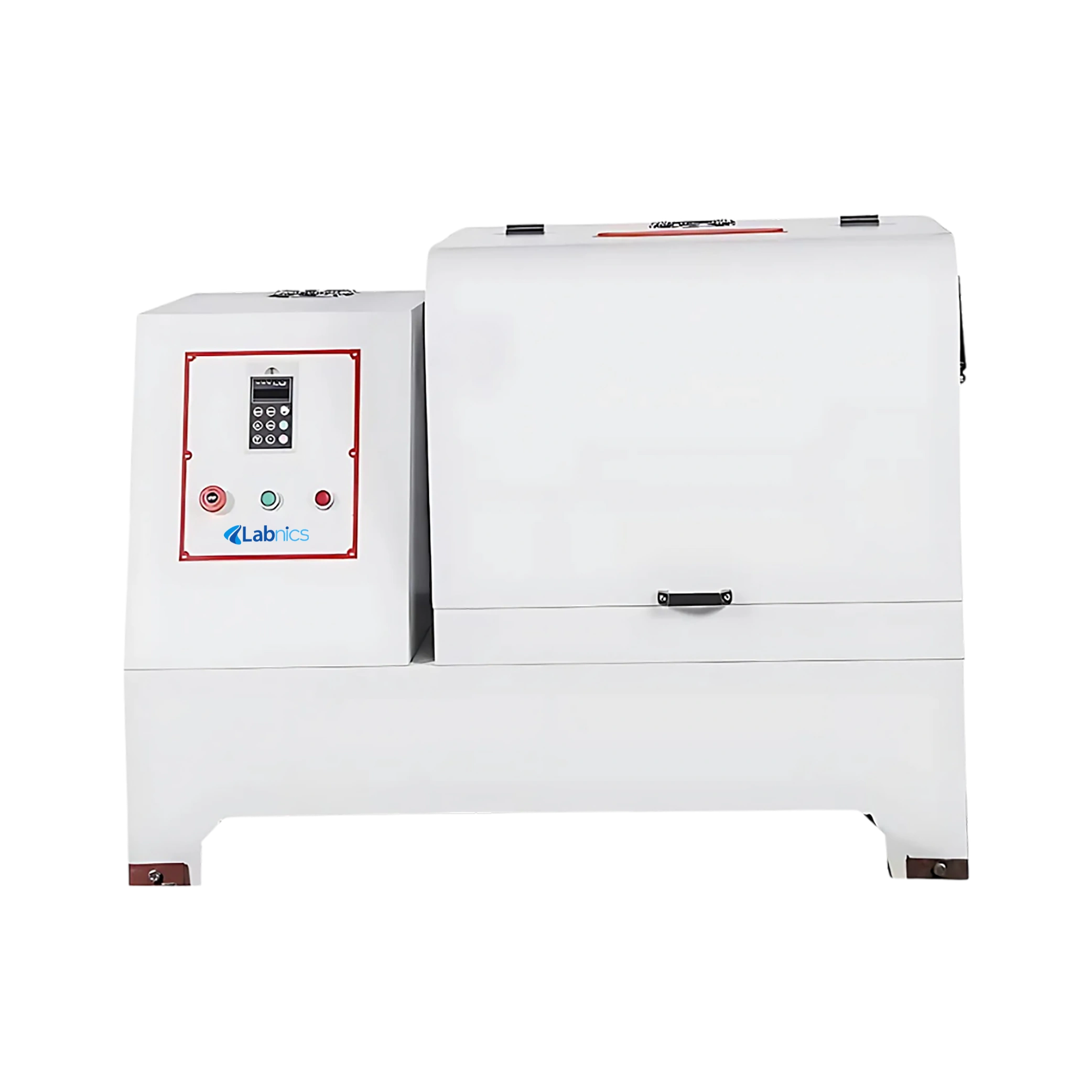

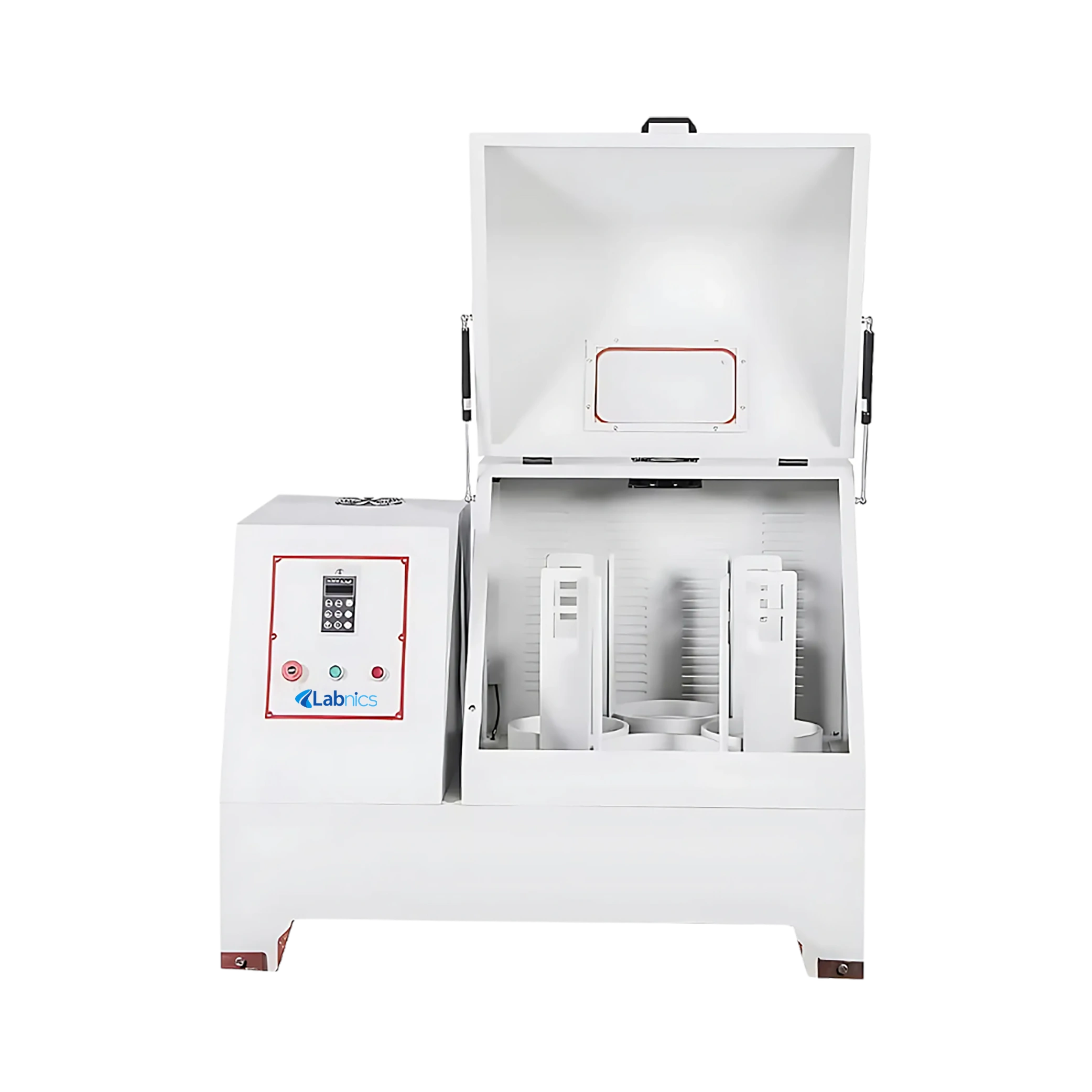

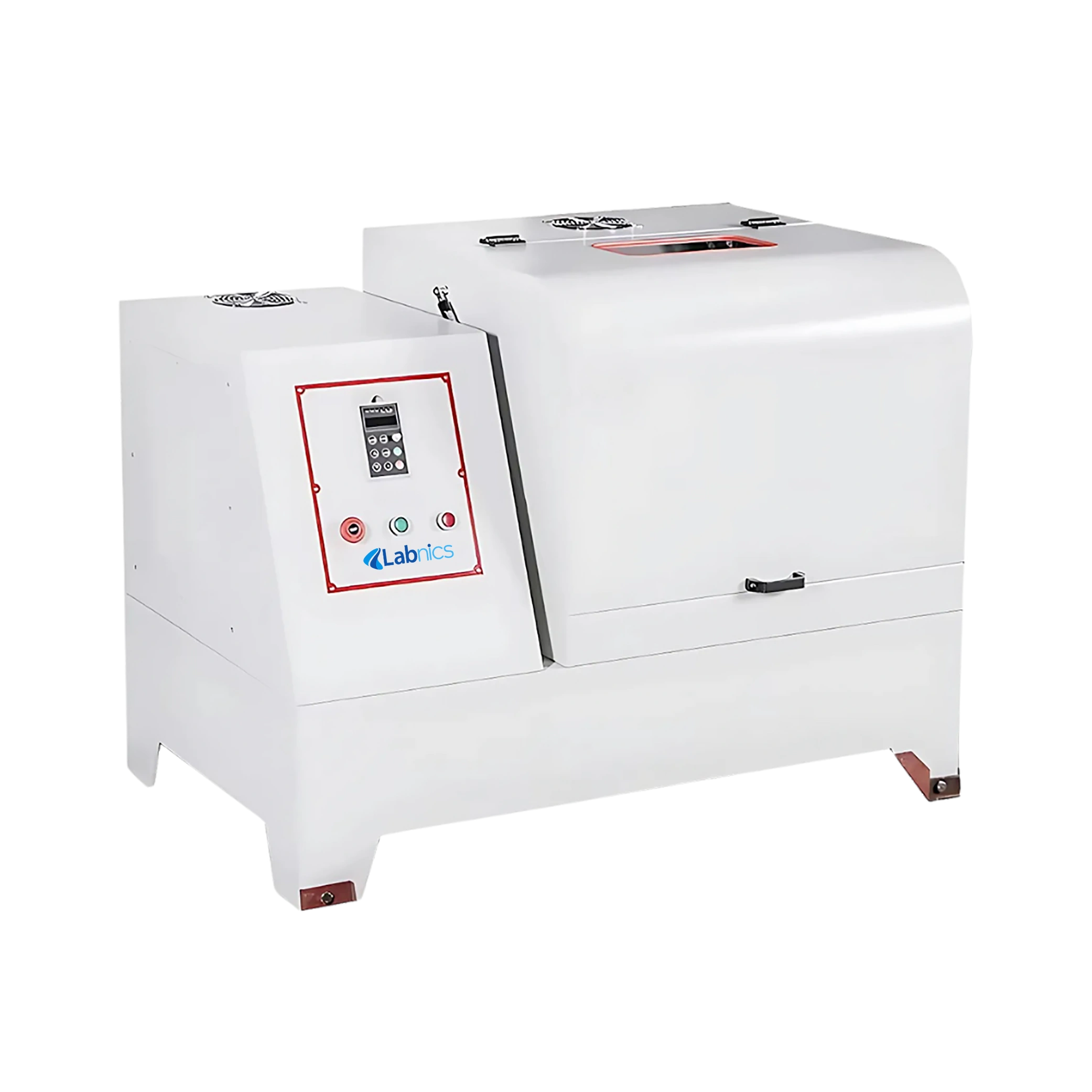

Planetary Ball Mill NPBM-400

Planetary Ball Mill NPBM-400

Planetary Ball Mill NPBM-400 offers a jar capacity of 20L for handling large sample volumes. It includes a cooling fan that ensures high-speed heat dissipation, maintaining stable operation. This unit supports four stations, allowing simultaneous use of up to four jars. It maintains a speed ratio of 2:1, optimizing the revolution and rotation balance for efficient and uniform mixing. Our ball mill is equipped with a pneumatic holder for secure and stable jar placement.


$7,488.00

Catalog

Specifications

Jar capacity 20L, each jar maximum 5L
No. of jars accommodated 2 to 4 pcs
Vacuum jar capacity 1 to 5L
Revolution speed 25 to 215 rpm
Rotation speed 50 to 430 rpm
Speed ratio 2:1 rpm
Run set time 1 to 9999 min
Forward and reverse running time 1 to 999 min
Feed particle size Solid material <10mm, Other material <3mm
Transfer method Gear transfer
Working method 2 or 4 ball mill tanks work at the same time
Maximum charge 2/3 volume of the grinding jar
Speed control mode Frequency conversion speed regulation
Control system Frequency conversion control system
Noise <65dB±5
Grinding jar optional Zirconia, Agate, Corundum, Nylon, Stainless steel, Polyurethane, Tungsten Carbide Alloy, Teflon
Total power consumption 4kW
Power supply AC380V 50Hz
Dimension 1200×750×920mm
Net weight 330 kg

Features

  • Frequency control system
  • High-speed accuracy
  • Planetary drive mechanism
  • Integrally formed main plate
  • Forward/reverse function
  • Low noise operation

Applications

  • Planetary Ball Mill NPBM-400 is used for fine grinding, mixing, and homogenizing of materials with high precision and efficiency. It is widely applied in laboratories, research institutes, universities, and industries such as ceramics, metallurgy, chemistry, and pharmaceuticals.

Ask Expert

FAQ for Planetary Ball Mill NPBM-400

1: Can the Planetary Ball Mill NPBM-400 operate continuously without interruption?

Yes, the integrated cooling system and stable planetary structure support long-duration use. It is designed for consistent performance over extended operation periods.

2: What safety features does this Planetary Ball Mill NPBM-400 include?

Our Planetary Ball Mill comes with overcurrent and undervoltage protection to prevent electrical faults. The enclosed structure and secure jar locking system further enhance operational safety.

3: How noisy is the Planetary Ball Mill NPBM-400 during use?

The Planetary Ball Mill maintains a low noise level of less than 65dB±5, ensuring a quieter laboratory environment. This makes it suitable for settings where minimal disturbance is important.

4: How long can the grinding run be set for?

You can program the run time from 1 to 9999 minutes, giving you full control over processing duration. Forward and reverse cycles can also be set from 1 to 999 minutes.

5: How often should the Planetary Ball Mill NPBM-400 be cleaned?

It is recommended to clean the grinding jars and internal surfaces after each use to prevent material buildup. Regular cleaning helps maintain performance and avoid cross-contamination between samples.

6: How easy is it to operate the Planetary Ball Mill?

The Planetary Ball Mill features a user-friendly control panel designed for straightforward operation. Its intuitive settings make it accessible for both experienced users and beginners, reducing setup time and errors.

7: Is this Planetary Ball Mill suitable for producing nano-sized powders?

Yes, the powerful impact and friction forces generated by the planetary motion enable ultra-fine grinding down to the nanometer scale. This capability supports advanced research and high-precision applications.

8: Can the jars be easily replaced or cleaned?

The jars are designed for easy removal, replacement, and cleaning to maintain hygiene and prevent cross-contamination. This feature also supports quick turnaround between different grinding tasks.

9: Does the Planetary Ball Mill require regular maintenance?

Regular maintenance is minimal and mainly involves cleaning the jars and checking mechanical components. Keeping the mill clean ensures consistent grinding quality and prolongs the equipment’s lifespan.
